P5,P6,P7,P8 and P10 indoor and outdoor rental led screen /led video display

FOB Price

USD $1,450 - $1,650 / Square Meter

6 Square Meters(Min.Order)

Supply Ability 1000 Square Meter / Square Meters per Month
Port Shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Eachinled	Model Number:	P10 SMD3535
Usage:	Outdoor	Tube Chip Color:	Full Color	Display Function:	Video
Pixels:	10mm	Screen Dimension:	640mmx640mm

Product Description

P5,P6,P7,P8 and P10 indoor and outdoor rental led screen /led video display

Product Description

1. We adopt Japanese die-casting aluminium alloy to produce durable cabinet with anti-seismic and tensile characteristics. which ensures more than 10-year life span.

2. Light weight, slim ,and fashionable design,unit cabinet weight is 15kg,the thickness is 80mm in total.

3. Excellent heat radiating design, heat can be quickly transfered to cabinet.

4. Fast lock enable the user to fast assemble and disassemble each cabinet with 30 seconds. each fast lock can undertake 200kg weight ,when hoisting,it makes the whole screen keep flat.

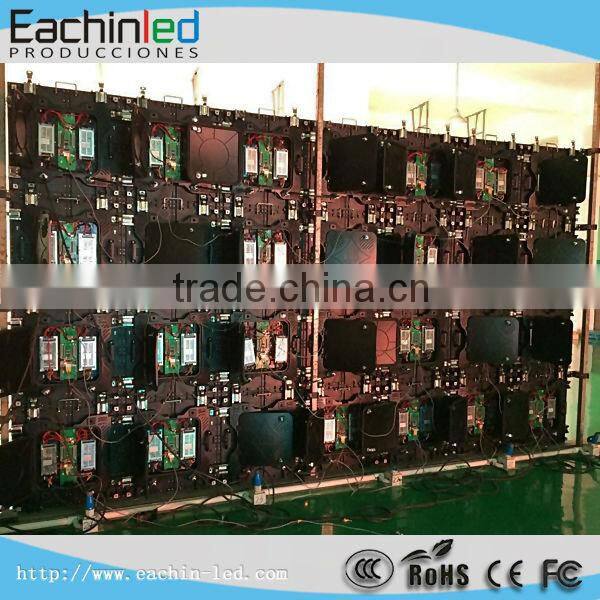

5. Indicator lights on the rear side of cabinet help the user inspect the working state easily.

6. Standard cabinet size L640mm*H640mm*T80mm/T105mm and standard modules for P6.67,P8,P10 ,P10.33 LED displays.

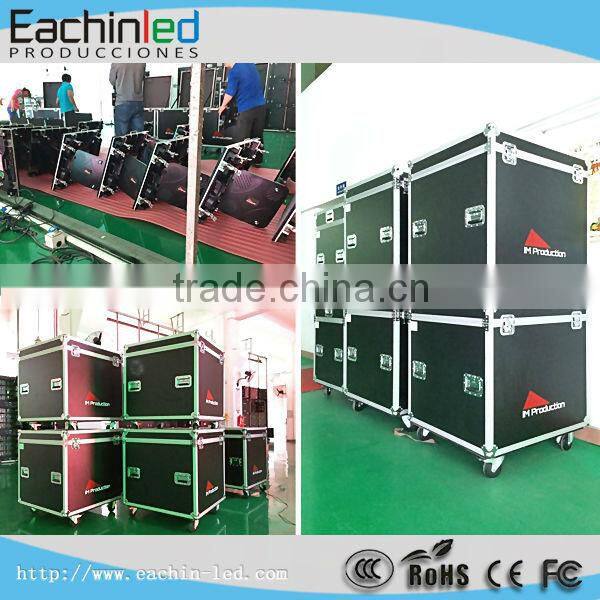

7. Portable flight case, good for taking away,use can put 6 cabinets in one flight case,save cost of freight for users.

8. Waterproof siginal and power connectors,oxidation resistance.

9. Opitional Install modes,hoisting, wall mount,standard structure etc

Technical Specification:

Outdoor Die casting Aluminum 640mm Rental LED Displays
Module	Pitch/mm	P6.67	P8	P10
	Module size/mm	320x320	320x320	320x320
	Density of pixel/(dots/m2)	22,478	15,625	10,000
	Led encapsulation	SMD3535	SMD3535	SMD3535
	Resolution of module	48X48	40X40	32X32
Main	Optimum viewing distance	7-75m	8-75m	10-150m
	View angle / °	140 H,120 V	140 H,120 V	110H,60V
	Max power consumption/W/M2	1100	1000	1000
	Size of cabinet/mm	640X640	640X640	640X640
	Resolution of cabinet	96x96	80x80	64x64
	Weight of cabinet/kg	15	15	15
	Driving method	1/8 scan constant current	1/4 scan constant current	1/4 scan constant current
	Refresh rate Hz/S	≥2000	≥2000	≥2000
	Luminance of white balance	≥5000 nits	≥6000 nits	≥5500 nits
	Operation of Environmental Temperature/°C	below 30 to above 50
	Working vlotage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Defect dot rate	<0.0001

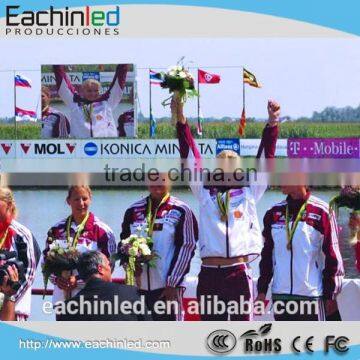

Gallery:
