led video wall panel , led wall price hd led display p5mm/ p5 indoor led screen/ ip65 outdoor wall

FOB Price

USD $1,000 - $1,100 / Square Meter

1 Square Meter(Min.Order)

Supply Ability 5000 Square Meter / Square Meters per Month
Port Shenzhen
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Eachinled Optoelectronics	Model Number:	P4/P5/P6/P8
Usage:	Indoor	Tube Chip Color:	Full Color	Display Function:	Video
Pixels:	Other, P4/P5/P6/P8	Screen Dimension:	4x3m/3x2m/5x3m

Product Description

Specifications

High Brightness
High Resolution
High Density Electronic Full Color Display
Low Power Consumption
Wide Viewing Angle

led video wall panel , led wall price hd led display p5mm/ p5 indoor led screen/ ip65 outdoor wall

Product Description

1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.

2.Thin cabinet: the thickness is only 6.2 CM, the space of the screen is small , and the entire screen will be more beautiful.

3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.

4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.

5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.

[LED Cabinets Pictures]

Hanging The LED Curtain Display Screen]

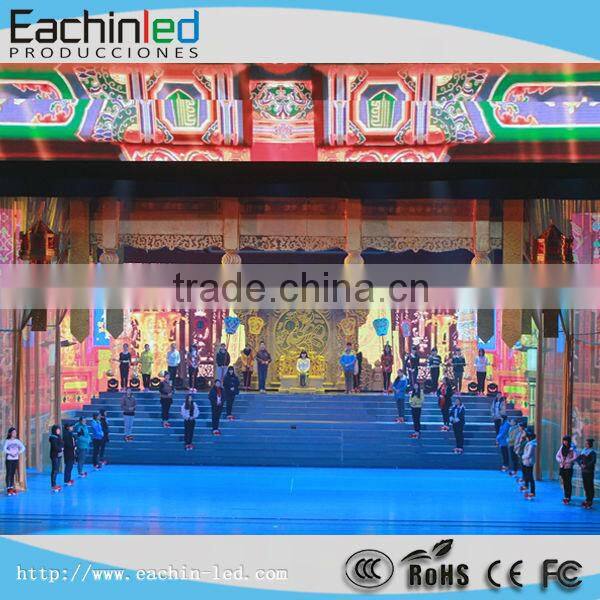

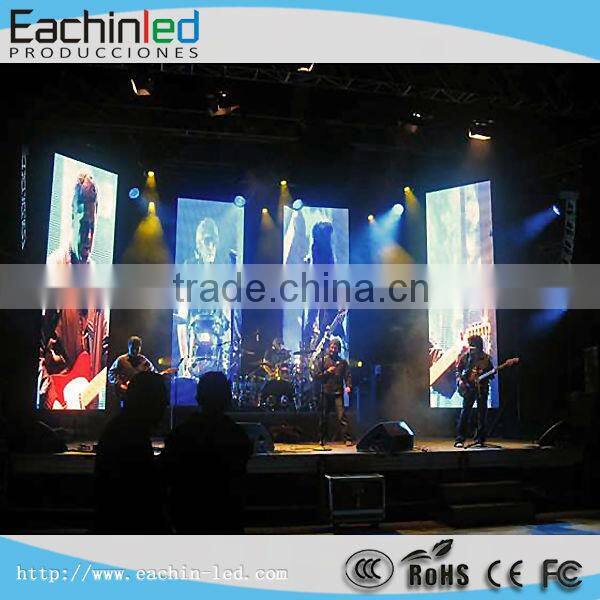

[Project]

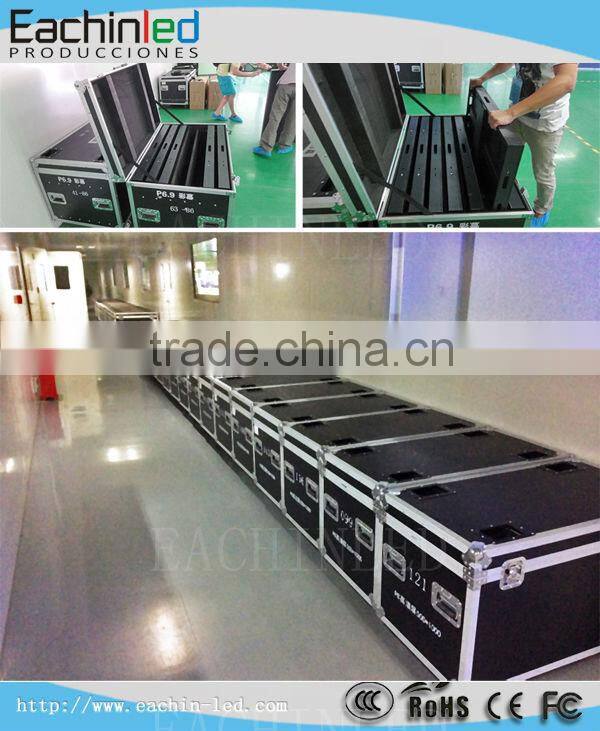

[Package of Flight Case]

[Specification of LED Curtain Display Screen]

Aluminum Rental LED Curtain Display Screen
Module	Pitch/mm	P6.944 (Indoor)	P5.2 (Indoor)	P8.925 (Outdoor)
	Cabinet size/mm	500x1000	500x1000	500x1000
	Density of pixel/(dots/m2)	20,736	36,864	12,544
	Led encapsulation	SMD3528	SMD3528	SMD3535
	Resolution of module	72x144	96x192	56x112
Main	Optimum viewing distance	≥7	≥5	≥8
	View angle / °	140 H,120 V	140 H,120 V	140 H,120 V
	Average power consumption/W/m2	150	120	400
	Max power consumption/W/m2	300	200	800
	Driving method	1/9 scan constant current	1/8 scan constant current	1/4 scan constant current
	Refresh rate Hz/S	≥2500	≥2500	≥2500
	Luminance of white balance	≥1500cd/m2	≥150cd/m2	≥5500cd/m2
	Operation of Environmental Temperature/°C	below 30 to above 50
	Working voltage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),8 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	>5,000h
	Life span	>100,000h
	Functionless dot rate	<0.0001

[Our Services]

1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4)Special discount and protection of sales area provided to our distributor.
5)Warranty: Two Years, a little investment for longer warranty time.
