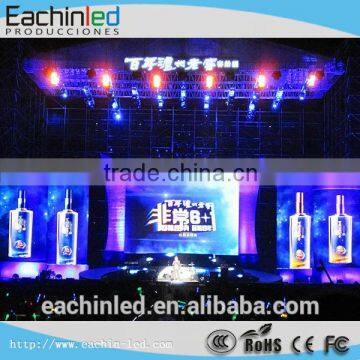

P3,P4,P5,P6,P7.62 Led Video Wall Panel For Indoor Use

Indoor Die casting Aluminum 480mm Rental LED Displays

Module

Pitch/mm

P3.75

P4

P4.8

P5

Module size/mm

240x240

240x240

240x240

240x240

Density of pixel/(dots/m2)

71111

62500

43402

40,000

Pixel composition

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Led encapsulation

SMD2121

SMD2121

SMD3528

SMD3528

Resolution of module

64X64

60X60

50X50

48X48

Main

Optimum viewing distance

2-10m

3-15m

4-16m

5-16m

View angle / °

140H,120V

140H,120V

140H,120V

140H,120V

Max power consumption/W/M2

1,100

1,100

1,000

1,000

Size of cabinet/mm

480X480

480X480

480X480

480X480

Resolution of cabinet

128X128

120X120

100X100

96X96

Weight of cabinet/kg

5

5

5

5

Driving method

1/16 scan constant current

1/15 scan constant current

1/10 scan constant current

1/12 scan constant current

Refresh rate Hz/S

≥1500

≥1500

≥1500

≥1500

Luminance of white balance

≥1500 nits

≥1500 nits

≥1500 nits

≥1500 nits

Operation of Environmental Temperature/°C

below 30  to  above 50

Working vlotage

110-220 VAC/+/- 10%

Grey scale/color

displaying colors≥16.7M(synchronized)

Brightness adjustment

256 levels of each color(manually),100 levels of each color(automatically)

Input signal

RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc

Control system

linsn(sending card,receiving cards and Hubs)

Average of non-failure life

>50,00h

Life span

>100,000h

Defect dot rate

<0.0001
