Specifications
1/CNC + Aluminum cabinets2/Super Slim &Light Weight
3/Convenient and fast installation
4/Easy maintenance
Full Color Video Electronic Outdoor Curtain LED Display P8
Famous Brands Raw Material Selection
1)LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.

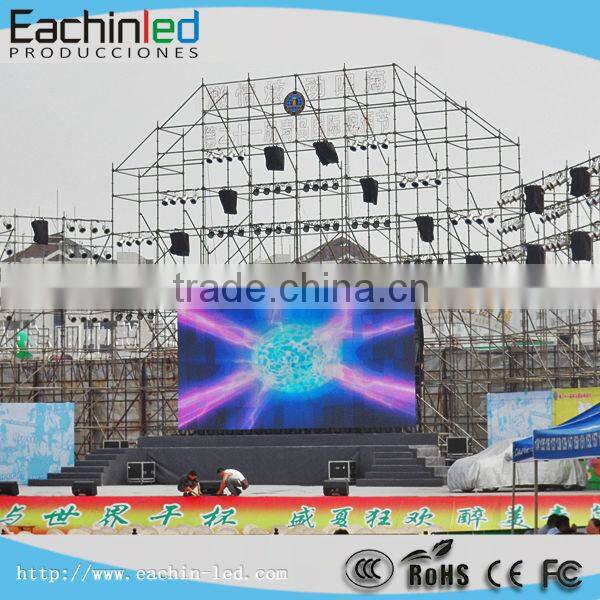

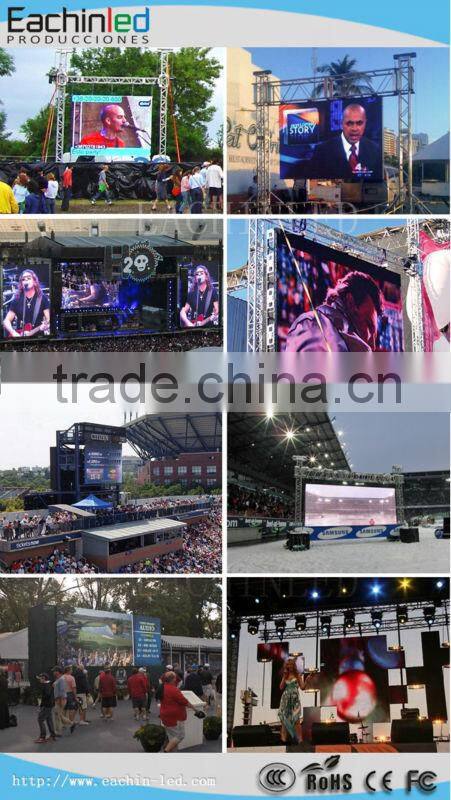

[Photos of Rental LED Screen]

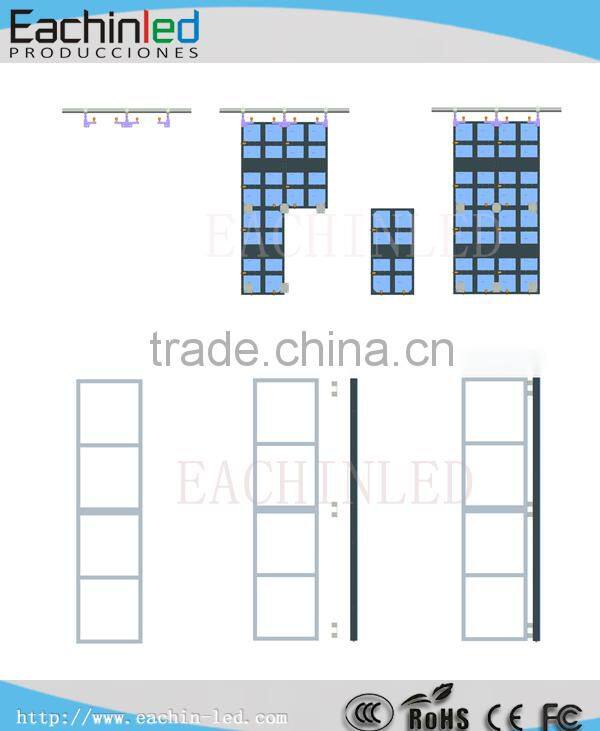

[Hanging The LED Curtain Display Screen]

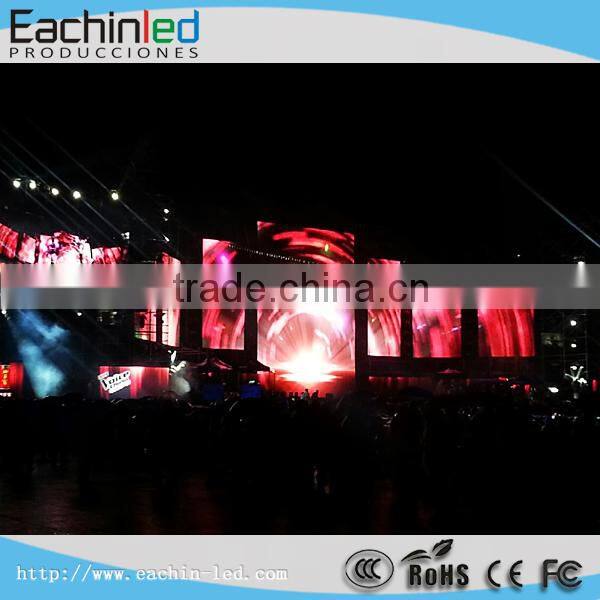

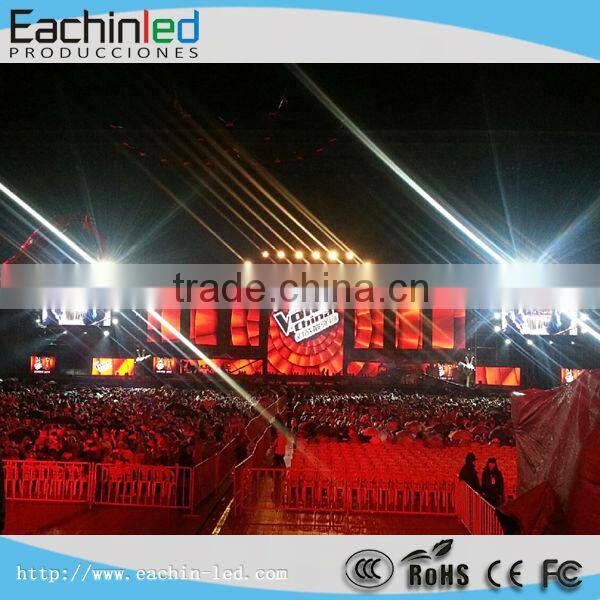

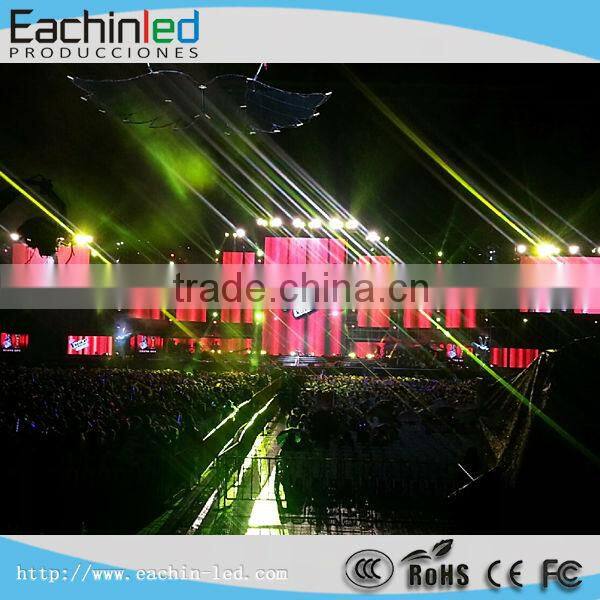

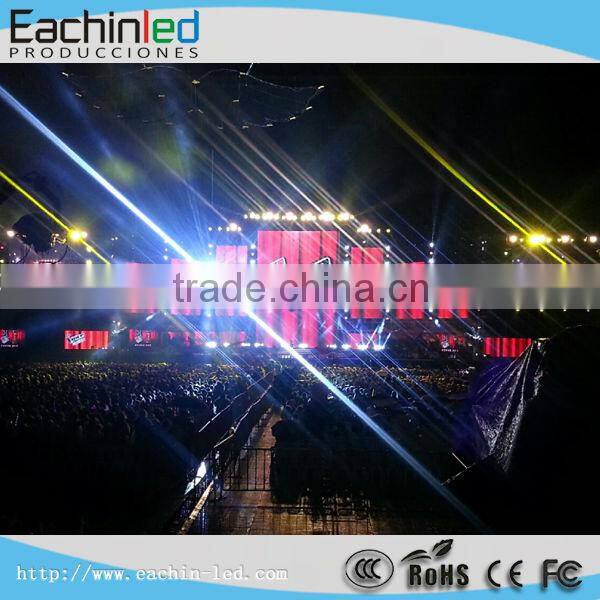

[Photos of Project On Rental Aluminum LED Display Screen]

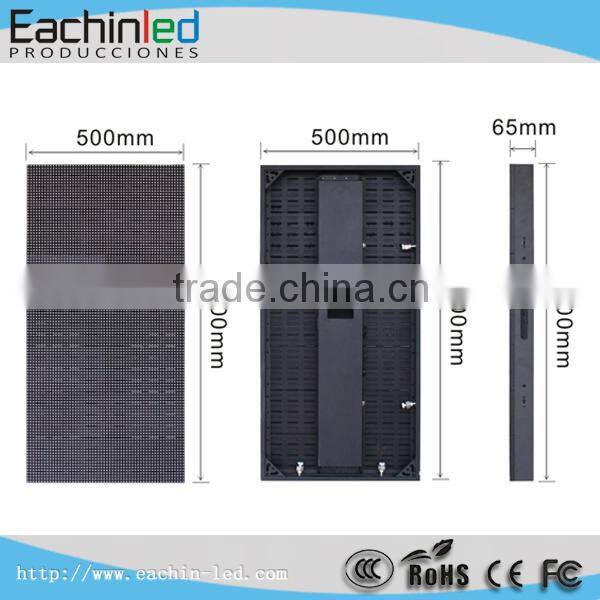

[Specification of LED Video Curtain Display Screen]
Aluminum Rental LED Curtain Display Screen | ||||
Module |
Pitch/mm |
P6.944 (Indoor) |
P5.2 (Indoor) |
P8.925 (Outdoor) |
Cabinet size/mm |
500x1000 |
500x1000 |
500x1000 |
|
Density of pixel/(dots/m2) |
20,736 |
36,864 |
12,544 |
|
Led encapsulation |
SMD3528 |
SMD3528 |
SMD3535 |
|
Resolution of module |
72x144 |
96x192 |
56x112 |
|
Main |
Optimum viewing distance |
≥7 |
≥5 |
≥8 |
View angle / ° |
140 H,120 V |
140 H,120 V |
140 H,120 V |
|
Average power consumption/W/m2 |
150 |
120 |
400 |
|
Max power consumption/W/m2 |
300 |
200 |
800 |
|
Driving method |
1/9 scan constant current |
1/8 scan constant current |
1/4 scan constant current |
|
Refresh rate Hz/S |
≥2500 |
≥2500 |
≥2500 |
|
Luminance of white balance |
≥1500cd/m2 |
≥150cd/m2 |
≥5500cd/m2 |
|
Operation of Environmental Temperature/°C |
below 30 to above 50 |
|||
Working voltage |
110-220 VAC/+/- 10% |
|||
Grey scale/color |
displaying colors≥16.7M(synchronized) |
|||
Brightness adjustment |
256 levels of each color(manually),8 levels of each color(automatically) |
|||
Input signal |
RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
|||
Control system |
linsn(sending card,receiving cards and Hubs) |
|||
Average of non-failure life |
>5,000h |
|||
Life span |
>100,000h |
|||
Functionless dot rate |
<0.0001 |
|||
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 24 months, a little investment for longer warranty time.
