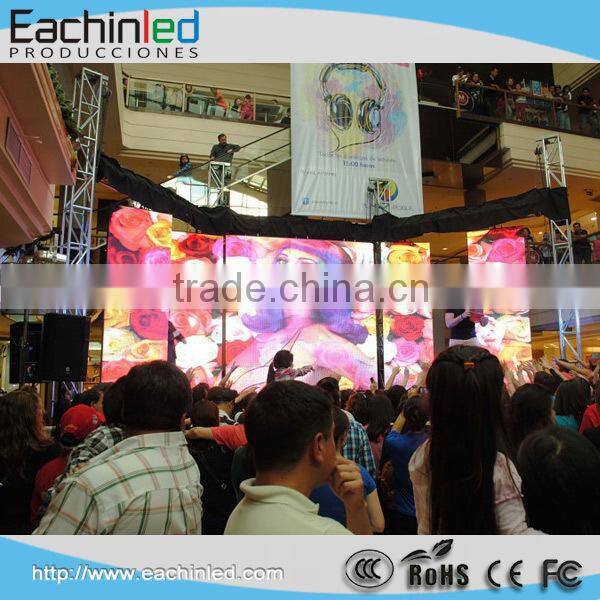

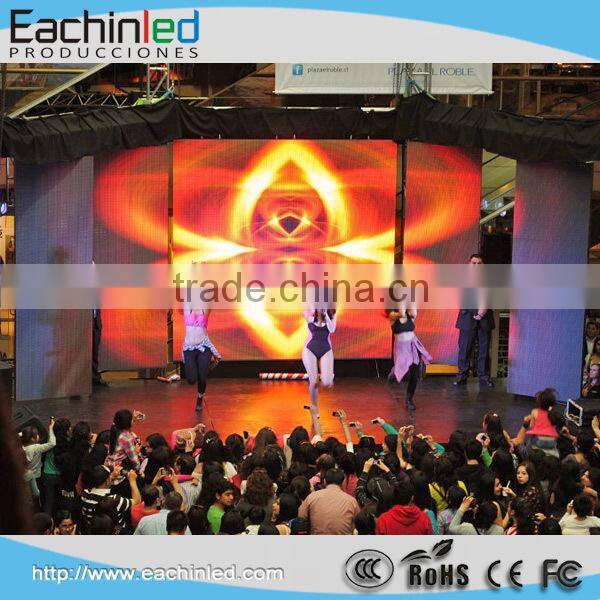

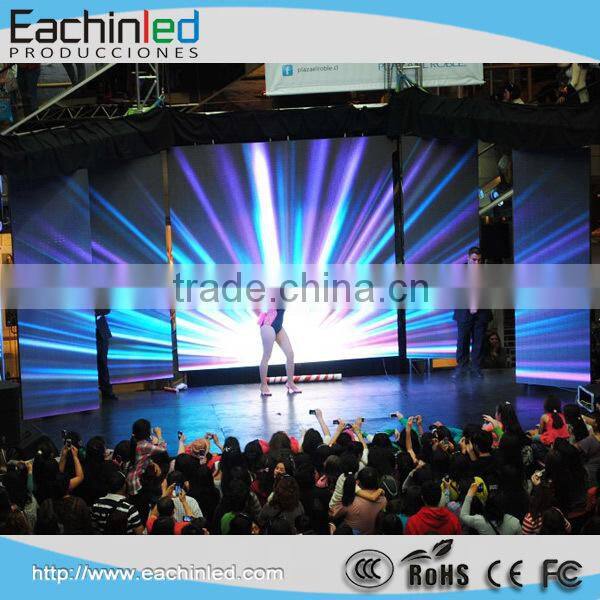

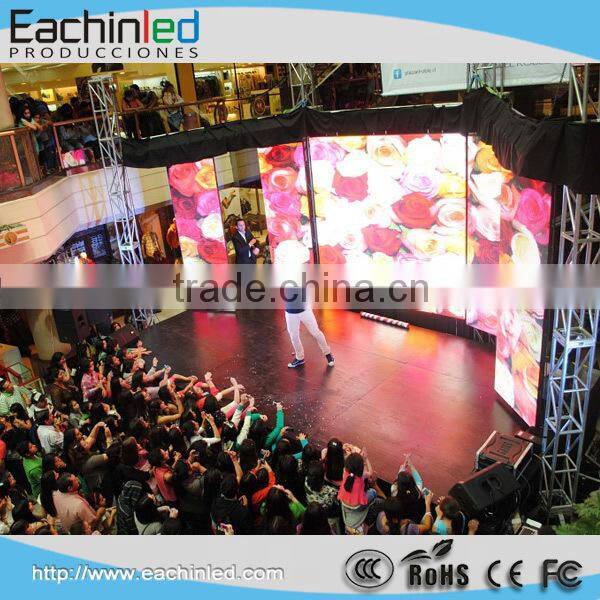

Eachinled Indoor Full Color LED Display

Name: Eachinled Indoor Full Color LED Display
Brand: Eachinled
SKU: 125343757
Availability: InStock

US$ 1,600 - 1,700 MOQ: 6 Square Meters

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Eachinled

Model Number:

P5.2

Shenzhen Eachinled Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Eachinled

Model Number P5.2

Usage Indoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 5.2mm

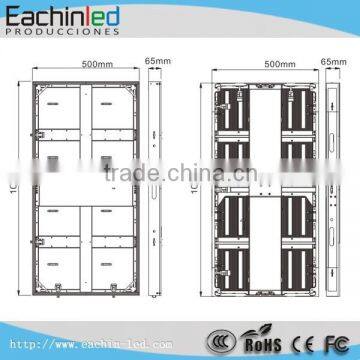

Screen Dimension 500mm*1000mm

Specifications

500mmx1000mm panel size.
Aluminum,very much lightweight.
Easily assembled and transported.

Eachinled Indoor Full Color LED Display

Technical Specification:

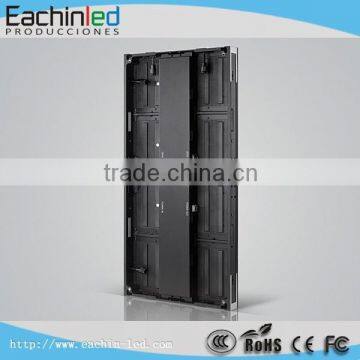

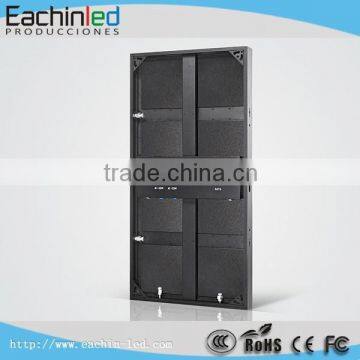

Aluminum Rental LED Curtain Display Screen
Module	Pitch/mm	P6.944 (Indoor)	P5.2 (Indoor)	P8.925 (Outdoor)
	Cabinet size/mm	500x1000	500x1000	500x1000
	Density of pixel/(dots/m2)	20,736	36,864	12,544

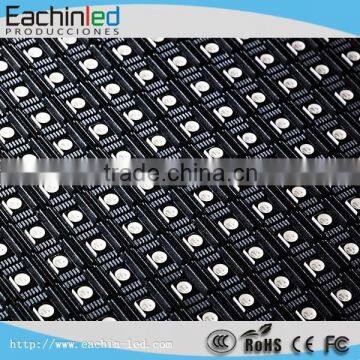

	Led encapsulation	SMD3528	SMD3528	SMD3535
	Resolution of module	72x144	96x192	56x112
Main	Optimum viewing distance	≥7	≥5	≥8
	View angle / °	140 H,120 V	140 H,120 V	140 H,120 V
	Average power consumption/W/m2	150	120	400
	Max power consumption/W/m2	300	200	800
	Driving method	1/9 scan constant current	1/8 scan constant current	1/4 scan constant current
	Refresh rate Hz/S	≥2500	≥2500	≥2500
	Luminance of white balance	≥1500cd/m2	≥150cd/m2	≥5500cd/m2
	Operation of Environmental Temperature/°C	below 30 to above 50
	Working voltage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),8 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	>5,000h
	Life span	>100,000h
	Functionless dot rate	<0.0001
