P5 Led Video Indoor Display Eachin LED

Name: P5 Led Video Indoor Display Eachin LED
Brand: Eachinled
SKU: 125343591

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Eachinled

Model Number:

Shenzhen Eachinled Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Eachinled

Model Number P5

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 5mm

Screen Dimension Customized size, Customize

P5 led video indoor display Eachin LED

Product Description

Technical Specification:

Indoor SMD Fixed Installed Commercial LED Displays
Module	Pitch/mm	P5
	Module size/mm	160x160
	Density of pixel/(dots/m2)	40,000
	Pixel composition	SMD 3 in 1
	Led encapsulation	SMD3528
	Resolution of module	32X32
Main	Optimum viewing distance	6-16m
	View angle / °	140 H,120 V
	Max power consumption/W/M2	1,000
	Size of cabinet/mm	640X640
	Resolution of cabinet	160X128
	Driving method	1/8 scan constant current
	Refresh rate Hz/S	≥600
	Luminance of white balance	≥1500 nits
	Thickness	110mm
	Operation of Environmental Temperature/℃	below 30 to above 50
	Working voltage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	4096 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Functionless dot rate	<0.0001

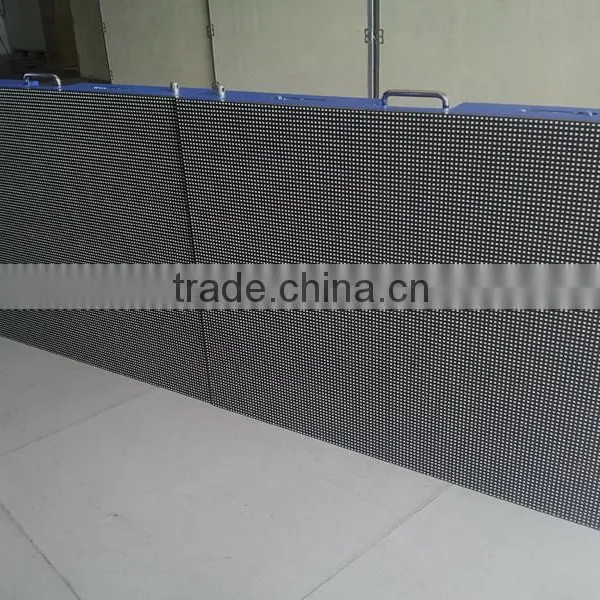

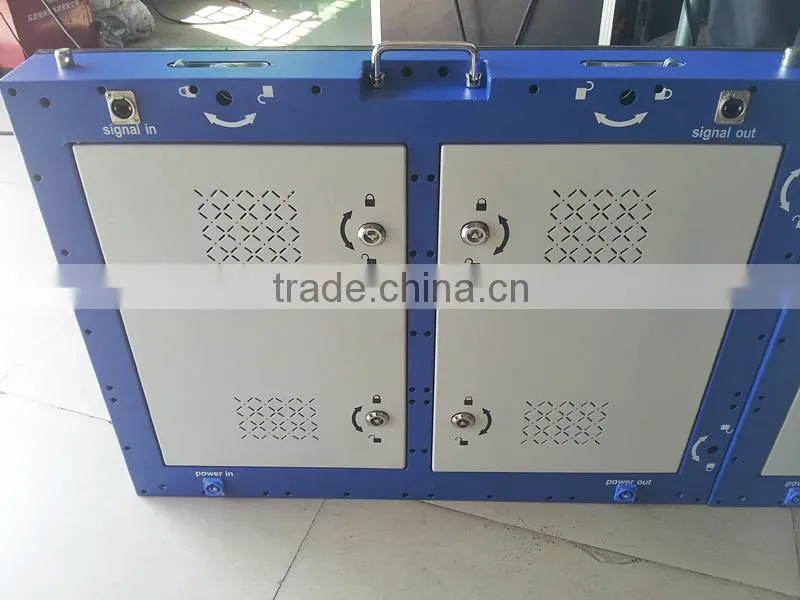

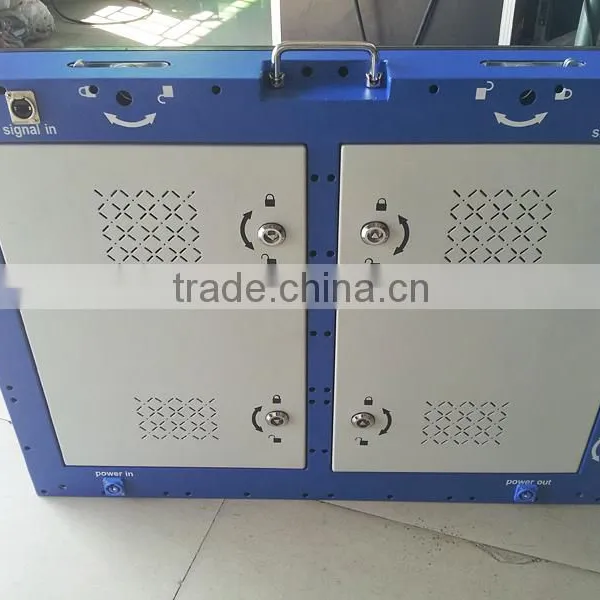

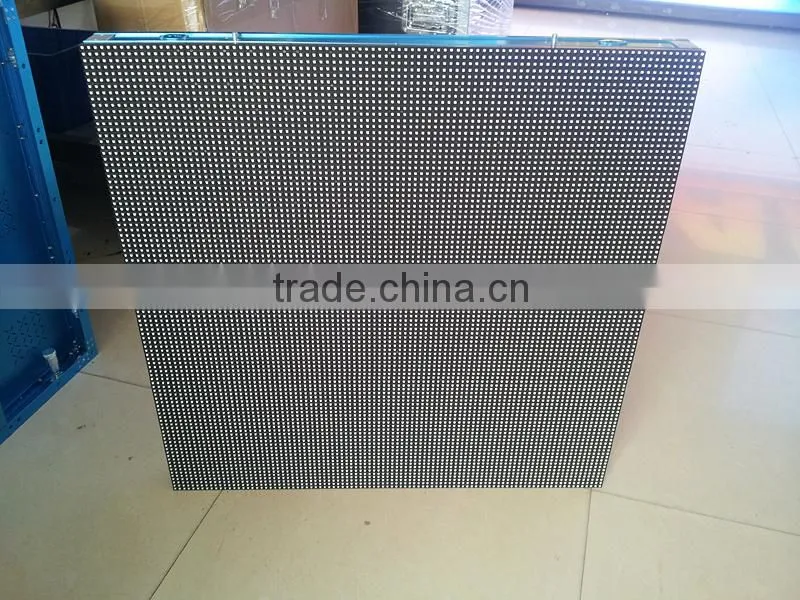

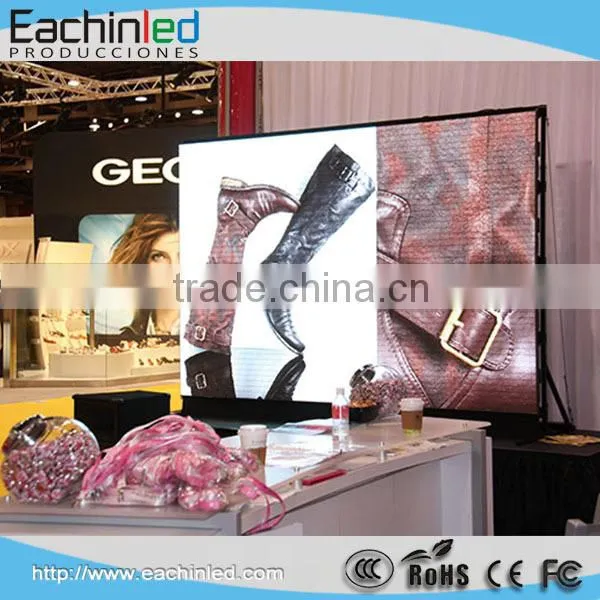

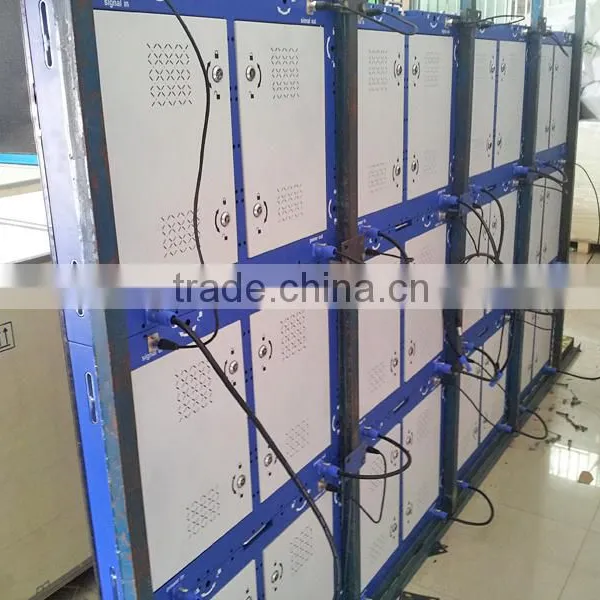

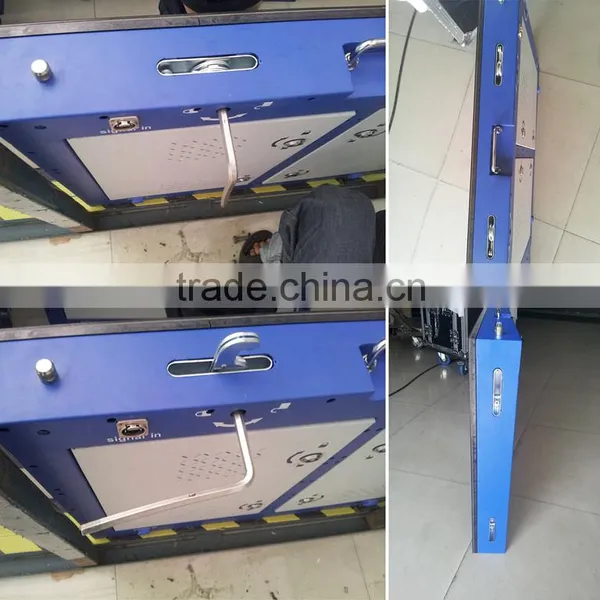

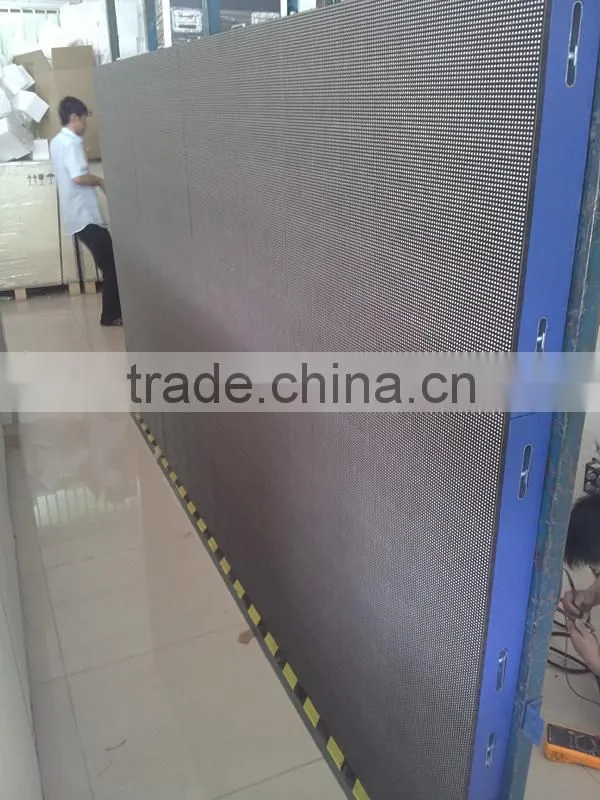

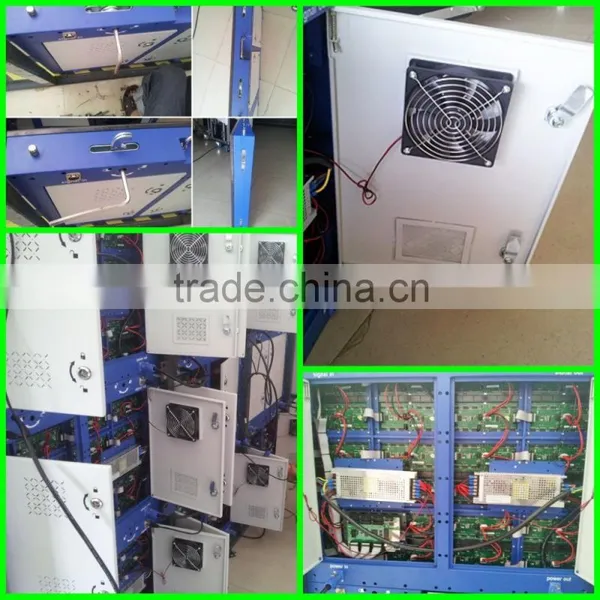

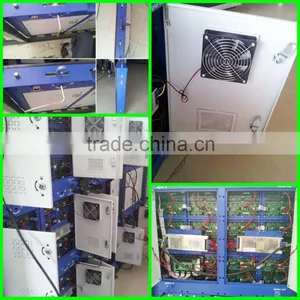

[Photos of Indoor LED Screen P5]

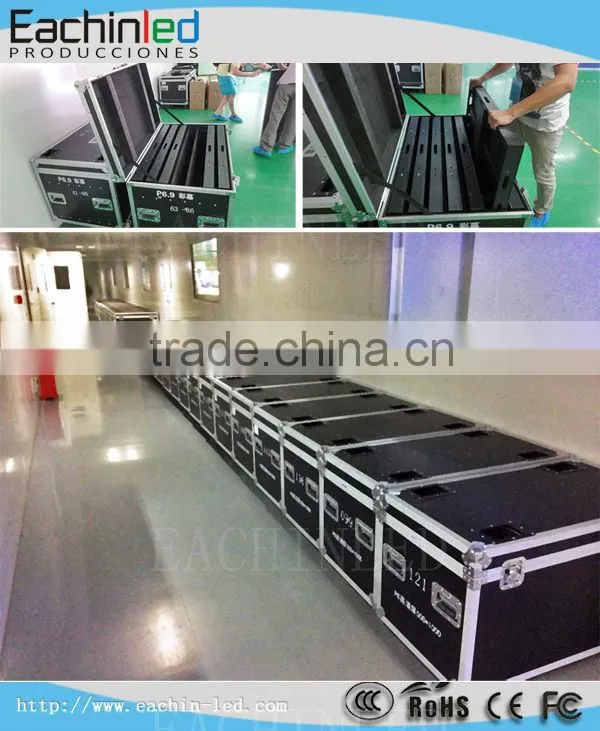

Packaging & Shipping

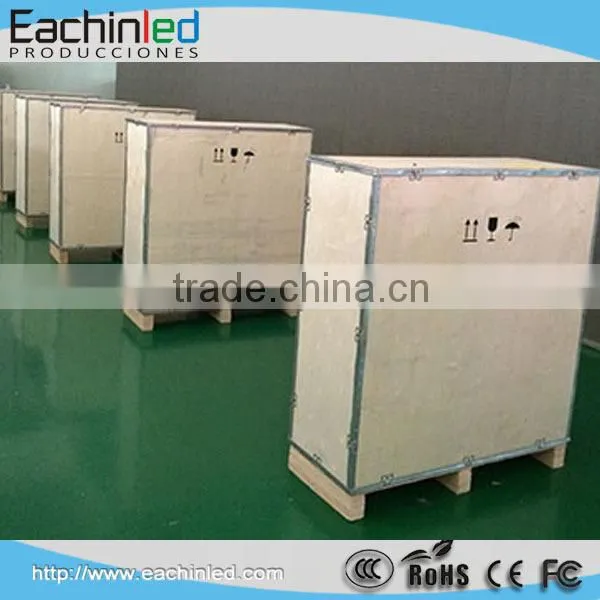

Flight case packaging	Wooden case packaging

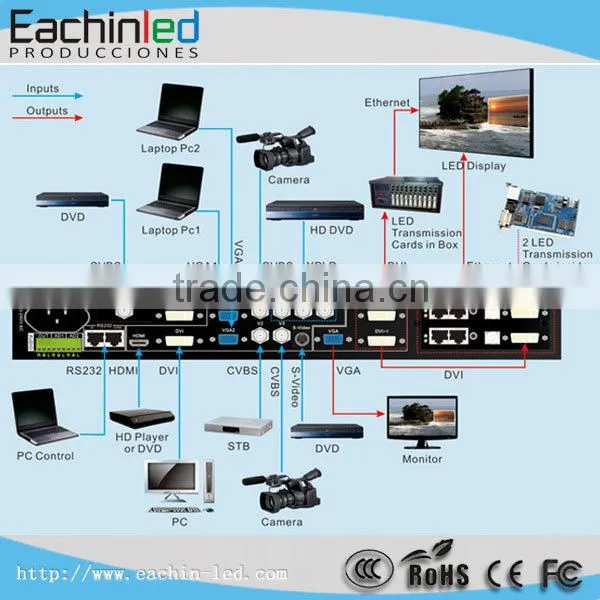

[LED Video Processor For Connect Speaker,HD Camera etc]

[Project of Indoor Staging LED Screen, Fixed Installtion LED Display Boards]

Indoor Advertising, LED Curtain Video Wall	Fashion Show

Conference,Wedding, Birthday Party	Touring Concerts Background

Live Events	Nightclub & Bar, DJ Booth
