Help CenterJohnson Type Continuous Slot Well Screen Stainless Steel Strainer
Related Products
-
Dewatering Well Stainless Steel Drive Point Well Screen Filter SpearUS$ 1 - 11MOQ: 100 Meters -
Filter SpearUS$ 1 - 11MOQ: 100 Meters
-
Stainless Steel Water Well Drive Point Filter SpearUS$ 1 - 11MOQ: 100 Meters
-
Stainless Steel Johnson Screen FilterUS$ 10 - 30MOQ: 100 Meters
-
Stainless Steel Wellpoint Filter System From China Professional ManufacturerUS$ 10 - 30MOQ: 10 Meters
Well Screens

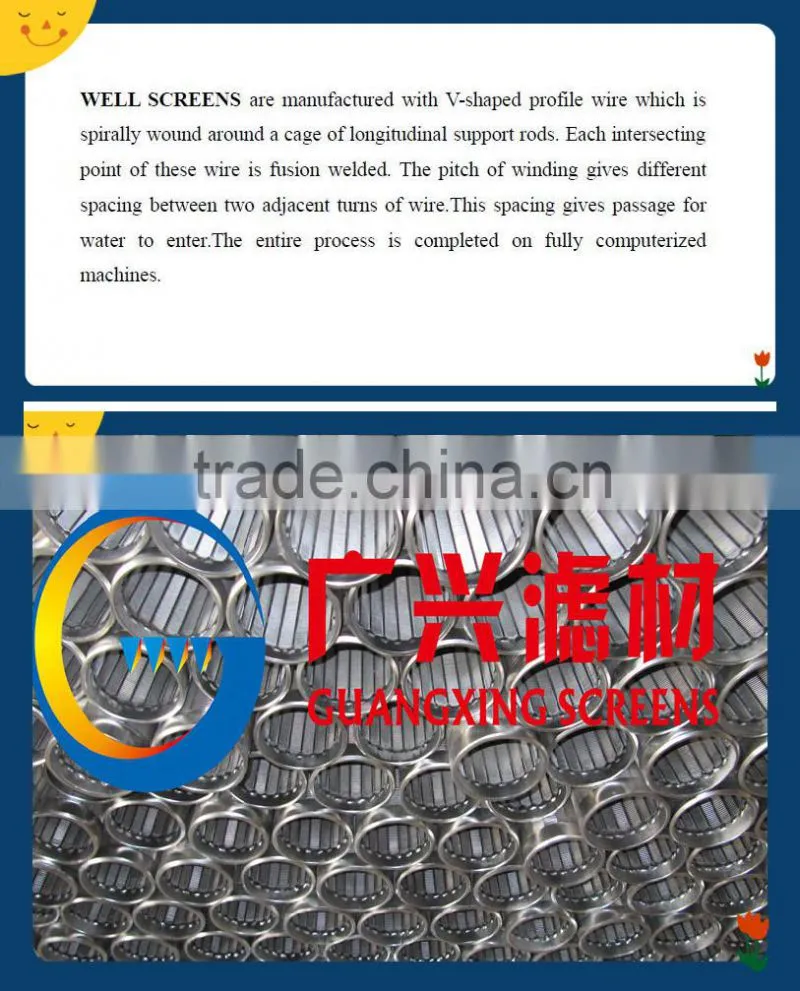

Well screen are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities while at the same time keeps the majority of sand and gravel out of the well.
well screen advantage:
Continuous slot opening significantly increases the available open area, providing greater access to the water-bearing zone .
NON CLOGGING V shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow. Sand grains make only-two-point contact and do not wedge in the screen s inwardly enlarging slot.
LARGE OPEN AREA This allows more water to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.
Slot size (mm):0.10,0.15,0.2,0.25,0.30-3,also achieved upon customer request.
Open area up to 60%.
Material : Low Carbon ,Low Carbon Galvanized steel (LCG),, steel treated with plastic spraying, Stainless Steel ( 304,etc. )
Lengths up to 6 meters.
Diameter ranging from 25 mm to 1300 mm
End Connection :Plain beveled ends for butt welding or threaded.
NOTE: Other wires and rods available upon request
The wedge wire johnson Johnson screen pipe is composed of rib strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure, 0.1mm slot gap, and can be select by client in any way.
Steel Type |
Application |
Stainless steel 304,304L and 316L |
For water wells where corrosive elements limit the effective life of carbon, copper-bearing, and HSLA steels. Stainless steel is particularly resistant to the detrimental effects of hydrogen sulfide, carbon dioxide, and saline water. Removal of incrustation by acidizing, a method not recommended for some other steels, may be accomplished in stainless steel screens |
HSLA |
Corrosion resistant, HSLA (High-Strength Low-Alloy) steel casings and screens are designed and produced for use in water wells where corrosion resistance, strength, and durability are important requirements. Stronger than carbon or copper-bearing steel, HSLA casing and screen are excellent choices for deep, large diameter wells. Although more corrosion resistant than carbon or copper-bearing steel, in wells where severe corrosive elements are present, an analysis must be made before selecting this material over stainless steel |
Copper-Bearing |
For use in water wells where resistance to corrosion is an important requirement. Although not as corrosion resistant as HSLA or stainless steel, copper-bearing casings and screens have proven to last longer than other carbon steel products. |
Low Carbon |
When economy as well as strength and efficiency are important requirements. |
Advantages :
When compared to conventional slotted pipe, johnson screen have superior open area due to their continuous slot openings. The benefits of which will :
•Reduce energy consumption and increase oil flow.
•Reduce erosion of entry surfaces and increase well life.
•Allow a uniform and efficient well development.
•Reduce significantly potential pump damage and subsequent maintenance costs.

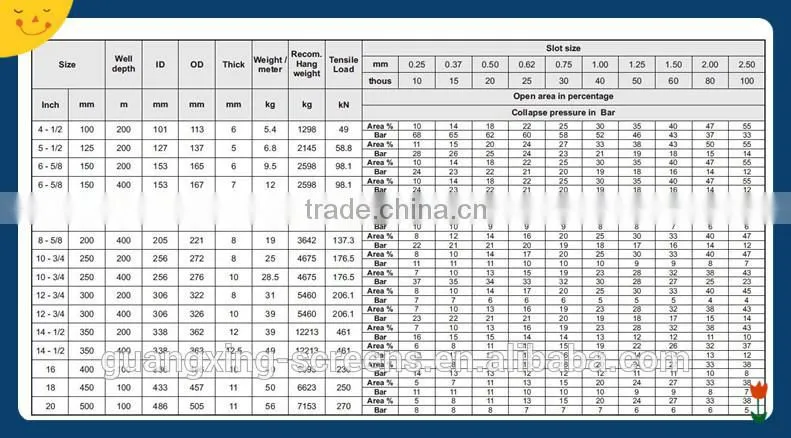

Conventional specification:
SIZE |
O.D(MM) |
SLOT(INCH) |
lENGTH(M) |
DIAMETER |
wRAP(MM) |
ROOD(MM) |
4 |
114.3 |
0.02 |
3 |
304/316 |
2.2*3 |
3.8MM/22 |
4 |
114.3 |
0.04 |
3 |
304/316 |
2.3*3 |
3.8MM/22 |
6 |
168.3 |
0.04 |
3 |
304/316 |
2.3*3.5 |
3.8MM/32 |
8 |
219.1 |
0.01 |
3 |
304/316 |
3.0*5 |
3.8MM/48 |
10 |
273.1 |
0.02 |
3 |
304/316 |
3.0*5.0 |
3.8MM/50 |
10 |
273.1 |
0.04 |
3 |
304/316 |
3.0*5.0 |
3.8MM/50 |
Other Specification:
Material |
Stainless steel 302/304/304L/316/316L low carbon galvanized steel |
Length(mm) |
100MM-5850MM |
Slot(mm) |
0.05-30MM,the slot can be made by customer's request |
End connection |
Welded ring or thread male/female coupling |
Filter type |
from outside to inside ot from inside to outside |
Market / Industry
Water and waste water
Pulp and paper
Chemical
Petrochemical
Water supply
Mineral and aggregate processing
Plastics extrusion
Machine coolant filtration
Architectural applications
Hengshui guangxing screens co.,ltd founded in 2010,is a major manufacturer and supplier of vee wire welded products for professional end-users in the world.It is equipped with modern machines and latest technology for the manufacture of high quality welded wedge wire screens in various shapes and size .We have been recongnized for our excellence in customer solutions creativity flexibility and no nonsense mentality coupled with short delivery time and competitive price.We keep the quality according to the ISO 9001:2008 standard to let the customers satisfy.High quality and competitive price and delivering on time is our aim.We believe that we will contribute to world prosperity by establishing bridges between our country and the global world.If you have interested in our wedge wire prodducts,please contact us.
