Help CenterCarbon Steel Bridge Slot Hole Perforation Screen
Related Products
-
Carbon Steel Bridge Sand Control Slot Screens From FactoryUS$ 15 - 35MOQ: 10 Meters -
Bridge Slot Hole Perforation ScreenUS$ 15 - 35MOQ: 10 Meters
-
Bridge Slotted Screen , Grade 304 AISI , Lateral Slot Opening 1- 1.5 Mm, Open Area Not Less Than 12 %, Collapse Pressure Not leUS$ 15 - 35MOQ: 10 Meters
-
Stainless Steel Bridge Slot ScreenUS$ 15 - 35MOQ: 10 Meters
-
Bridge Slot Water Well ScreenUS$ 15 - 35MOQ: 10 Meters

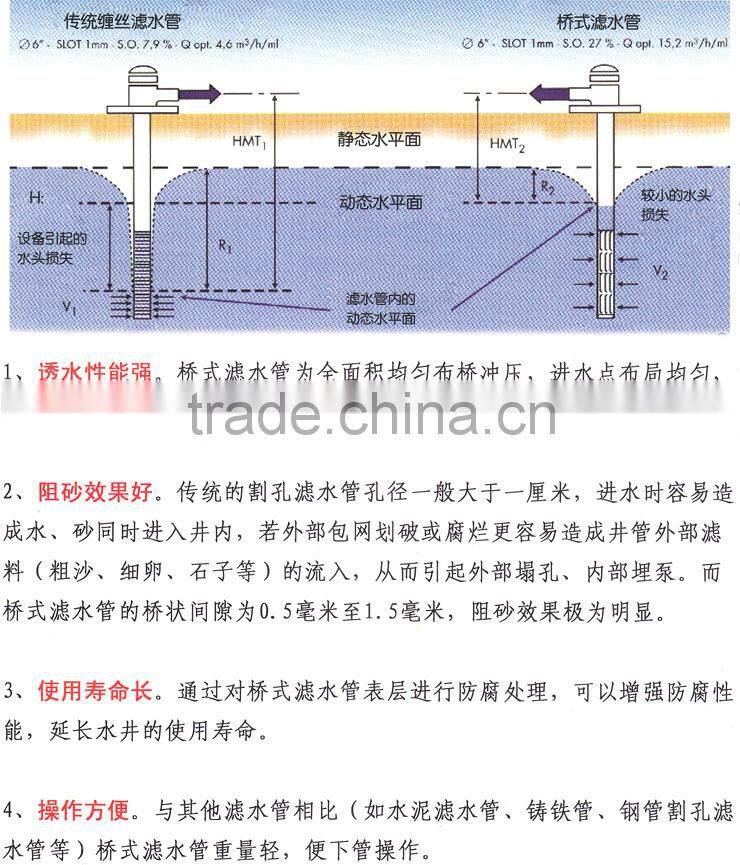

Bridge slotted water well screens, a type of well screen with vertical slots thatare formed by protruding "bridges" that are pushed outward from the well casing.The slots of this kind of screen are punched precisely in a flat sheet which then is rolled into a pipe. The sand and gravel can't easily block the slot because of the special bridge style design, and Bridge Slot Screens has great mechanical strength and water entering capacity. Meanwhile, Bridge Slot Screens use steel punching technology and is rolled in many ways, so they are light, cheap and easily operating.
The sand and gravel cannot easily block the slot because of the special bridge design. It has great mechanical strength and water entering capacity. Meanwhile, it use steel punching technology and rolled in many ways, so it is light, cheap and easily operating.
Stainless steel well screen pipes are used for oil and water exploiting.

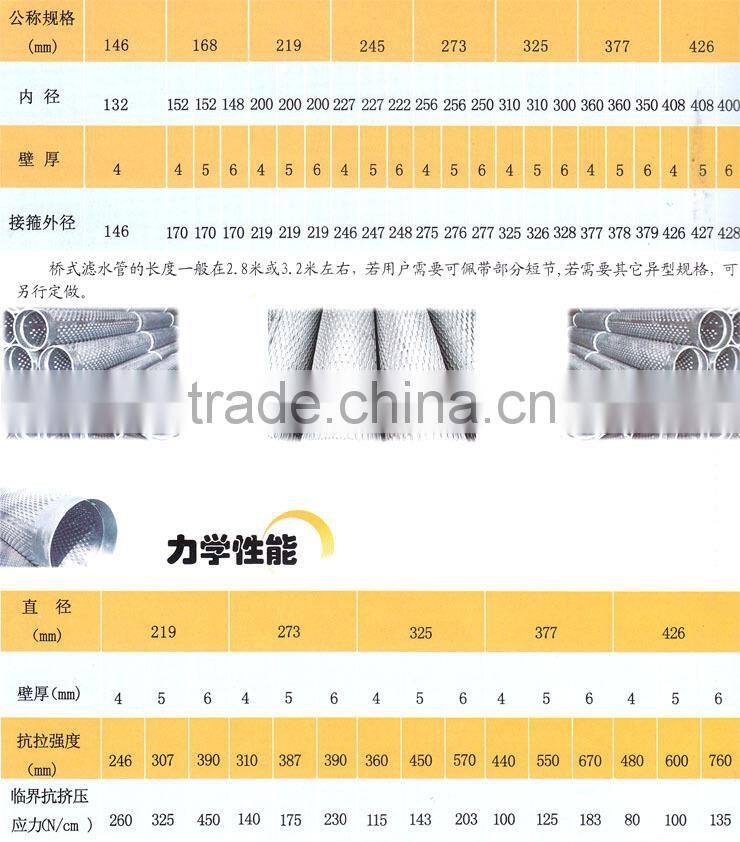

Technical parameters
|
Diameter (mm) |
146 |
159 |
219 |
273 |
325 |
377 |
426 |
529 |
|||||||||||||
ID |
130 |
140 |
138 |
200 |
198 |
254 |
250 |
246 |
305 |
300 |
297 |
357 |
350 |
346 |
406 |
400 |
398 |
502 |
500 |
498 |
|
Thickness |
5 |
5 |
6 |
5 |
6 |
5 |
6 |
8 |
5 |
6 |
8 |
5 |
6 |
8 |
5 |
6 |
8 |
6 |
7 |
8 |
|
Coupling OD |
146 |
160 |
162 |
220 |
226 |
274 |
278 |
278 |
325 |
328 |
329 |
377 |
378 |
379 |
426 |
428 |
432 |
529 |
530 |
531 |
|
Advantages
1.Easily for installation and replacement
2.Different material according to environmental conditions
3.High strength through resistance to twisting, compressive, and tensile forces
4.A smooth bore that does not impede the pass
5.Low to medium flow rates
Packaging & Shipping
Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with
Name & identification mark
Batch number
Date of manufacture
Material
Collapse pressure & Tensile strength
Hengshui guangxing screens co.,ltd founded in 2010,is a major manufacturer and supplier of vee wire welded products for professional end-users in the world.It is equipped with modern machines and latest technology for the manufacture of high quality welded wedge wire screens in various shapes and size .We have been recongnized for our excellence in customer solutions creativity flexibility and no nonsense mentality coupled with short delivery time and competitive price.We keep the quality according to the ISO 9001:2008 standard to let the customers satisfy.High quality and competitive price and delivering on time is our aim.We believe that we will contribute to world prosperity by establishing bridges between our country and the global world.If you have interested in our wedge wire prodducts,please contact us.
