Specifications
* Weatherproof* IR Irradiation Distance:30ft
* Linux Based OS
* IR Remote Control
* One Year Warranty
ZMODO 8CH Day/ Night IR Security Camera Home Surveillance DVR System

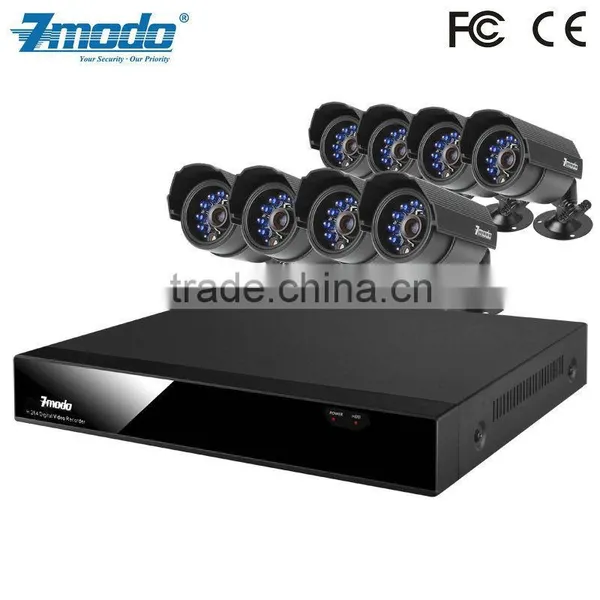

This 8 camera security system includes an 8CH H.264 DVR and 8 indoor/outdoor weatherproof night vision cameras and everything you need to monitor your properties.
Plug-N-Play

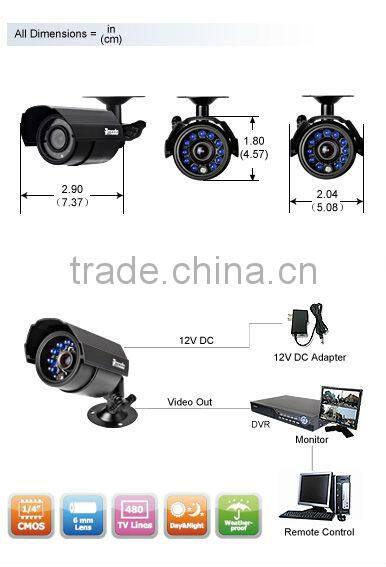

Hook a common PC monitor via VGA port, or a TV via AV port. It’s ready to Plug-N-Play. (Note: AV cable & VGA cable is not included.)
Smart Storage Management
The system is so reliable that it does not stop recording even when hard drive is full. The storage management system allows the system to overwrite starting from oldest record.
View Online or From Smartphone
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from yourAndroid™ , Symbian™ , Windows Mobile® , ipad®ios &iPhone® .
Multiple Recording Modes
The DVR has 24/7 continuous recording, time-schedule recording, or motion-triggered recording. To record Real-Timely or to save your hard drive space in Motion-Triggered recording, it’s up to you.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
Easy USB Backup
Built-in USB port provides an easy option to transfer your files to a PC, backup, or send to others.

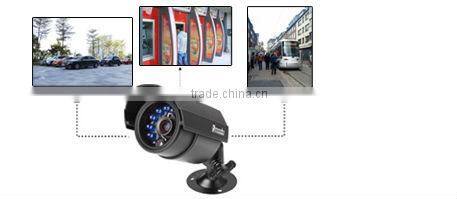

Professional Grade Weatherproof Cameras
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The best surveillance cameras can be mounted in virtually any indoor or outdoor setting.
They Work Day & Night
The cameras deliver Color video in the daytime and Black & White Video at night. It can capture video in night vision mode up to 30ft.
| Model | ZMD-DD-SAN8 - 8CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 8-Channel Input /BNC 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input /BNC 1-Channel Output |
| Display Frame Rate | NTSC: 240fps@D1/ PAL: 200fps@D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF/PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704*480), HD1(704*240), CIF(352*240)/PAL: D1(704*576), HD1(704*288), CIF(352*288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Network Function | Support Live View with IE & Mobile Phone |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| USB | USB Backup/USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1200mA |
| Dimension | 11.4 "(W) x 9.1" (D) x 1.65"(H) |
| Model | CM-C21606BK- Color IR Bullet Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 6mm |
| Number of IR LEDs | 11 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Power | 12V DC |
| Dimensions (W x D x H) | 2.9" x 2" x 1.8" |
| Gross Weight | 0.38 lbs |
| Material | Metal Shell |
