Specifications
* Weahterproof* H.264
* Up to 65ft IR night vision w/24 LEDs,0 Lux
* Linux Based OS
* IR Remote Control

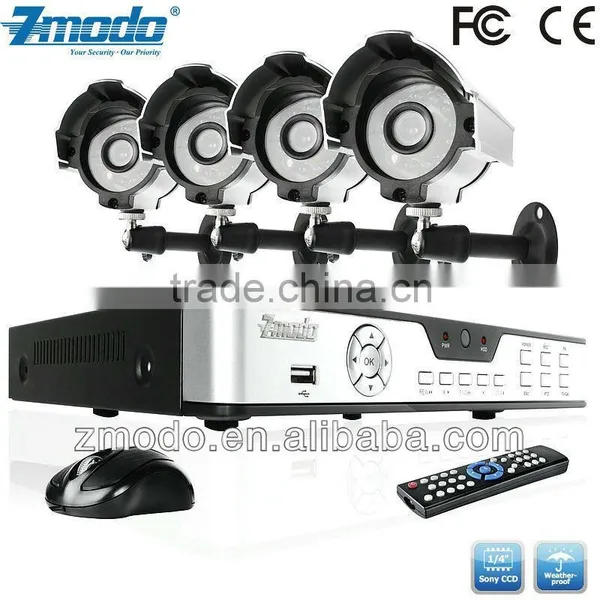

8CH H.264 DVR Security System with 4 Sony CCD Indoor/Outdoor Night Vision Surveillance Cameras
This 8 channel video surveillance system delivers everything you need to defend your home or business, safeguard your loved ones and deter intruders. It allows you to have peace of mind at your home or business whenever and wherever you are. It provides the basic surveillance function at an affordable price for your security surveillance needs.
Sony Imaging Chip Inside, Crisp & Clear Image with True Color
High quality 1/4" Sony CCD image sensor provides a crisp, clear and consistent image utilizing 420 TV lines of resolution. The camera delivers true color image with less color variation.
Access from Anywhere from PC or Smartphone
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from your Android™, iPhone®, iPad®, Symbian™, Windows Mobile®, or BlackBerry®.
Flexible Operation
The DVR in the kit has a number of recording modes to suit your needs. You can program it to record at certain times, record continuously, or set it to start recording when motion is detected or using the alarm mode. It can also be used with different capacity hard drives and types of cameras, so you can build the perfect surveillance system for your particular requirements.
The DVR that Multi-Tasks
Thanks to Pentaplex, this DVR can perform up to five things at once. You can playback, backup, view live images and allow network access (e.g. for a Smartphone) while the DVR continues to record.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
Easy USB Backup
Built-in USB port provides an easy option to transfer your files to a PC, backup, or send to others.
24-Hour Surveillance – True Night Vision Technology
24 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 20 meters (65feet) away, and deactivate once lighting conditions are brighter.
| Model | ZMD-DD-SBN8 - 8CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 8-Channel Input / BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network Function | Support Live View with IE & Mobile Phone |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| USB | USB Backup/USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1200mA |
| Dimension | 12.8 "(W) x 10.4" (D) x 3.9"(H) |

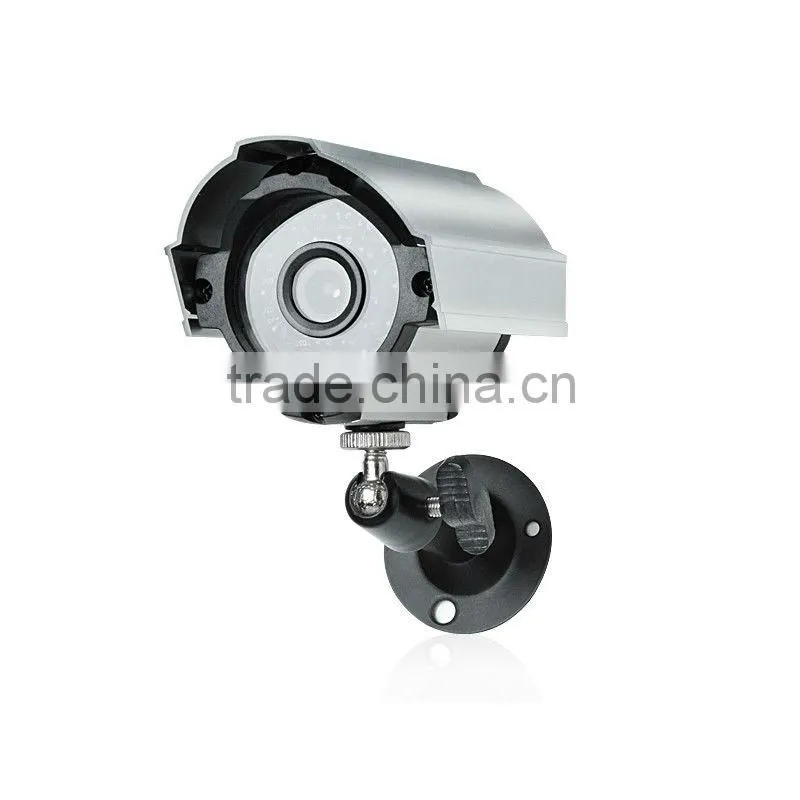

| Model | ZMD-CNR-BCS23NM (CM-N12613SV)-Bullet Camera |
| Image Sensor | 1/4"Sony Color CCD |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Horizontal Resolution | 420 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 24 PCS |
| Infrared Illumination (Night Vision) | up to 65ft (15~20m) |
| Minimum Illumination | 0 Lux (IR On) |
| S/N Ratio | ≥ 48dB |
| Video Output | 1.0Vp-p, 75ohms (BNC) |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Weatherproof | Yes |
| Power | 12V DC |
| Dimensions (W x D x H) | 3.7" x 2.6" x 2.5 " |
| Gross Weight | 0.5lbs |
| Material | Metal Shell |
