Specifications
* 1/4" Sony Color CCD* H.264
* up to 65ft with 24 LEDs
* Weatherproof
* One Year Warranty

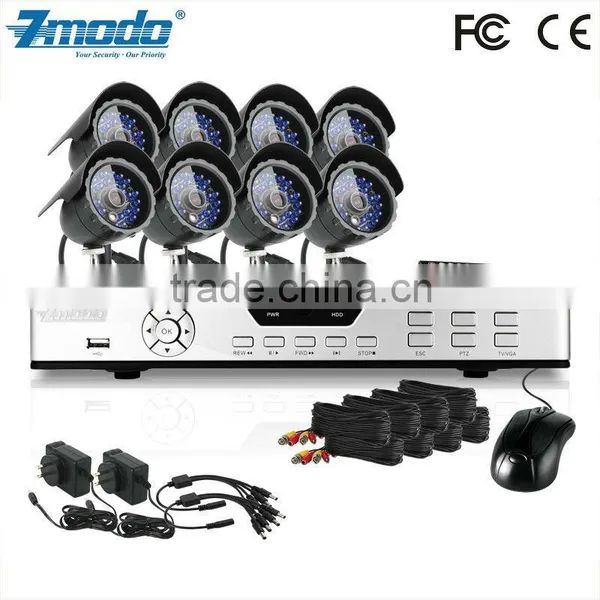

Zmodo 8 CH H.264 DVR with 8 SONY CCD 65ft Night Vision Outdoor Cameras
This 8 camera video surveillance system provides everything you will need to protect your home or business, safeguard your loved ones, and deter intruders. The system includes a state-of-the-art 8 channel H.264 DVR with 8 Sony CCD day/night cameras, and allows for the simultaneous viewing and recording of 8 video streams locally, with remote streaming capability over the Internet or to a supported Smartphone. This is an affordable security solution for your home or small business.
Sony Imaging Chip Inside, Crisp & Clear Image with True Color
High quality 1/4" Sony CCD image sensor provides a crisp, clear and consistent image utilizing 420 TV lines of resolution. The camera delivers true color image with no color variation.
24 LEDs, Up to 65ft IR Night Vision
24 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 20 meters (65feet) away, and deactivate once lighting conditions are brighter.
Remote/Mobile Viewing from your Smart Phone or Any Computer
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from your Android™, iPhone®, iPad®, Symbian™, Windows Mobile®, or BlackBerry®.
Advanced Motion Detection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Scheduled Recording Options
Choose the specific days of the week and hours of the day you would like your DVR to record or not record. Each individual camera can be set with its own personalized schedule.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
Easy USB Backup
Built-in USB port provides an easy option to transfer your files to a PC, backup, or send to others.
Multi-Tasking Functionality
The multi-tasking feature allows up to five functions to occur on the system at one time: record video, watch live video, playback video while also monitoring and managing the system remotely, and also backing up files.

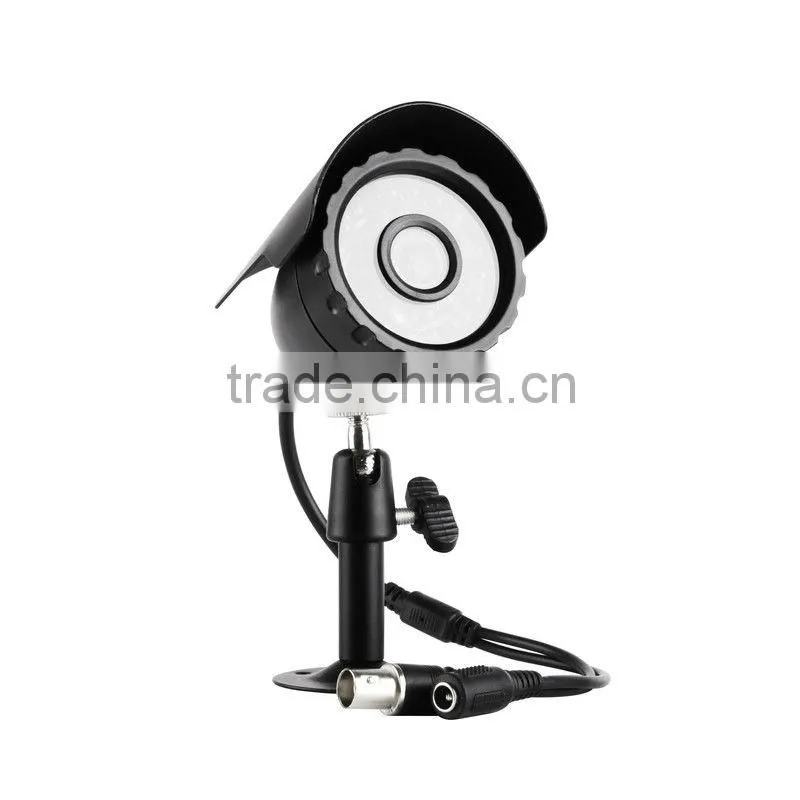

Metal Shell for Both Indoor & Outdoor Use – Weatherproof
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting.
| Model | ZMD-DD-SBN8 - 8CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 8-Channel Input / BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network Function | Support Live View with IE & Mobile Phone |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| USB | USB Backup/USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1200mA |
| Dimension | 12.8 "(W) x 10.4" (D) x 3.9"(H) |

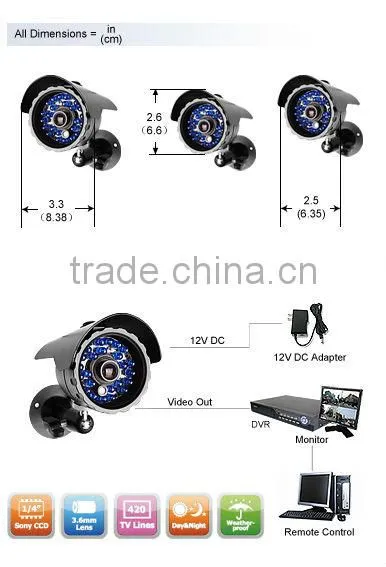

| Model | ZMD-CNR-BBB23NM-Bullet Camera |
| Image Sensor | 1/4" Sony Color CCD |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Horizontal Resolution | 420 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 24 PCS |
| Infrared Illumination (Night Vision) | up to 65ft (15~20m) |
| Minimum Illumination | 0 Lux (IR On) |
| S/N Ratio | ≥ 48dB |
| Video Output | 1.0Vp-p, 75ohms (BNC) |
| Weatherproof | Yes |
| Operating Temperature | --25°F~122°F / -32°C ~50°C |
| Power | 12V DC |
| Dimensions (W x D x H) | 3.3" x 2.5" x 2.6" |
| Gross Weight | 0.33 lbs |
| Material | Metal Shell |
