Zmodo 8CH DVR Sony CCD IR Outdoor Camera CCTV Products

Specifications

* 1/4" Sony Color CCD
* H.264
* up to 65ft with 24 LEDs
* Weatherproof
* One Year Warranty

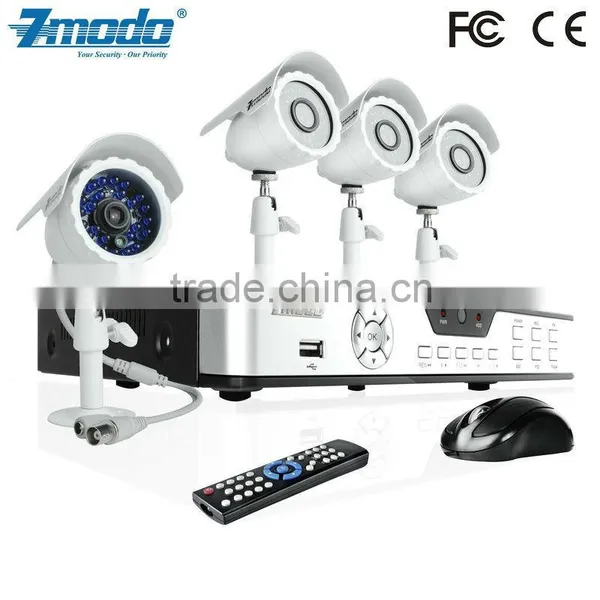

Zmodo 8 CH H.264 DVR with 4 Sony CCD 420TVL 65ft Day/Night Weatherproof Cameras

This surveillance camera monitoring system provides everything you will need to protect your home or business, safeguard your loved ones, and deter intruders. The system includes a state-of-the-art 8 channel H.264 DVR with 4 Sony CCD day/night cameras and 500GB hard drive, and allows for the simultaneous viewing and recording of 4 video streams locally, with remote streaming capability over the Internet or to a supported Smartphone. This is an affordable security solution for your home or small business.



Sony Imaging Chip Inside, Crisp & Clear Image with True Color
High quality 1/4" Sony CCD image sensor provides a crisp, clear and consistent image utilizing 420 TV lines of resolution. The camera delivers true color image with no color variation.



Access from Anywhere in the World
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from your Android™, iPhone®, iPad®, Symbian™, Windows Mobile®, or BlackBerry®.



Multiple Recording Modes
Choose 24/7 continuous recording, schedule specific recording times by hour or day, or set motion detection recording to help catch only the important information to save on hard drive space.





Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.

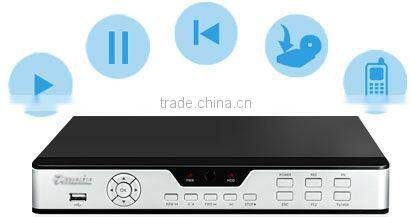

The DVR that Multi-Tasks
Thanks to Pentaplex, this DVR can perform up to five things at once. You can playback, backup, view live images and allow network access (e.g. for a Smartphone) while the DVR continues to record.



Easy USB Backup
A Built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive.



View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable. This gives you more connection options while viewing activity captured by your cameras.





Professional Grade Weatherproof Cameras
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting.



View at Night up to 65ft
24 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 20 meters (65feet) away, and deactivate once lighting conditions are brighter.



Model	ZMD-DD-SBN8 - 8CH H.264 StandAlone DVR
Video Compression	H.264
Video System	NTSC / PAL
Operation System	Linux Based
Video Input / Output	BNC 8-Channel Input / BNC1-Channel Output
Other Video Output	VGA
Audio Input / Output	RCA 4-Channel Input / BNC 1-Channel Output
Display Frame Rate	NTSC: 240 fps @ D1 / PAL: 200 fps @ D1
Display Resolution	NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576)
Recording Frame Rate	NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF
Record Resolution	Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288)
Record Mode	Continuous / Time Schedule / Motion Detection
Network Function	Support Live View with IE & Mobile Phone
Network	RJ45, 10M/100M
Net Protocol	TCP/IP, PPPoE, DHCP and DDNS
Remote Access	LAN or Internet Browsing
PTZ Control	RS-485
HDD Interface	SATA, Support between 250GB and 2TB
USB	USB Backup/USB 2.0
Remote Control	IR Remote Control
Power Supply	12V/3A DC
Power Consumption	IR on Max 1200mA
Dimension	12.8 "(W) x 10.4" (D) x 3.9"(H)

Model	ZMD-CNR-BBS23NM (CM-N22623BG)-Bullet Camera
Image Sensor	1/4" Sony Color CCD
TV System	NTSC / PAL
Effective Pixels	NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V)
Horizontal Resolution	420 TV-Lines
Lens	3.6mm
Number of IR LEDs	24 PCS
Infrared Illumination (Night Vision)	up to 65ft (15~20m)
Minimum Illumination	0 Lux (IR On)
S/N Ratio	≥ 48dB
Video Output	1.0Vp-p, 75ohms (BNC)
Weatherproof	Yes
Operating Temperature	--25°F~122°F / -32°C ~50°C
Power	12V DC
Power Consumption	IR on Max 200mA

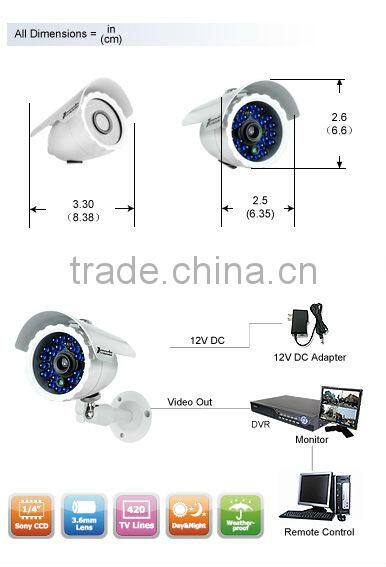

Dimensions (W x D x H)	3.3" x 2.5" x 2.6"
Gross Weight	0.33 lbs
Material	Metal Shell
