Specifications
* 1/3" Sony CCD* Waterproof
* PTZ via RS-485 Port
* Up to 80' IR with 35 LEDs
* One Year Warranty

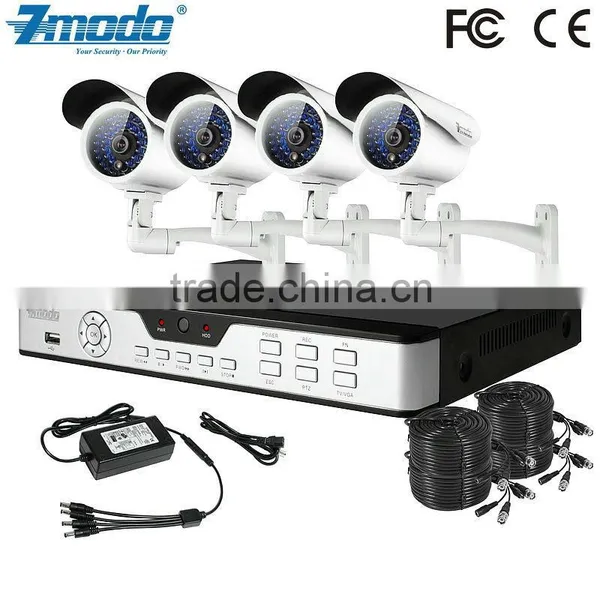

Zmodo 4 CH DVR Surveillance System with Four Sony CCD Outdoor Night Vision Cameras and NO Hard Drive
This surveillance camera monitoring system provides everything you will need to protect your home or business, safeguard your loved ones, and deter intruders. The system includes a state-of-the-art 4 channel H.264 DVR with 4 Sony CCD day/night cameras, and allows for the simultaneous viewing and recording of 4 video streams locally, with remote streaming capability over the Internet or to a supported Smartphone. This is an affordable security solution for your home or small business.
Surveillance in the Palm of Your Hand
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from your Android™, iPhone®, iPad®, Symbian™, Windows Mobile®, or BlackBerry® .
Advanced Motion Detection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
Customize Your Camera Display
View four cameras simultaneously in quad mode, or for more detailed viewing, view individual cameras full screen.
Multi-Tasking Functionality
The multi-tasking feature allows up to five functions to occur on the system at one time: record video, watch live video, playback video while also monitoring and managing the system remotely, and also backing up files.
Easy USB Backup
A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive.
Search by Date, Time or Event
Simply choose the desired date and time range, and the requested video clips will appear. Clips are also labeled by event, which makes it easy to find particular footage.
View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable. This gives you more connection options while viewing activity captured by your cameras.
Crisp, Clear Image
High quality 1/3" Sony CCD image sensor provides a crisp, clear and consistent image utilizing 420 TV lines of resolution.
Auto Backlight Compensation, Auto Iris & Auto White Balance
With auto backlight compensation, Auto Iris and auto white balance, the camera delivers excellent image in all light environment.
View at Night up to 80ft
35 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 80’ away, and deactivate once lighting conditions are brighter.

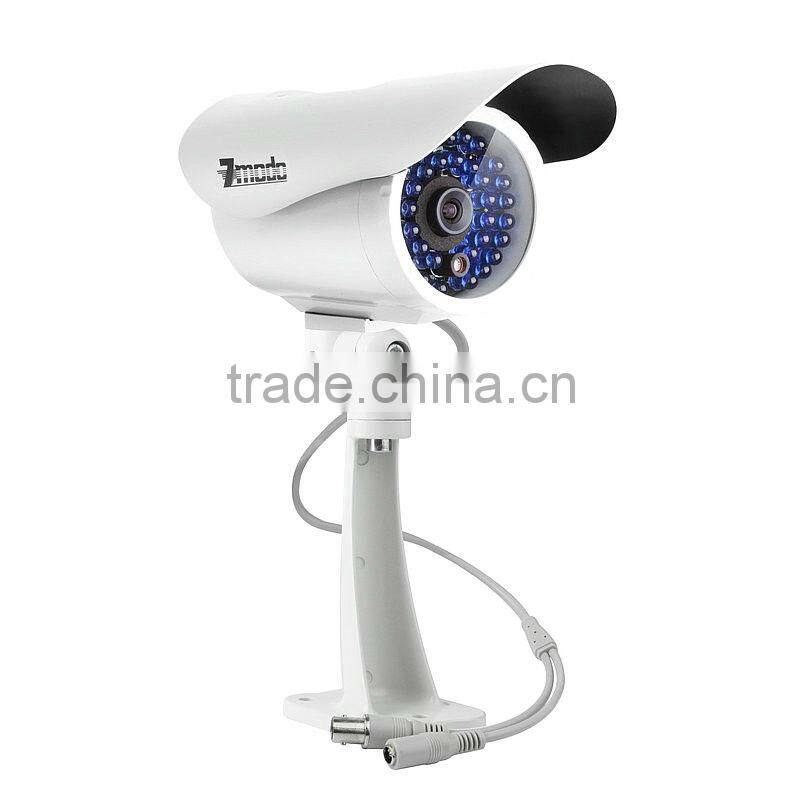

Professional Grade Weatherproof Cameras
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting.
| Model | ZMD-DD-SBN4 -StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 4-Channel Input / BNC 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Simplex / Duplex /Triplex / Pentaplex | Pentaplex |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 300mm (W) x 220mm (D) x 47mm (H) |
| Model | ZMD-CDR-BFS26NM- Indoor/Outdoor IR Color Camera |
| Image Sensor | 1/3" Sony Color CCD |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Horizontal Resolution | 420 TV-Lines |
| Number of IR LEDs | 35 |
| Minimum Illumination | IR on 0 Lux |
| Infrared Illumination (Night Vision) | Visible up to 80ft(25m) |
| S/N Ratio | > 48dB |
| Gamma | 0.45 |
| Audio | NO |
| Lens Mount | 6 mm |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Weatherproof | Yes |
| Power | 12V DC |
| Power Consumption | IR on Max 350mA |
| Video Out | 1.0V p-p 75 O, BNC Connector |
| Auto Iris | Video / DC |
| Auto White Balance | Auto |

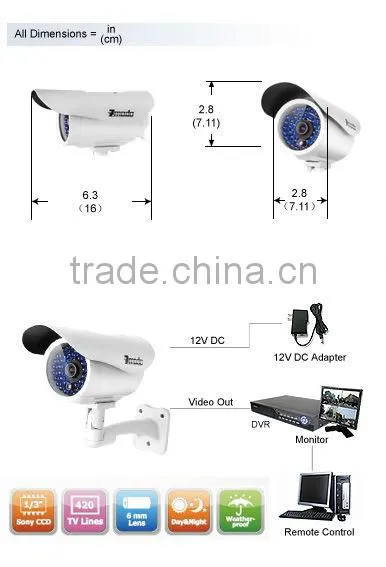

| Dimensions | 6.3" x 2.8 " x 2.8 " |
| Vandal-proof | yes |
