Specifications
* 1/4" Sony Color CCD* Weatherproof
* LAN or Internet Browsing remote access
* Metal Shell material
* One Year Warranty
Zmodo 4 CH CCTV Surveillance System with 4 Vandal-proof Day/Night SONY CCD Cameras
This surveillance camera monitoring system provides everything you will need to protect your home or business, safeguard your loved ones, and deter intruders. This DVR provides you with real-time D1 resolution, the highest resolution available to DVRs! The system includes a state-of-the-art 4 channel H.264 DVR with 4 SONY CCD day/night cameras, and allows for the simultaneous viewing and recording of 4 video streams locally, with remote streaming capability over the Internet or to a supported Smartphone. This is an affordable security solution for your home or small business.
Sony Imaging Chip Inside, Crisp & Clear Image with True Color
High quality 1/4" Sony CCD image sensor provides a crisp, clear and consistent image utilizing 420 TV lines of resolution. The camera delivers true color image with no color variation.

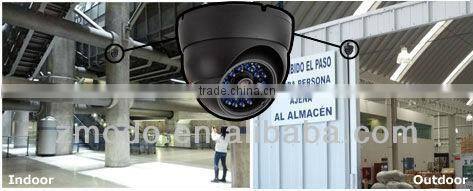

Robust Vandal-proof Design Indoor and Outdoor
A vandal-proof housing is designed to resist violent attacks or a heavy impact force, enabling the camera to operate in high-risk public environments such as prisons, transportation stations, parking lots and ATM sites.
Check Video Footage Anywhere Anytime via PC or Smartphone
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from your Android™, iPhone®, iPad®, Symbian™, Windows Mobile®, or BlackBerry®.
The DVR that Multi-Tasks
Thanks to Pentaplex, this DVR can perform up to five things at once. You can playback, backup, view live images and allow network access (e.g. for a Smartphone) while the DVR continues to record.
Advanced Motion Detection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
Scheduled Recording Options
Choose the specific days of the week and hours of the day you would like your DVR to record or not record. Each individual camera can be set with its own personalized schedule.
View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable. This gives you more connection options while viewing activity captured by your cameras.
View in Total Darkness up to 65ft
24 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 20 meters (65feet) away, and deactivate once lighting conditions are brighter.
Auto Iris & Auto White Balance & Auto Back Light Compensation
With Auto Iris, Auto white balance and Auto Back light Compensation, the camera will let you enjoy image with qualified brightness, accurate color and consistent light level in different lighting conditions. You can switch from DC or video driven of auto Iris or choose to close or open the auto Iris to adjust the light level.

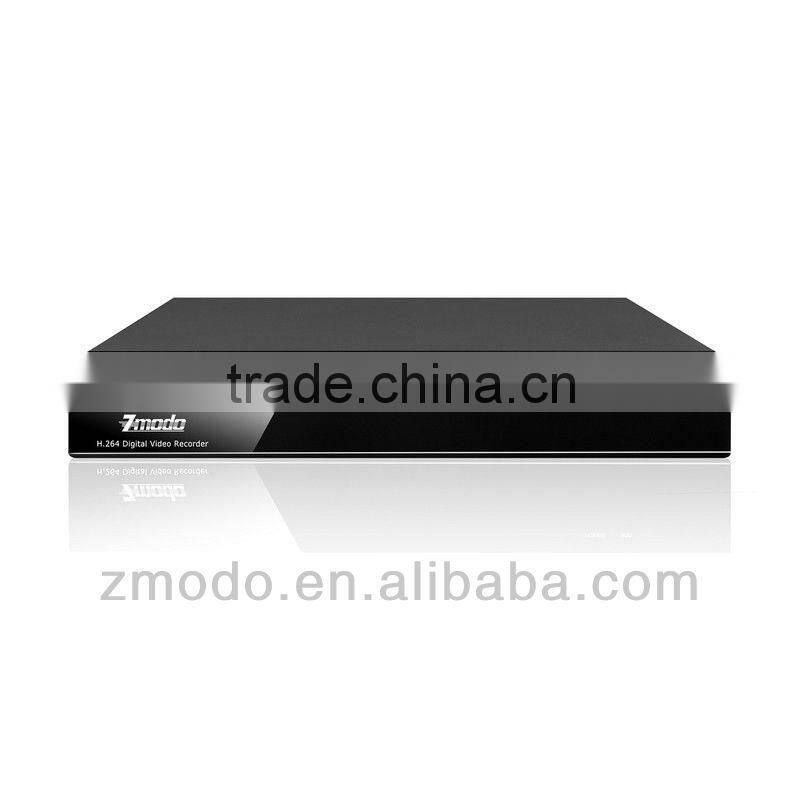

| Model | ZMD-DD-SAN4 - Full D1 4CH StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 4-Channel Input /BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input /BNC1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 290mm (W) x 205mm (D) x 42mm (H) |

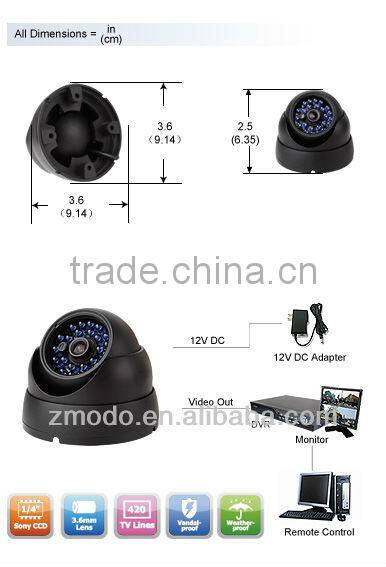

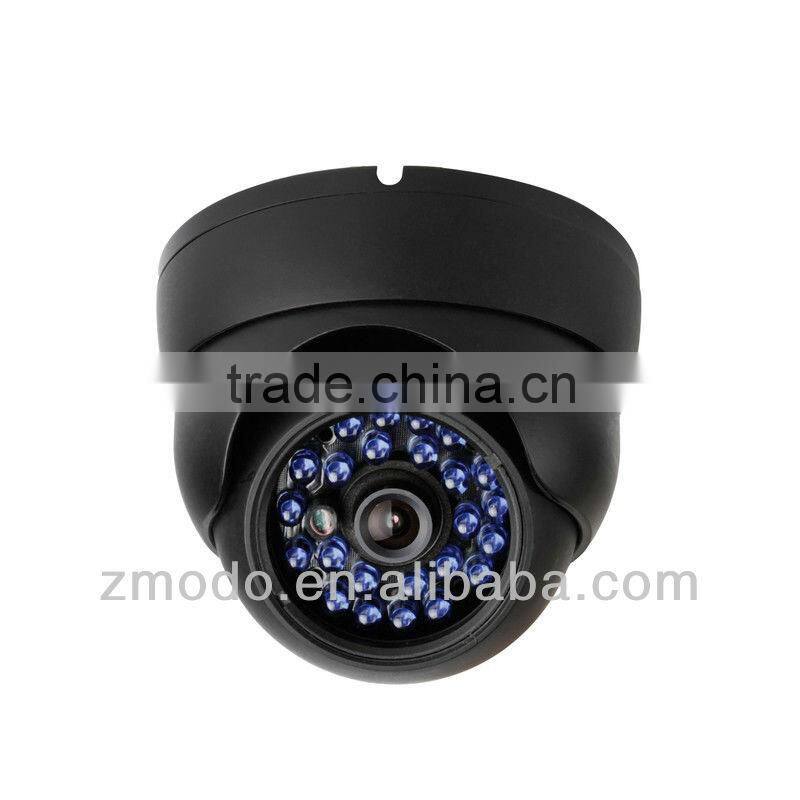

| Model | ZMD-CNR-DBS23NM (CM-N22203BK)-Color CCD Vandal-Proof Dome Camera |
| Image Sensor | 1/4" Sony Color CCD |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Lens Mount | 3.6mm |
| Scanning System | 2:1 Interlace |
| Infrared Irradiation Distance | 24 Ultra Strong Infrared LEDs- Visible up to 65 ft (15~20m) |
| Minimum Illumination | 0 Lux (IR On) |
| Horizontal Resolution | 420 TV-Lines |
| Synchronization System | Internal Synchronization |
| S/N Ratio | > 48dB |
| Gamma | 0.45 |
| Auto Gain Control | Built in |
| Weatherproof | Yes |
| Operation Temperature | -25°F~122°F / -32°C ~50°C |
| Power | 12V DC |
| Power Consumption | IR on Max 200mA |
| Back Light Compensation | Auto |
| Video Out | 1.0p-p 75O BNC |
| Auto Iris | Video / DC |
| Dimensions | 3.6" x 3.6 " x 2.5" |
| Weight | 1.0 lbs |
