Specifications
* 1/4" Color CMOS camera* Weatherproof
* LAN or Internet Browsing remote access
* Metal Shell material
* One Year Warranty

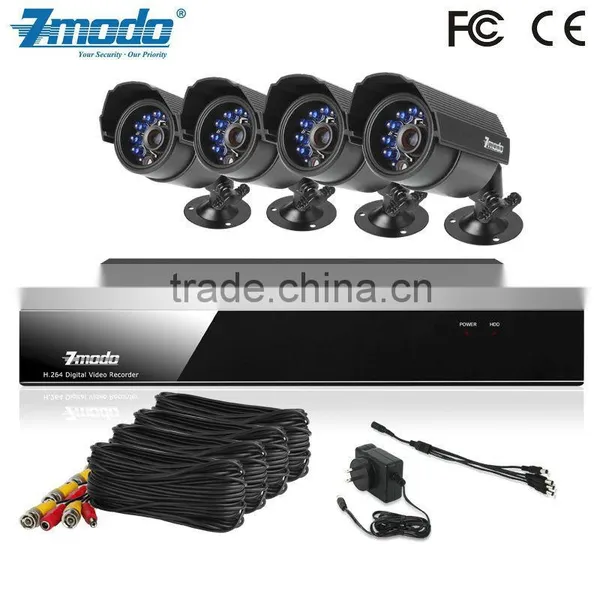

4CH H.264 DVR Security System with 4 Indoor/Outdoor Night Vision Surveillance Cameras
This 4 channel dvr surveillance system delivers everything you need to defend your home or business, safeguard your loved ones and deter intruders. It allows you to have peace of mind at your home or business whenever and wherever you are. It provides the basic surveillance function at an affordable price for your security surveillance needs.
View Online or From Smartphone
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from yourAndroid™, Symbian™ , Windows Mobile® , ipad®ios &iPhone® ,BlackBerry® .
Advanced Motion Detection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
Scheduled Recording Options
Choose the specific days of the week and hours of the day you would like your DVR to record or not record. Each individual camera can be set with its own personalized schedule.
Multiple Viewing Options
View four cameras simultaneously in quad mode, or for more detailed viewing, view individual cameras full screen.
View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable. This gives you more connection options while viewing activity captured by your cameras.
Easy USB Backup
A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive.
Weatherproof Housing
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting.
Clear Pictures Day or Night
Each camera comes equipped with night vision, allowing you to see any monitored area up to 30ft away in total darkness. The 11 infrared LEDs activate automatically when it becomes dark and deactivate during the day to save energy.
| Model | ZMD-DD-SAN4 - Full D1 4CH StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 4-Channel Input /BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input /BNC1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 290mm (W) x 205mm (D) x 42mm (H) |
| Model | CM-C21606BK- Color IR Bullet Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 6mm |
| Number of IR LEDs | 11 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Power | 12V DC |
| Dimensions (W x D x H) | 2.9" x 2" x 1.8" |
| Gross Weight | 0.38 lbs |
| Material | Metal Shell |
