Specifications
* 1/3" Sony Color CCD* H.264
* up to 80ft with 35 LEDs
* Weatherproof
* One Year Warranty

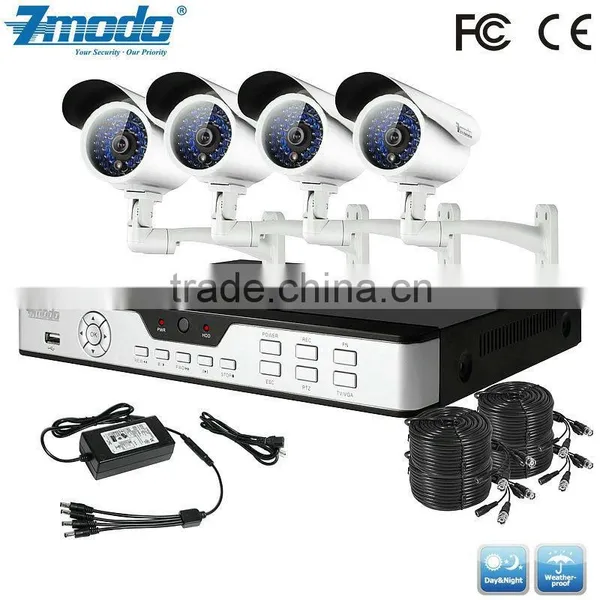

The kit KDS8-NARBZ4ZN includes an 8 CH H.264 standalone DVR and four night vision outdoor security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
Super Clear, Satisfying Image
The high quality 1/3" Sony® CCD image sensor in this camera provides a clear, crisp and consistent picture at 420TV lines of resolution.
View at Night up to 80ft
35 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 80’ away, and deactivate once lighting conditions are brighter.
See Further with More Details
See further distance area with the 6mm lens Cameras which is a perfect balance between angle and distance to protect larger areas such as driveways, entrances, warehouses, large retail stores, parking lots, front and backyards.

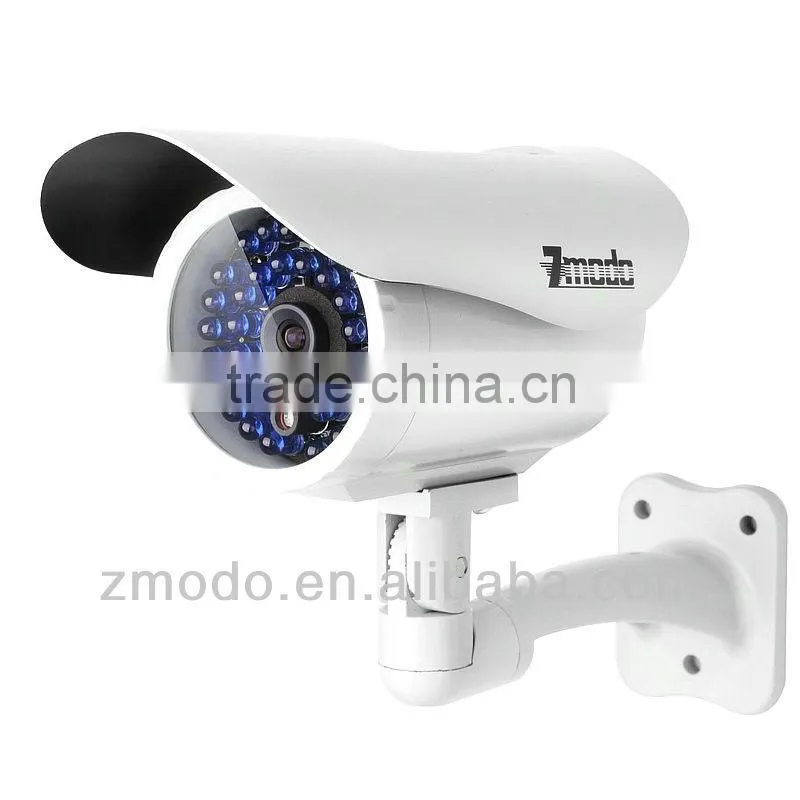

Weatherproof Housing for Indoor and Outdoor
This bullet camera was designed to withstand the outdoor elements. Its professional grade weather resistant metal housing and sunshade help protect against rust and deterioration.
Fog Won't Stop Us
The dual layer of glasses, standing before the lenses,will prevent the lens from being fuzzy and blinding caused by fogs or other occasions.

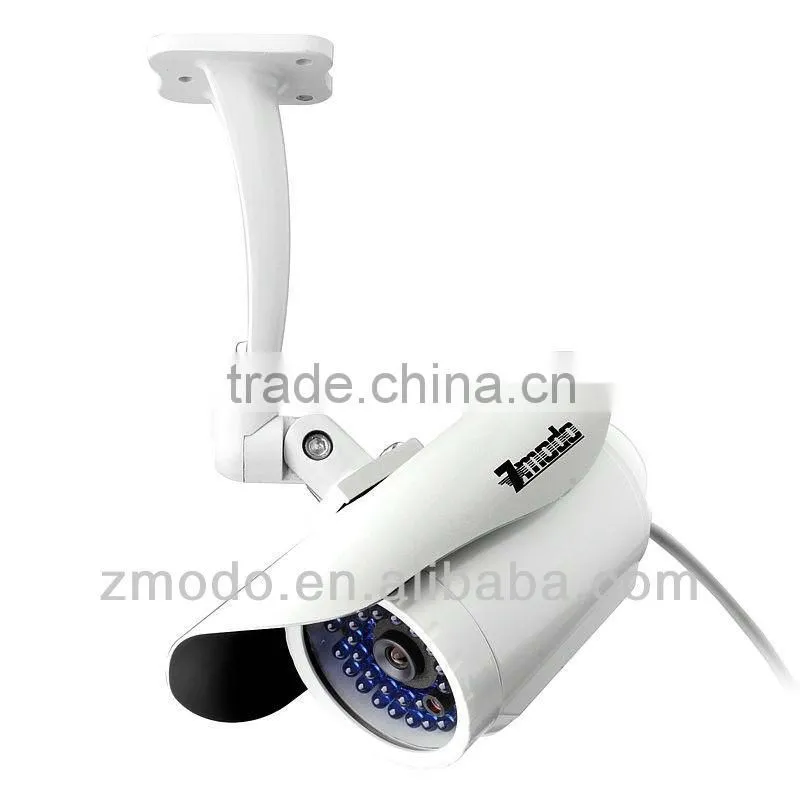

Flexible Bracket Mounting
You can mount it at on the wall at any positions conspicuous or inconspicuous for the perfect viewing angle.
Easy USB Backup
A Built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive.

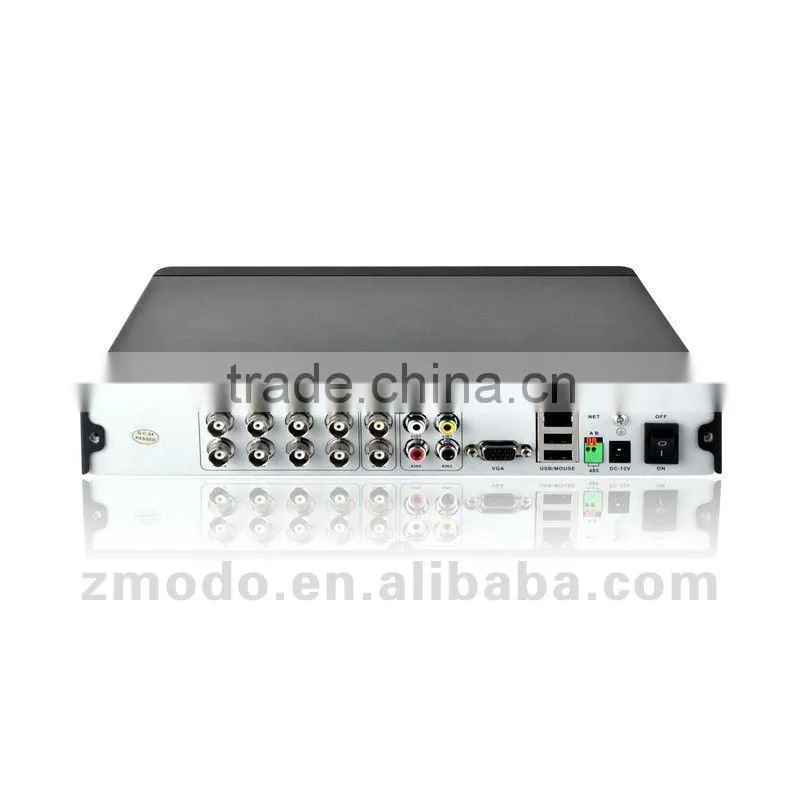

| Model | ZMD-DD-SBN8-StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 8-Channel Input / 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network Function | Support Live View with IE & Mobile Phone |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| USB | USB Backup/USB 2.0 |
| Remote Control | IR Remote Control |
| Dimension | 12.8 "(W) x 10.4" (D) x 3.9"(H) |
| Model | ZMD-CDR-BFS26NM- Indoor/Outdoor IR Color Camera |
| Image Sensor | 1/3" Sony Color CCD |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Horizontal Resolution | 420 TV-Lines |
| Number of IR LEDs | 35 |
| Minimum Illumination | IR on 0 Lux |
| Infrared Illumination (Night Vision) | Visible up to 80ft(25m) |
| S/N Ratio | > 48dB |
| Gamma | 0.45 |
| Audio | NO |
| Lens Mount | 6 mm |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Weatherproof | Yes |
| Power | 12V DC |
| Video Out | 1.0V p-p 75 O, BNC Connector |
| Auto Iris | Video / DC |
| Auto White Balance | Auto |
| Dimensions | 6.3" x 2.8 " x 2.8 " |
| Vandal-proof | yes |
