Specifications
* Up to 30' IR* Waterproof
* 600TVL
* 1/3.7" Color CMOS
* One Year Warranty

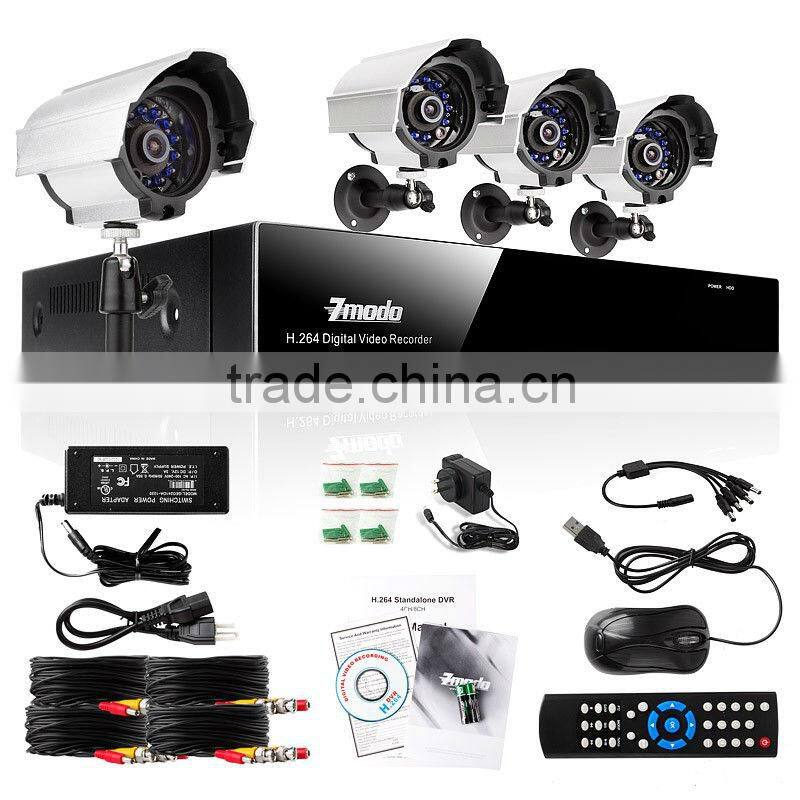

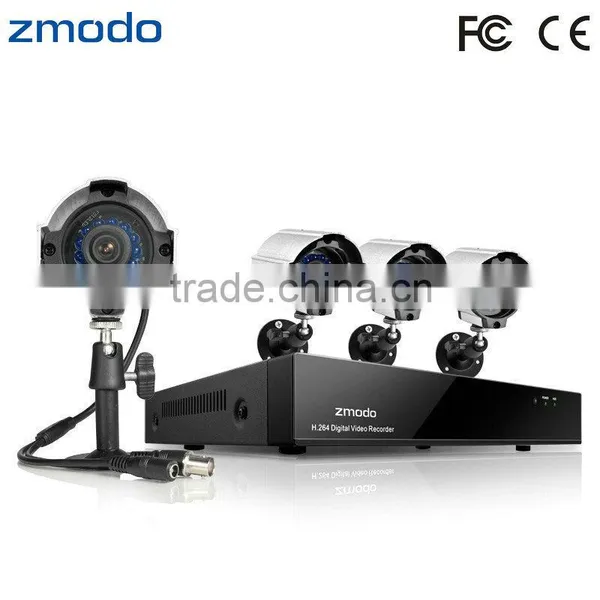

This 4 channel DVR outdoor surveillance camera system includes a H.264 DVR and four indoor/outdoor IR security cameras at a reasonable price.

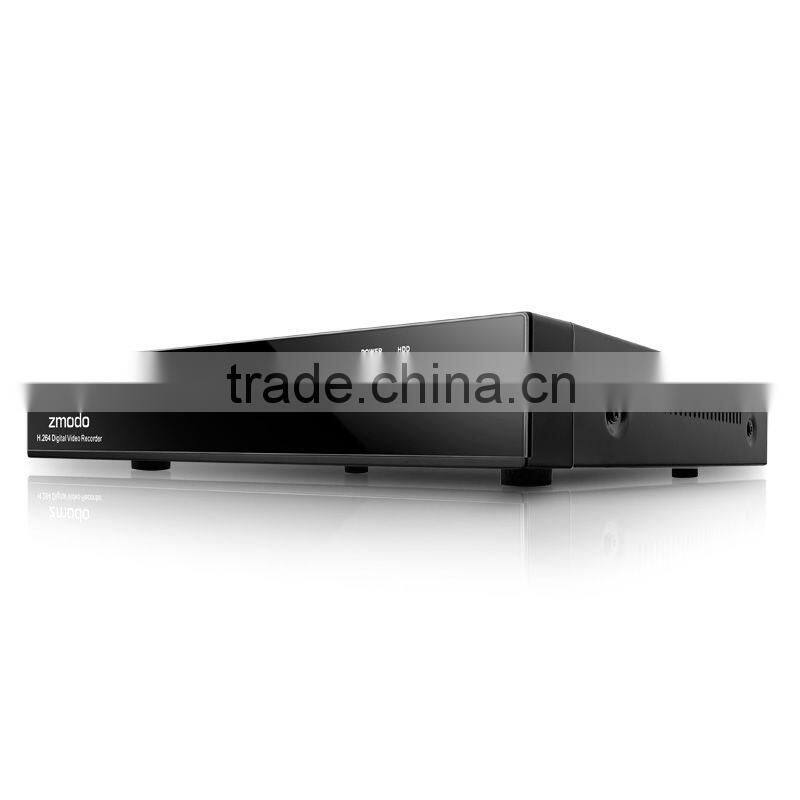

This 4 channel security DVR is a fully integrated, real time and hardware-based digital video recorder. With video/audio input/output, motion detection, 3G live view, network access, PTZ camera control and USB2.0 backup, this 4CH security DVR is perfect for the home or small business.
This DVR provides you with real-time D1 resolution, the highest resolution available to DVRs! At 120 FPS (30 FPS Per Channel), recorded video will appear smooth and fluid. D1 gives you 4-times the image size, detail and clarity of conventional CIF quality. Its larger image and added detail makes it easier for you to identify people and objects.

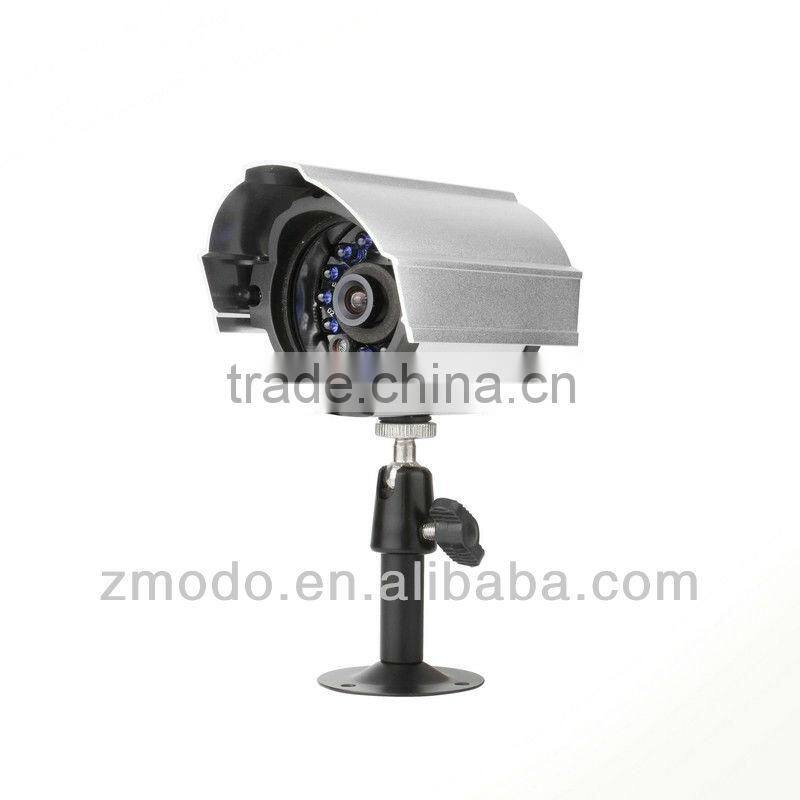

With 600 TV Lines, a 3.6mm lens and up to 30' illumination range, these high performance cameras provide you with the capability to record clear and sharp images Day and Night.
| Model | ZMD-DD-SAN4 - Full D1 4CH StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 4-Channel Input /BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input /BNC1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 290mm (W) x 205mm (D) x 42mm (H) |
| Model | ZMD-CCH-BCS13NM - 600TVL Security Camera |
| Image Sensor | 1/3.7" Color CMOS (PC6030) |
| TV System | NTSC / PAL |
| Horizontal Resolution | 600 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 12 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | > 45.6dB |
| Video Output | 1.0Vp-p, 75ohms |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Weatherproof | Yes |
| Power | 12V DC |
| Power Consumption | IR on Max 150mA |
| Dimensions (W x D x H) | 3.7" x 2.6" x 2.5 " |
| Gross Weight | 0.5lbs |
| Material | Metal Shell |
