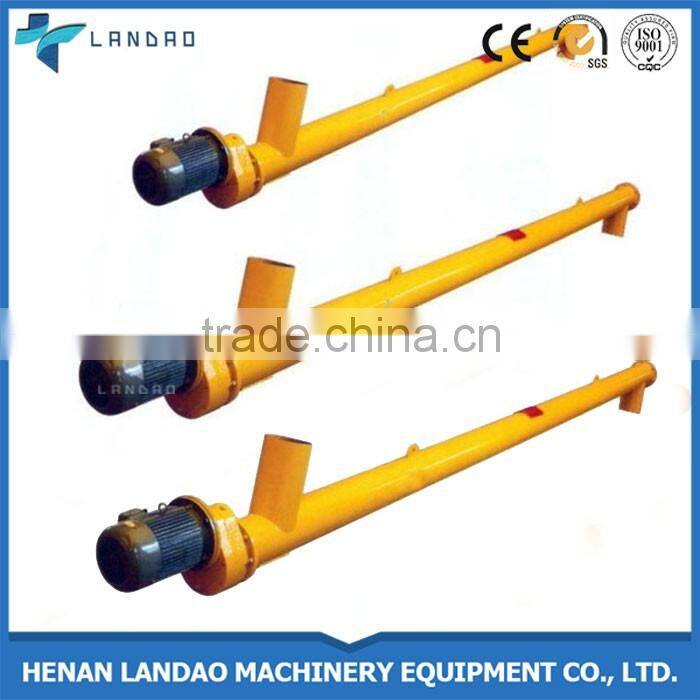

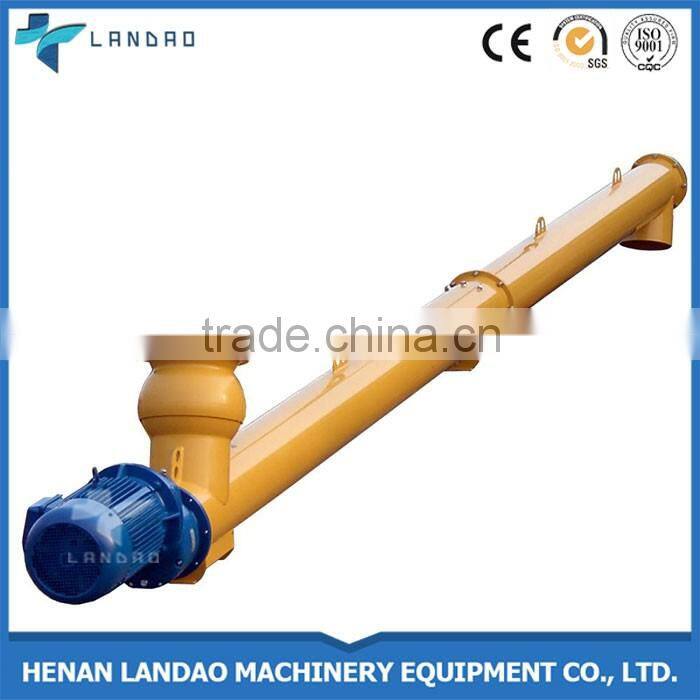

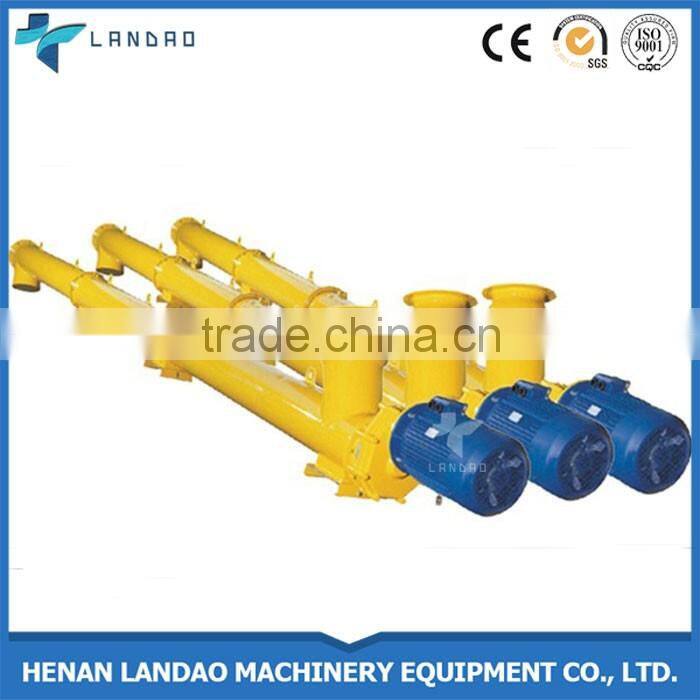

Widely-used LSY series small screw conveyor for sale
LSY series of screw conveyor is a circular section in a cloased shell,the use of a continuous rotation of the screw balde push new materials handing equipment.
The screw conveyor takes many types due to different uses and environments.For example,the vertical conveyor LC and LS-Y is fit for the blast furnace,specially used in the assimilation lime XP mono and double canal screw feeder.
Characteristic:
1.Using double electrical motors: feeding motor & vibrating motor,separately
controlled .
2.Product funnel is design to be adjustable vibratile , which lead to avoid product
blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
Main technical parameters:
| Model | LSY160 | LSY200 | LSY250 | LSY300 |
| Screw diameter(mm) | 160 | 193 | 250 | 300 |
| Belt length(m) | 2.5-6 | 4.5-12 | 6-9 | 6-9 |
| Spirochete speed(r/min) | 100 | 209 | 209 | 174 |
| Shell diameter(mm) | Φ194 | Φ219 | Φ273 | Φ325 |
| Working angle | ≤20° | ≤45° | ≤45° | ≤45° |
| Transmission capacity(t/h) | 25 | 35 | 50 | 75 |
| Motor model | Y100L-4 | Y132M-4 | Y160M-4 | Y180M-4 |
| Motor power(KW) | 3-7.5 | 4-11 | 7.5-11 | 11-18.5 |

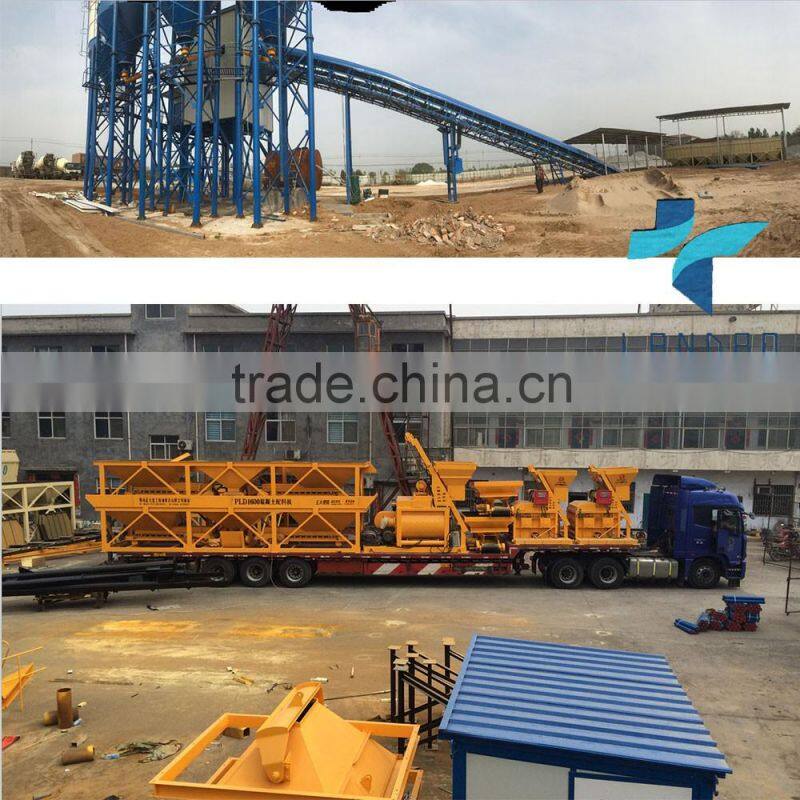

We have lots of productions in our factory,like concrete mixer,HZS concrete mixing station,PLD sereies concrete batching machine,LSY screw conveyor,cement storage and so on.
If you are insterested in our products,welcome to contact me freely.
|
