Help CenterDP-A20 Two Components Polyurethane Sprayer
Related Products
Specifications
DP-A20 Two components polyurethane sprayer2. Mixing ratio: 1:1
3. Maximum output volume: 8kgs/min

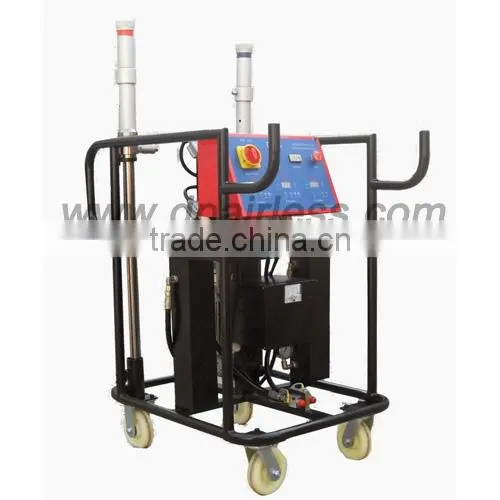

DP-A20 Two components polyurethane sprayer
DP-A20 Two components polyurethane sprayer
* Designed for spraying the foaming (A. ISO isocyanate ; B. Polyol ) two components mixing and spraying.
* Powered by air compressor with max.8bar and 1cbm/min output
* This A20 polyurethane foam spraying machine has accurate mixing for A+B two components
* Accurate temperature control and easy monitoring for result in good quality of sprayer material
* Easy to use, easy to clean, easy to move, high productivity foam sprayer machine.
* Stable performance pneumatic air motor for long lifetime and suitable for complex spraying jobs
* Stainless steel precise proportioning pump with long lifetime
* Innovated two-circuit heating pipes adopt the most advanced wrapping internal heating, it will maintain the required temperature and viscosity for the perfect components mixing ratio and finish.
Technical data:
| Model No. | DP-A20 polyurethane sprayer |
| Mode of driving | Pneumatic (Air-driven) |
| Mixing volumetric ratio | 1:1 |
| Maximum output volume | 8kgs/min (20 lbs/min) |
| Maximum temperature of fluid | 90°C (194°F) |
| Maximum working pressure | 120bar / 1740psi |
| Compressed air pressure | 3-8bar (43-120psi) |
| Air consumption @7bar | 1000 L/min |
| Heater power | 8000W |
| Maximum hose length | 60m |
| Power parameters | Single-phase 220V 50Hz 30A |
| Net weight | 120kgs |
| Overall size | 60cm x 60cm x 110cm |
| Packing dimension: | 70cm x 80cm x 125cm |
| Contents in package: | |
| Machine | 1 set |
| Transfer pump | 2 sets |
| Heating hose | 15m (50ft) 800watt |
| Heating whip hose | 1.5m (5ft) |
| Self-cleaning spray/injecting gun | 1 set |
| Repair kit | 1 set |
| Cleaning fluid | 1 kg |
| DOP | 1 kg |
