stainless steel fiber laser cuting machine/laser cut stainless steel

Name: stainless steel fiber laser cuting machine/laser cut stainless steel
Brand: HSG Laser
Price: USD $45,000 - 80,000 / Set

FOB Price

USD $45,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 3500 Set / Sets per Month
Port Shenzhen/Guangzhou/Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Laser Type:	Fiber Laser	Applicable Material:	Metal, Other, Metal, Sheet Metal, Stainless Steel, Mild Steel
Cutting Thickness:	18mm metal	Cutting Area:	3000x1500mm	Cutting Speed:	120m/min
CNC or Not:	Yes	Cooling Mode:	Water Cooling	Control Software:	Cypcut CNC System
Graphic Format Supported:	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Place of Origin:	Guangdong, China	Brand Name:	HSG Laser
Model Number:	HS-G3015C Fiber Laser Cutting Machine	Certification:	CE, ISO, Other, CE, ISO, FDA	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

Standard Wood Case Vacumm Packing for Fiber Laser Cutting Machine

Product Description

stainless steel fiber laser cuting machine/laser cut stainless steel

Advantage of fiber laser cutting machine

fast speed cutting, good finish cutting, zero maintanence and user-friendly, widely used especially in various industries, gradually replace old metal laser cutting ways like YAG laser, CO2 laser, punching machine, flame cutting machine etc.

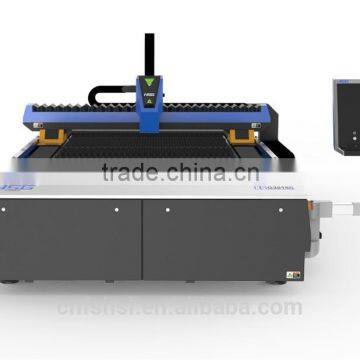

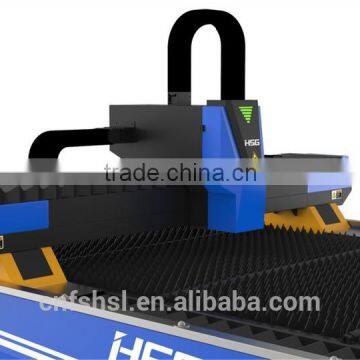

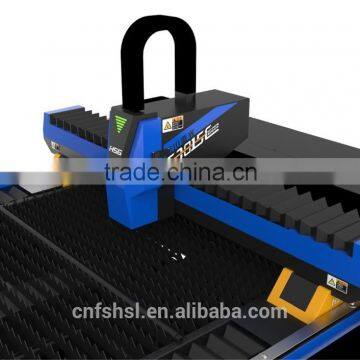

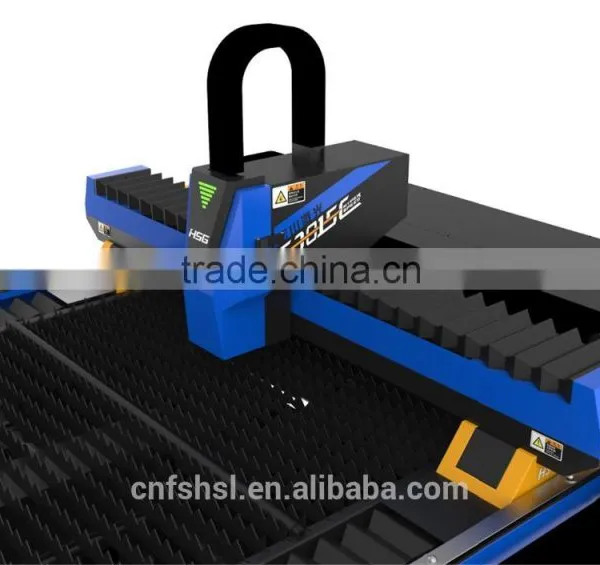

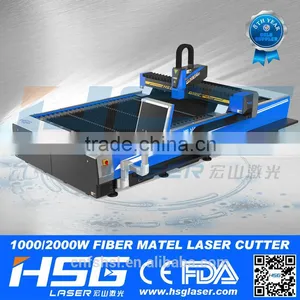

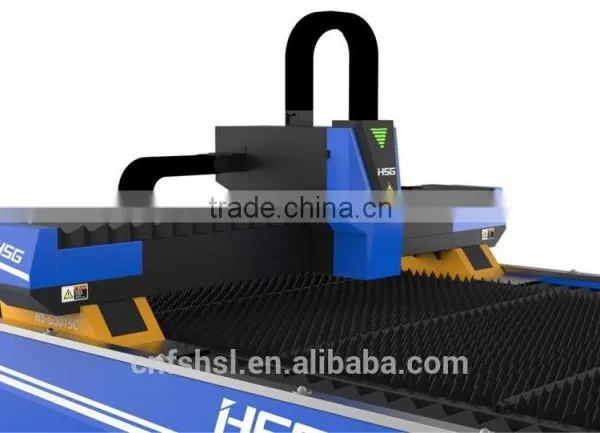

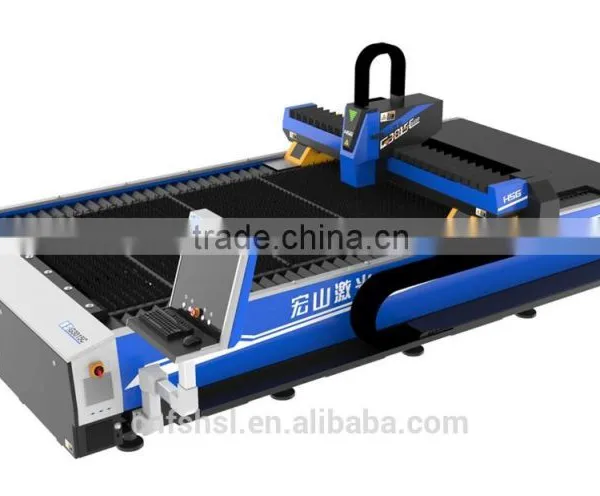

HS-G3015C Fiber Laser Cutting Machine

Machine Name	stainless steel fiber laser cuting machine/laser cut stainless steel
Laser Source	Fiber Laser
Laser Power	500W (optional 300W/700W/1000W/2000W/3000W)
Machine Type	Open type (optional full close type)
Working table	3000x1500mm
Weight	5500kg
CBM	34 m³
Machine body size	5080x3350x2000mm
Transmitting System	Rack & Pinion Double Drive
Computer Software	HSG (compatible with CAD, Coreldraw)
Max running speed	120m/min
X/Y Positioning Accuracy	±0.03mm/m
X/Y Repositioning Accuracy	±0.03mm
Working Power Supply	Three phase 380V±20%, 50HZ
Power Consumption	≤8KVA
Running Temperature	10°C-40°C
Max Acceleration	1.5G
Formats	CDR,BMP,PL,GPEG,DXF,DST, AI etc.

More Related Fiber Laser Cutting Machines

HS-G3015A full enclosed cover rack&pinion fiber laser cutting machine with pallet changer/sheet metal cutting

HS-G3015B opten type rack&pinion fiber laser cutting machine with pallet changer/sheet metal cutting

HS-M3015A full enclosed cover ball screw fiber laser cutting machine/sheet metal cutting

HS-M3015B open type ball screw fiber laser cutting machine/sheet & tube metal cutting

HS-M3015C open type ball screw fiber laser cutting machine/sheet metal cutting

HS-F2513C open type belt transmission fiber laser cutting machine/sheet metal cutting

Fiber Laser Cutting Metal Samples

smooth cutting finish

high precision cutting ±0.03mm- the only one in China who can cut such high precision 1/5 a coin size bicycle

HS-G3015C Machine Features

1. The first integrated design fiber laser cutting machine, saving covering space and cost.

2. Germany ALPHA rack&pinion transmission and Japan imported SANYO servo motor for fiber metal laser cutting machine, 120m/min highest running speed and 1.5G accelerate speed.

3. Cypcut CNC control system with powerful graphics processing function yet user-friendly.

4. Integrated new design auto lubricator.

5. Highest precision, the only one in China can cut 1/5 size of a coin precise little bicycle, reaching real ±0.03mm high precision.

Quality Control for Fiber Laser Cutting Machine

Compared with small laser cutting machine factory, we have invest a lot on high-tech test equipment like auto-colliator, interferometer from Swiss, heat treatment oven, laser power testor, precision detect gauge etc. to test every part of the fiber laser cutter. We have an independent quality control department to ensure the machine quality before delivery the fiber laser cutting machine to customers.

Packing & Delivery

HSG Laser Factory

10 Years Experience in Manufacturing Laser Cutting Machine

Good Qulity Good Aftersales Service

Welcome to send inquiry for stainless steel fiber laser cuting machine/laser cut stainless steel!
