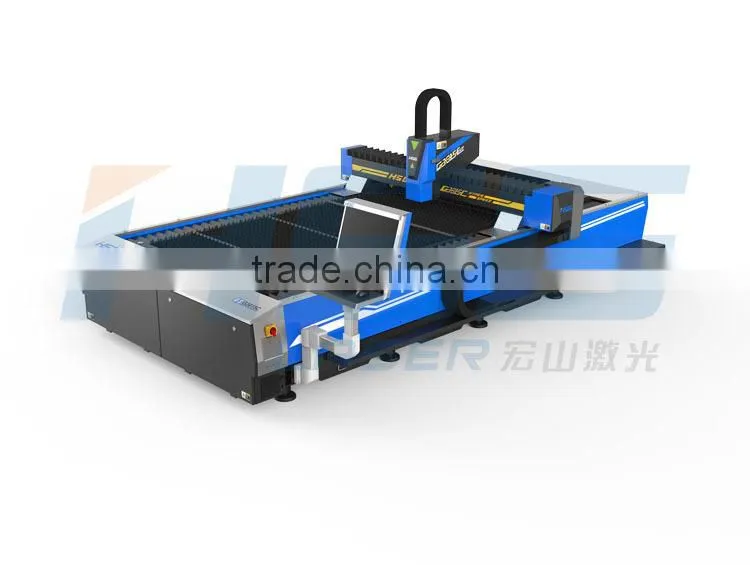

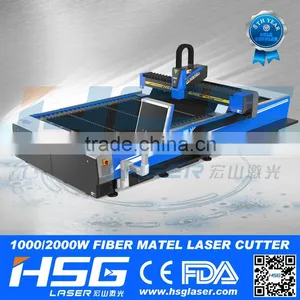

HSG 500w laser auto focus laser cutting machine for 4 mm thick metal materials HS-G3015C
Steel laser cutting machine specification
Working table(mm) |
1500*3000 |
Laser power(W) |
1000 |
Weight(kg) |
5000 |
Max. running speed |
80m/min |
Machine body size(mm) |
5080×3350×2000 |
Max.Acceleration Speed |
1G |
Stainless steel laser cutting machine features
1. Single-table design saving space, economy and practical.
2. Intelligent automatic oil-feeding device extends the lifespan of the transmitting components.
3. High accelarated speed enhances the working efficiency.

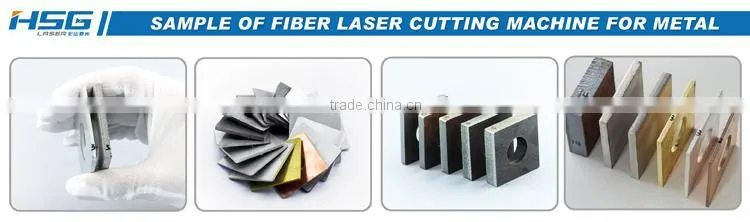

4. Specially used for cutting 0.5-12mm carbon steel, 0.5-10mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel,0.5-3mm aluminum, 0.5-2mm brass and red copper and other kinds of thin metal sheets(The thickness and materials depend on the brand fiber laser source).
Technical paremeter of metal machines
Work table area |
3000*1500mm |
Max running speed |
80m/min |
X/Y location precision |
0.05mm/m |
Power Supply |
380V 50Hz |
X/Y repeated location precision |
±0.03 |
Machine gross power |
<20KVA |
Running Temperature |
0°C-40°C |
Running himidity |
<90% |
Max. accelarated speed |
1G |
Transmitting structure |
Precise pinion and rack, dual-drive transmitting |
Advantages
- Integration design without too much spare parts outside, smaller space, less costs.
- Germany originally imported Alpha rack&pinion, compared to made in China or Taiwan, has higher precision ensuring best dynamic performance.Cabinet is well protected: Dust-proof, water-proof; Taiwan imported computer is special for industrial usage with long time working.
- 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 precision welding, make sure 20 years usage without deformation.
- Waste collection device could be moved both sides which have no special request for machine location.
- Air cylinder helps to feed sheet metal easily and prevent scratching.
Gas Path
- Separated gas supply with independent pressure valve assures good cutting.
- Auto-change for gas when cutting different sheet metal.
- Pressure Alarm. When there is no enough gas with low pressure, alarm will be drawn your attention.
- Low pressure hole punching is special function.
Cutting Video
- /channel/UC7in9fXDf3TIkqEVIYSHAOQ
Quality control:
- Before the order can be confirmed finally, we would strictly check the material, dimension of the sample step by step.
- Our salesman, also as a order follower,would trace every phase of production from the beginning.
- We have a QC team, every product would be checked by them before packed.
- We would try our best to help clients solve problems.
1.Strong waiter resit bottom in plywood---2.machine and sparts parts on the laser rnor protect by foam and fixed by protective film---4.All coverd by storng and hard protective film---5.Vacuum packing---6. inside steel frame proctor---7.plywood packing and steel strip outside fixed the box---8.finishing packing (a flat rack container can load 1 fiber laser).
