2015 Top sales cnc punching machine fiber machine
ZERO AFTER SALES PROBLEM MACHINE
Unique Advantage
1. The fiber laser series are new line of metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speed and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting sheets of stainless steel, mild steel etc.
2. The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.
3. Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

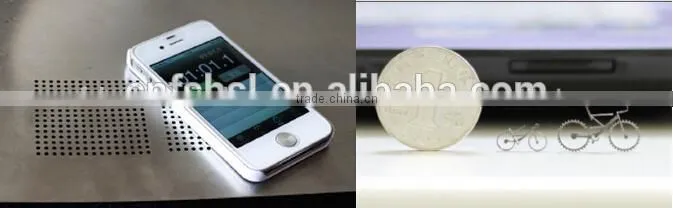

4.Different design can be arrayed in the space left, saving materials on the side.The best Integrated design in China.Motorized moving double heads cut odd number of designs automatically.1/5 size prefect bicycle precision cutting.
5.Metal cutting, manufacturing of electrical switches, elevator manufacturing, household appliances manufacturing, kitchenware manufacturing, processing tools, and other machinery manufacturing and processing industries.
2015 Top sales cnc punching machine

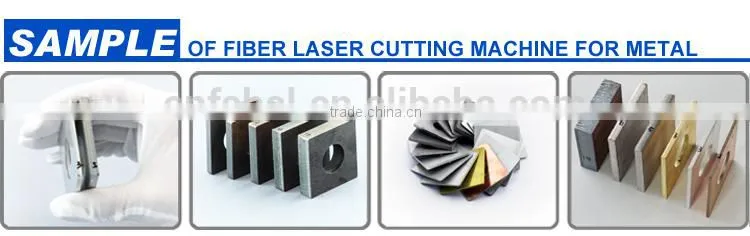

Metal samples:Aluminum/Brass/Copper/Stainless steel/Carbon steel and so on.
2015 Top sales cnc punching machine

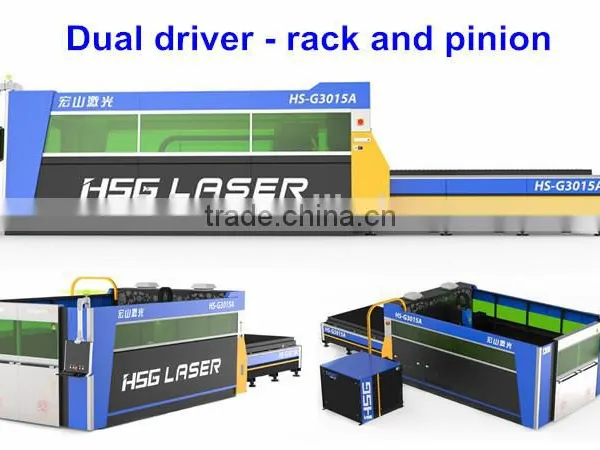

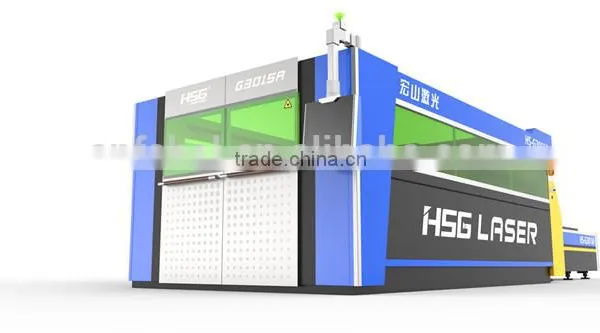

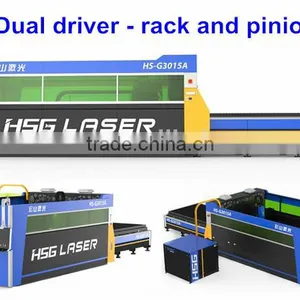

Details Technical Parameter
| Series | HS-G3015A |
| Working area (L*W) | 3000×1500mm/3000*2000mm/4000*2000mm |
| X-axis running area | 1500mm |
| Y-axis running area | 3000mm |
| Z-axis running area | 120mm |
| X/Y axis Repeated Position Precision | ±0.03mm |
| Max. Running Speed | 120m/min |
| Max. accelerated speed | 1.5G |
| Machine weight | 7500kg |
| Voltage/ Frequency | 380V/50HZ/60HZ |
|

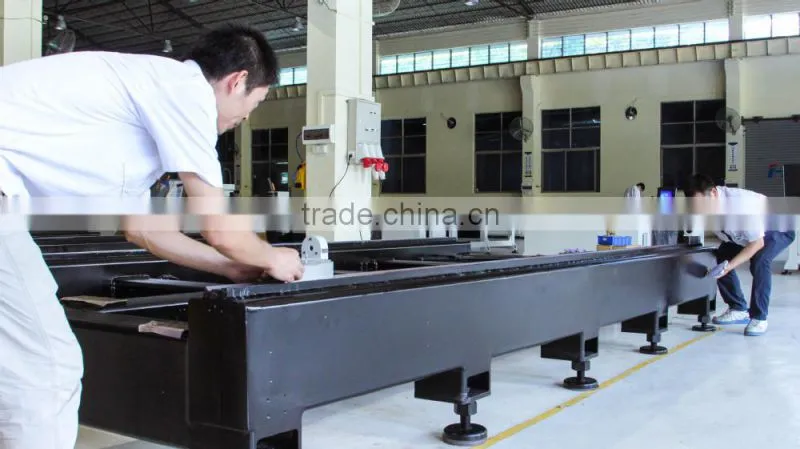

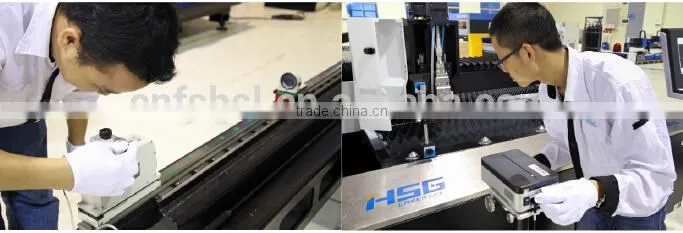

A.Autocollimator is important for check straightness rather by hand,make sure the accuary for each set machine.
|
|

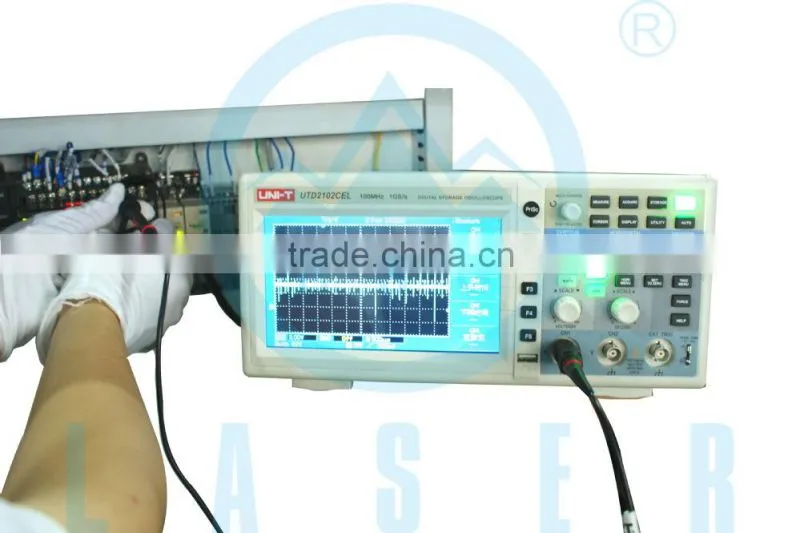

B.Wave showing device prevent/reduce interference of waves at most.
|
|
C.Swiss Laser interferometer helps to readjust precision again on base of the original reaching ±0.03mm.Test machine precision,make compensation and readjust error.
|
|

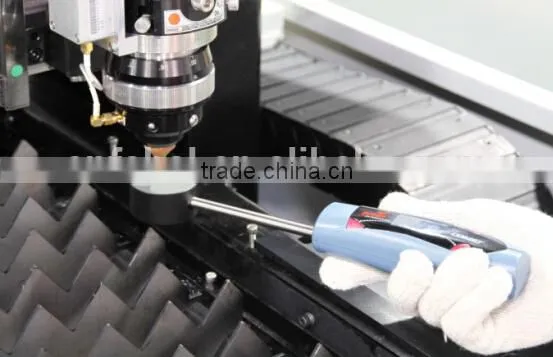

D.Handholding power test device is a small yet practical tools assuring long time stablelaser beam with good cutting result.
|
2015 Top sales cnc punching machine

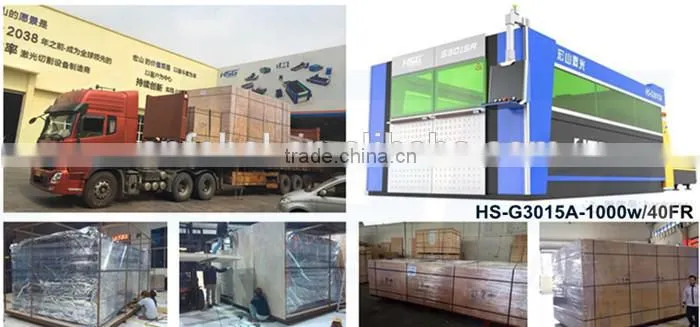

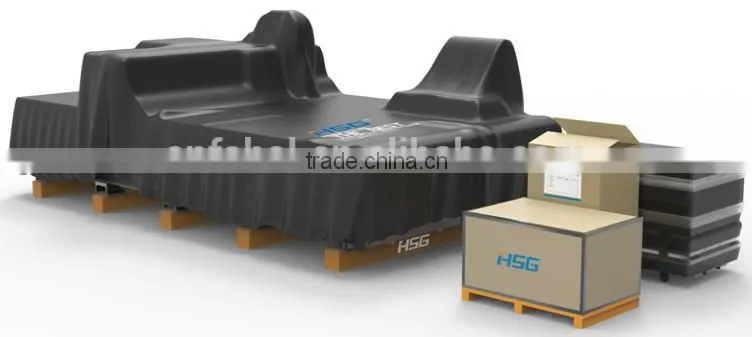

Standard export Shipping package
1.Full machine covered with waterproof film→2.anti-bumping edges protecting→
3.plywood box packing with steel strips outside→4.Type Six packing (Optimizing the container capability, a 40 FR container loading.
|
|

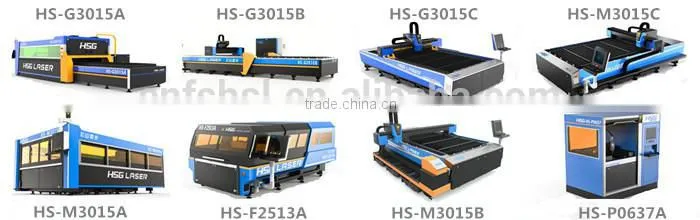

Best sales product series:

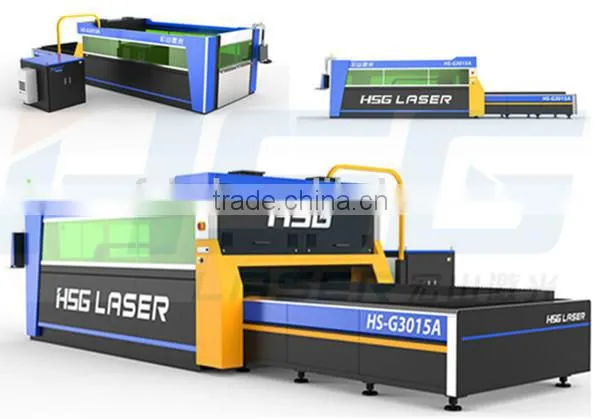

G3015A - Rofin 1000w /2000w/3000w with up and down exchanging table top&protective cover.
G3015B - Rofin 1000w /2000w/3000w with up and down exchanging table top/protective cover.
G3015C -Raycus/IPG 500w rack&pinion fiber laser.
M3015C - Raycus/IPG 500w ball screw fiber laser.
M3015B - Basice on M3015C and can cut round and square metal tube.
P0637 - Raycus 500w high precision laser cutting machine precision reach to ± .02mm.
F2513 - Raycus/IPG 300w with belt transmitting.

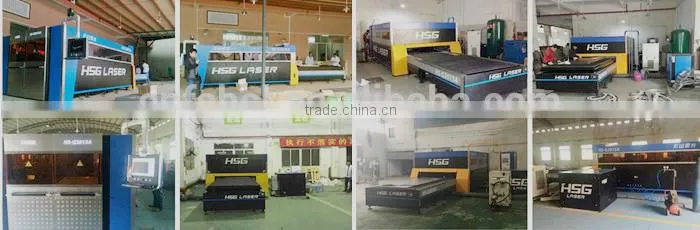

More than 1000 sets HSG end user all over the world,all can be working stable long time working.
More than 42 agents including Europe,Middle east,Asia,South America and so on.
Foshan Beyond Laser Technology Co.,Ltd is a laser cutting machine manufacturer dedicated insupplying laser cutting machine processing solutions for customers worldwide.
Our target is to assist the manufacturing development of China.Through constantly working hard,keep industrial spirit and innovative culture,we aim to be part of the power to make:Made in China"as a respected word in the world,and we aim at making our brand as the leading medium and low power laser cutting machines in the world.
For more information about our G3015A
PLS contact us and Mail us now, you will get 5% discount off.
