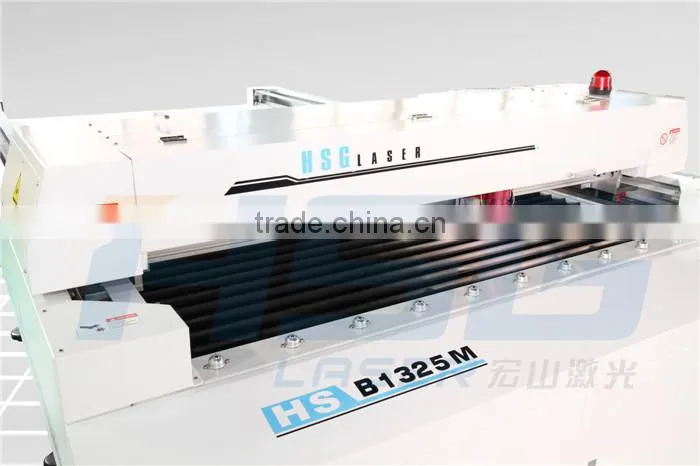

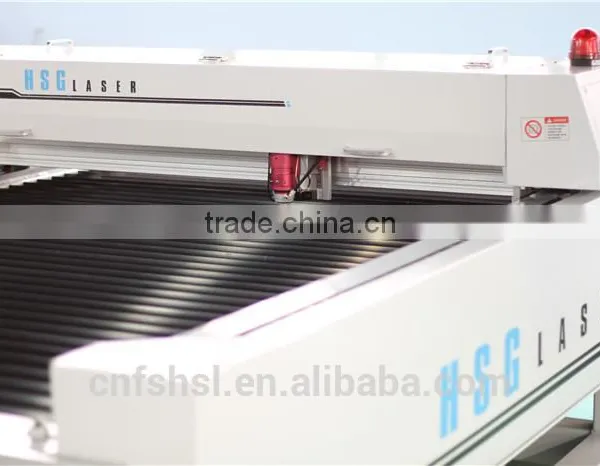

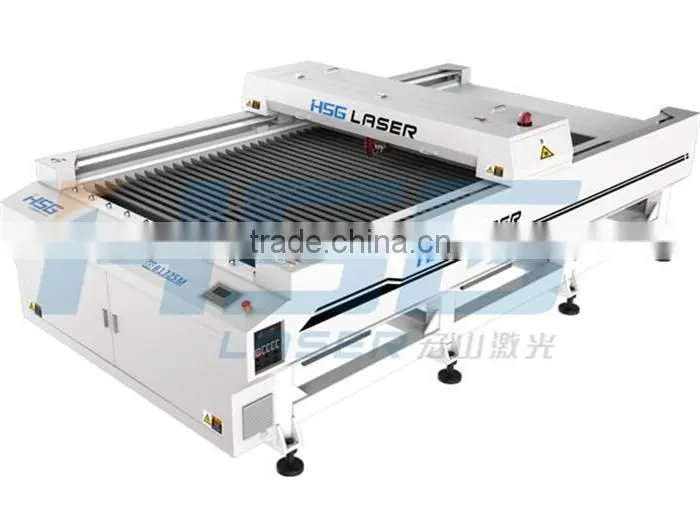

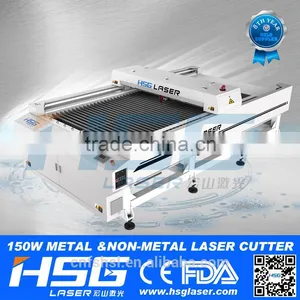

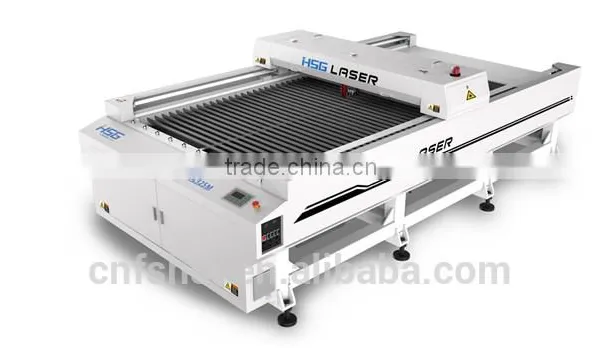

Fast Speed Metal and Nonmetal Laser Cutting Machine for Metal Non Metal Cut
Small Size to save cost for Advertisement Industry
Large Size 1.3mx2.5m Meet Large Size Material Cutting
Advantages
auto tracking laser head - avoid unflatness of metal
long-time stable running - less aftersales problem
perfectly cut 0.5-2mm metal
Product name |
Metal and Nonmetal Laser Cutting Machine |
Working table(mm) |
large scale 2500x3000 / small scale 1300x900 |
Laser power(W) |
150W /200W |
Weight(kg) |
1500KG /900KG |
Machine body size(mm) |
3460X1870X1100mm /1900X1440X1050mm |
Max.Acceleration Speed |
0.2G |
Transmitting System |
Imported steel-strip belt/imported ball screw/stepper motor |
Max.Cutting Speed |
25m/min |
Reprecision |
±0.05mm |
Working Power Supply |
AC220V±10% 50HZ |
X/Y PositionaI Accuracy |
0.05mm/m |
Total power |
≤2.5KVA |
Temperature |
0°C-40°C |
Humidity |
5-85% |
Formats |
CDR,BMP,PLT,GPEG,DXF,DST |
Applicable Materials: Stainless Steel/Carbon Steel/Acrylic/ Plexiglas cutting/Double color board/ ABS board/PVC board/ bamboo/ MDF/ wood/ paper / leather/ fabric/ wool/ rubber/ resin etc.
Applicable Industries: Advertisement( marks/ signs/ billboards/plates) bamboo & wood product/ art craft work/ ornament/ paper-cutting /cloth/ fabric/ hang bag/ glove/ garment/ leather/ embroidery/ shoemaking/ toy/ crystal/ packing & printing/ panel/ mould/ decoration/upholster and other related industries.
Cutting Ability:
stainless steel max. 1.2-2mm
carbon steel max.1.2-2mm
acrylic max. 25-30mm
MDF max. 12-13mm
Plywood max. 18mm
Metal and Nonmetal Laser Cutting Samples

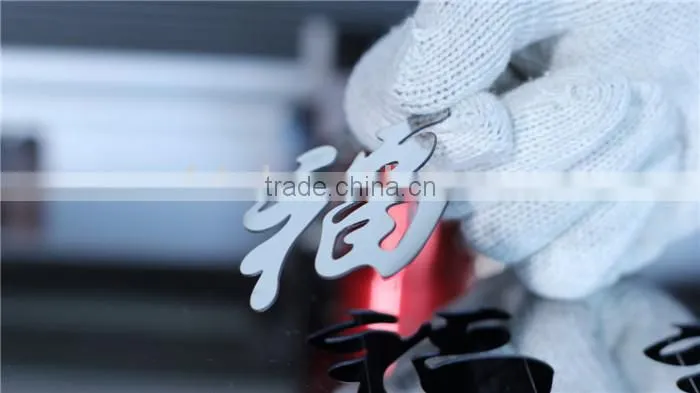

Stainless Steel Laser Cutting

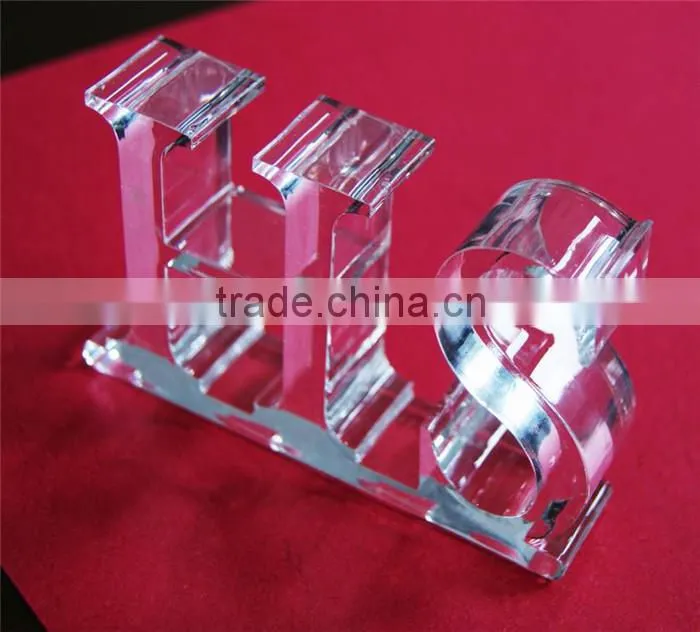

Acrylic Laser Cutting

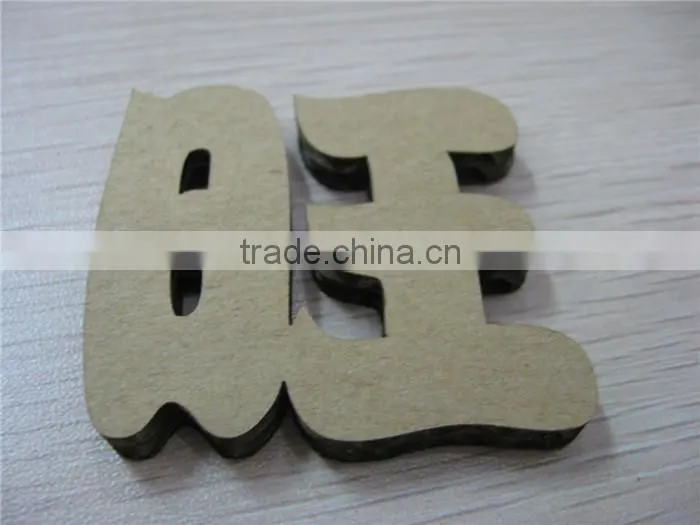

Wood Laser Cutting

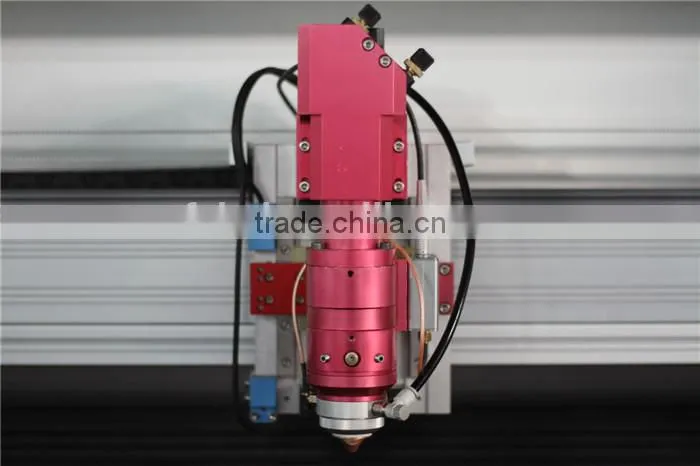

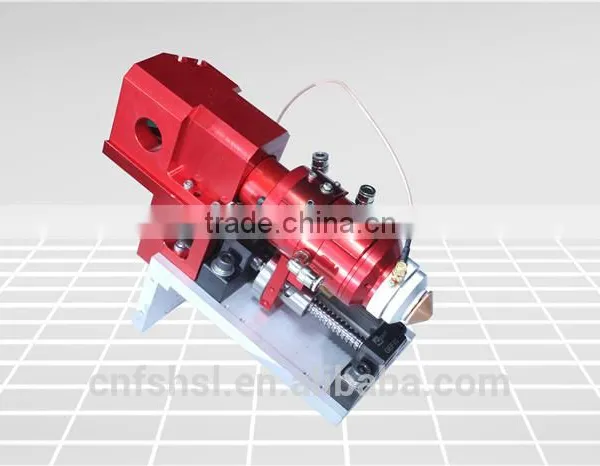

Metal and Nonmetal Cut Laser Head

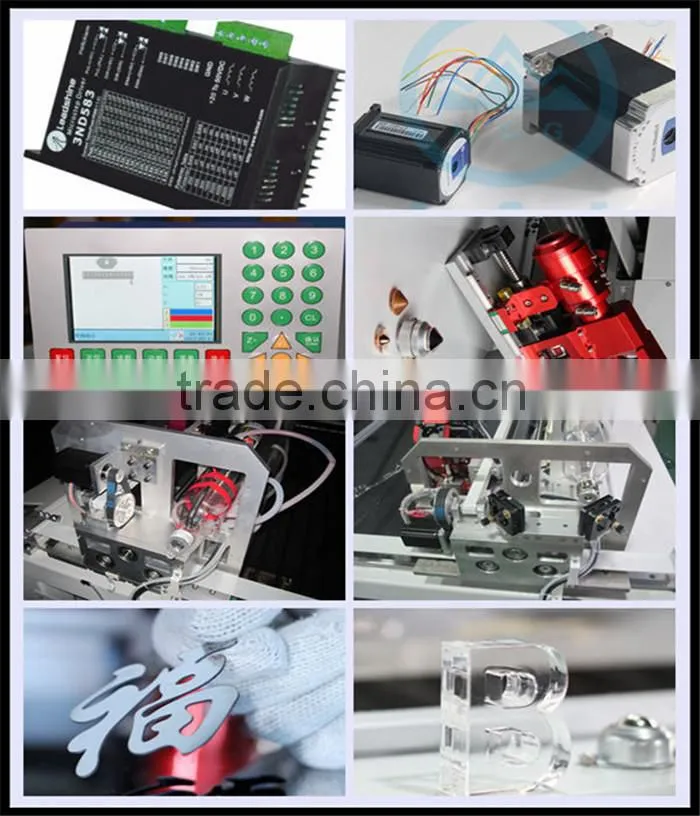

Features Metal and Nonmetal Laser Cutting Machine
5.RD6332G panel control system with 256MB memory storage, compatible with USB, wirenet and various memeries, more functions than Leetro and double memory storage.
6. A Pressure Alarm. Simply a warning when there is no assist gas any more to prevent of materials waste. And oxygen will be turned off for non-metal cutting automatically.
100% materials and parts tested by precise equipment
1. 300 Days Warranty, Yet strict incoming tube test.
2. Only circle laser beam is qualified.
3. Power Meter shows the min. & max. tube power . Average power will be choosen for assembling into machine while the unqualified send back to supplier.
4. 8 Hours Continious Test with Every 7 Seconds break to prevent any possible error.

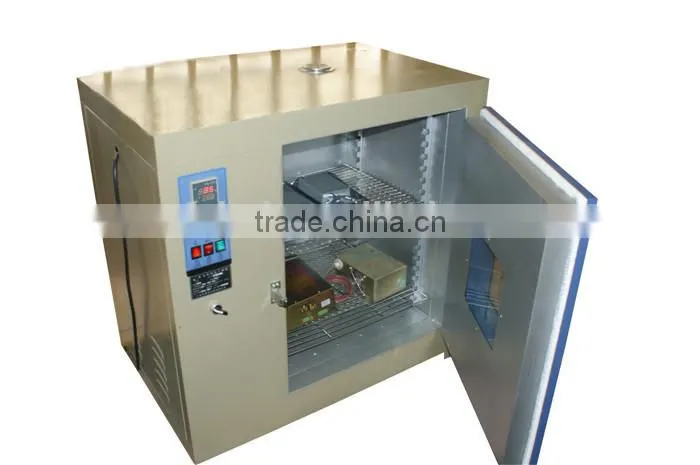

5. Main Parts like Power Supply Box, Motor, Motor Driver, Main Board will be tested up to 52 degree high temperature. There is no problem even you use in desert area.

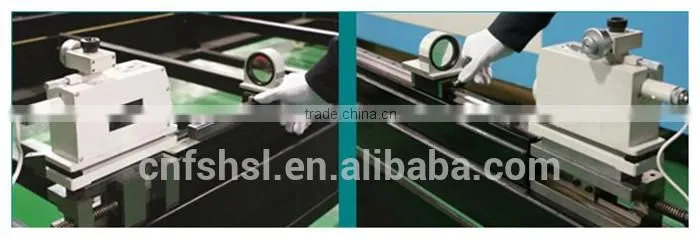

6. All Parts test strictly, pay special attention to the white device. It's Autocollimator. With such a high-tech device, it's easier to test the balance for rail while most of small factories adjust only by technician's familiarity.

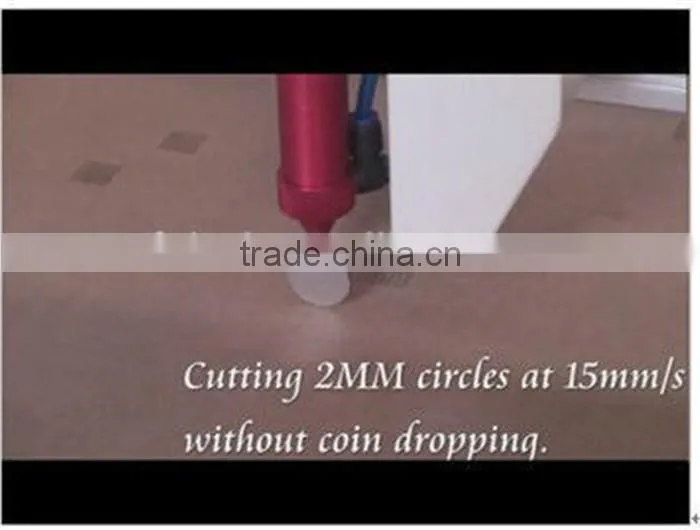

7. After being assembled, we will test machine by 2mm circles. If there is any machine with wrong size or is not round, it's not allowd to be delivered.

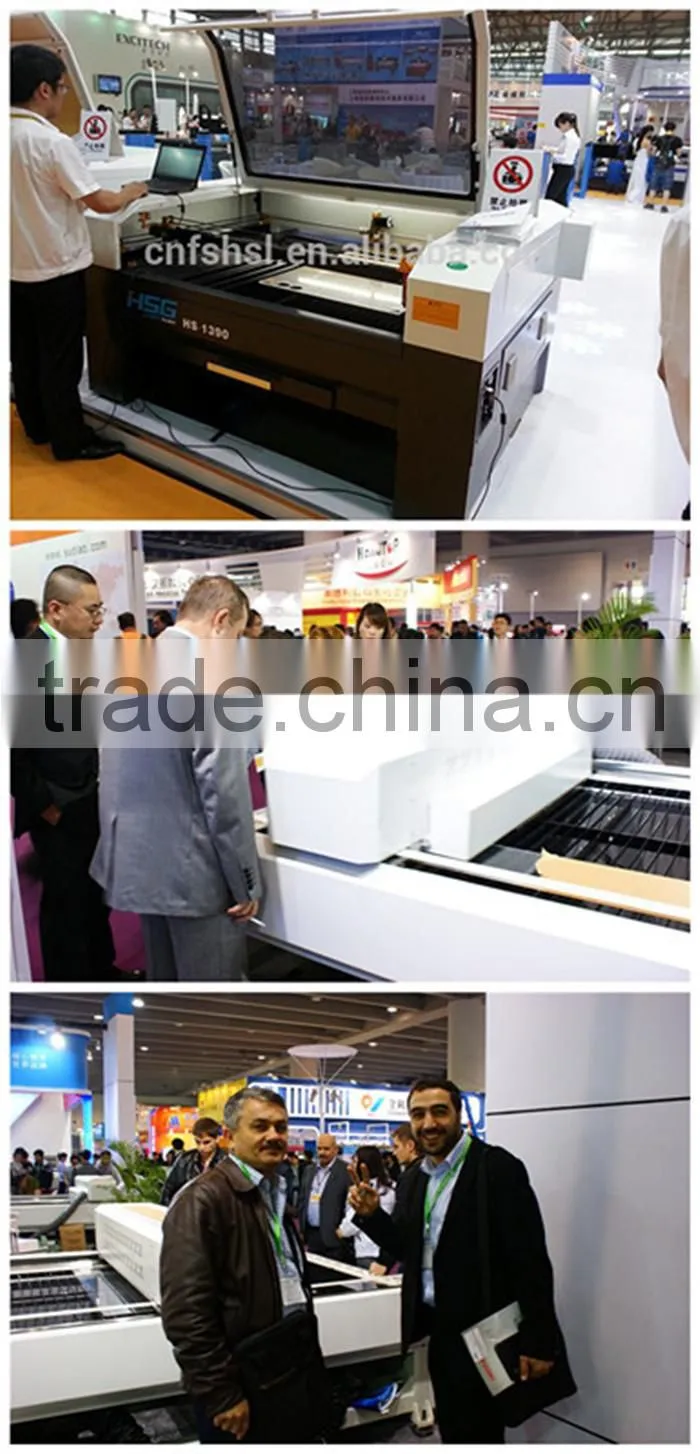

Metal and Nonmetal Laser Cutting Machine on Expo

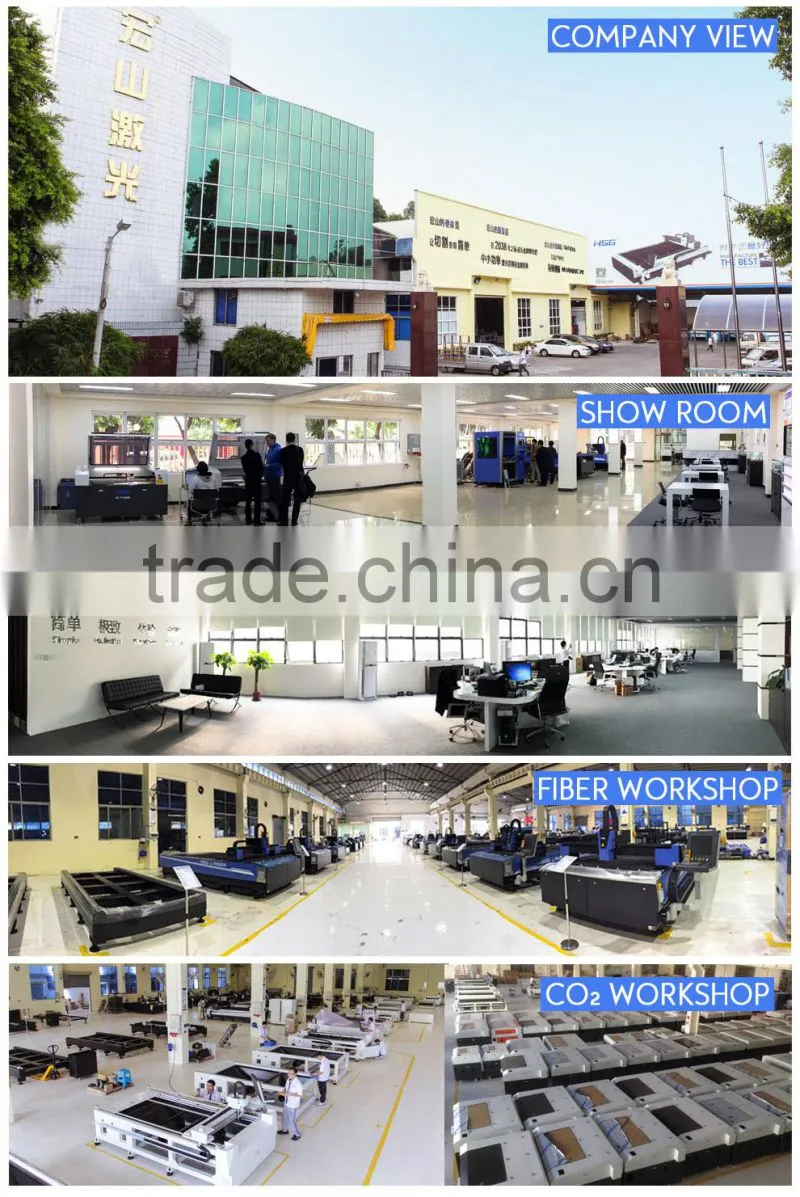

10 Years Experience in Laser Cut
You won't loose but earn from us!
Welcome your inquiry
Metal and nonmetal laser cutting machine is our advantage laser machine.
