P6.67 Outdoor Video Wall Display HD LED Screen With Aluminum Case
US$ 900 - 1,100
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Visionled
Model Number:
SH-P6.67-OD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Outdoor P5 SMD LED Advertising Display for Fixed InstallationUS$ 1,105 - 1,200MOQ: 1 Square Meter -
High Definition P5 Rental Video Led Display Screen Outdoor For Stage RentalUS$ 1,250 - 1,300MOQ: 1 Square Meter
-
Outdoor Rental Screen P10 LED Video Display With 640mm*640mmUS$ 660 - 740MOQ: 1 Square Meter
-
High Quality P8 SMD Full Color Outdoor Video LED BillboardUS$ 660 - 700MOQ: 1 Square Meter
-
High Quality Portable P5 SMD Full Color Rental Outdoor Video LED BillboardUS$ 1,250 - 1,300MOQ: 1 Square Meter
Place of Origin
Guangdong, China
Brand Name
Visionled
Model Number
SH-P6.67-OD
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
Other, 6.67mm, SMD 3in1(3535)
Screen Dimension
960mm*640mm

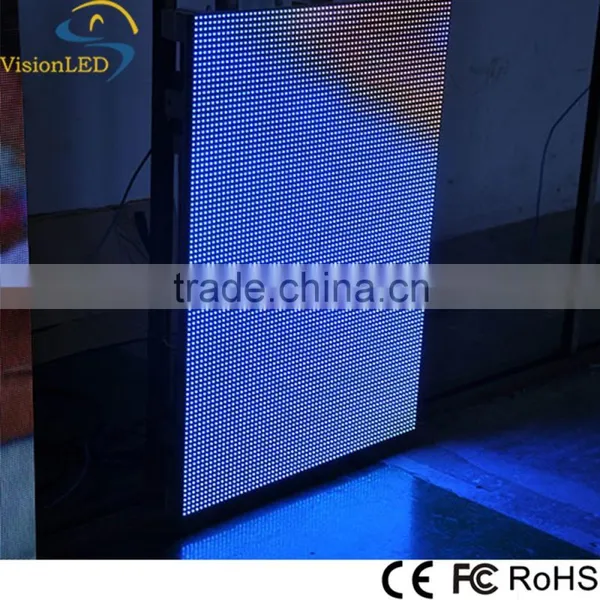

P6.67 Outdoor Video Wall Display HD LED Screen With Aluminum Case
Parameters
| Module | NO. | Item | Parameter |
| 1 | Module Model | SH-P6.67(Outdoor) | |
| 2 | Pixel pitch | 6.67mm | |
| 3 | Module dimension | 320mm*160mm | |
| 4 | Module density | 22500pixel/sqm | |
| 5 | Module resolution | 48*24dots | |
| 6 | LED encapsulation | SMD 3in1(3535) | |
| 7 | Pixel configuration | 1R1G1B | |
| Cabinet | 1 | Dimension | 960mm*640mm*80mm |
| 2 | Physical resolution | 144*96dots | |
| 3 | Module quantity | 12PCS | |
| 4 | Weight | 22kg/PCS | |
| 5 | Material | Die-casting aluminum | |
| 6 | Driving method | Constant current+1/6 scan | |
| 7 | Brightness | ≥6500nits | |
| 8 | Max power consumption | 1000W/SQM | |
| 9 | Average consumption | 500W/SQM | |
| 10 | Frame frequency | 60HZ | |
| 11 | Refresh frequency | >1200HZ | |
| 12 | Gray level | 1024~16384 | |
| 13 | IP grade | IP65 | |
| 14 | Input Voltage | AC100-120V AC200-240V | |
| 15 | Power supply | 5V/60A 4 PCS | |
| 16 | Viewing angle(H/V) | 120°/ 120° |
|
| 17 | viewing distance | 5m-100m | |
| 18 | Working environment | Temperature: -20°C~ 60°C | |
| Humidity:10%~90%RH | |||
| 19 | Control system | Synchronous or Asynchronous Control system | |
| 20 | Display function | Videos | |
| 21 | Certificate | CE Certification (SGS) | |
Product
Function & Advantage

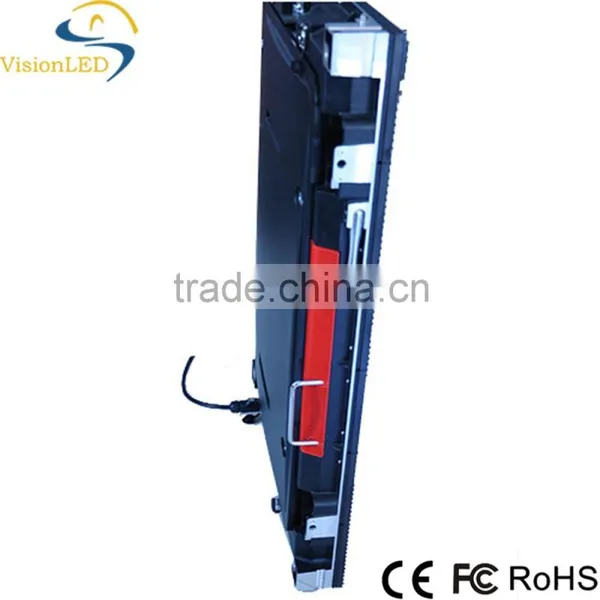

1.Cabinets are made of die-casting aluminium,can be spliced with no crack.
2.P5/P6/P6.67/P8/P10/P16 is optional for you.
3. SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.
4. Work normally without air conditioning for low powe consumption.

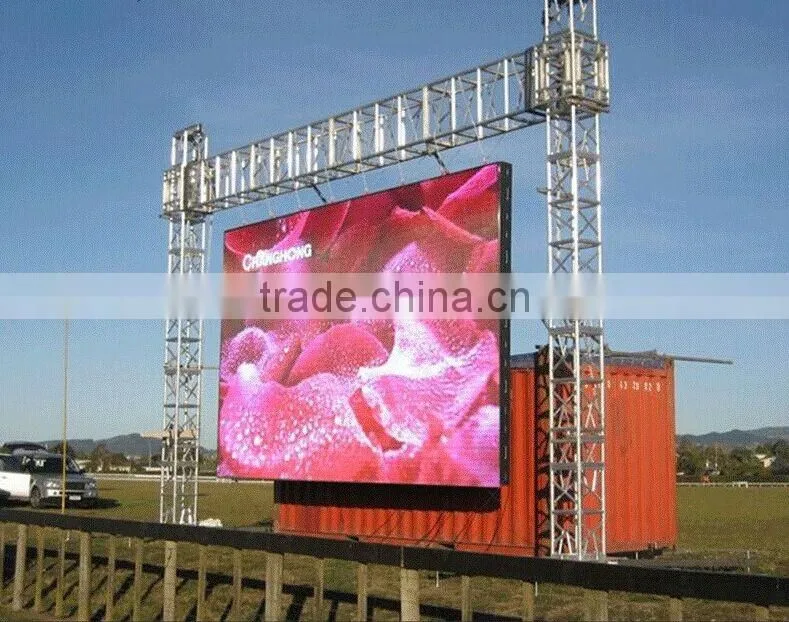

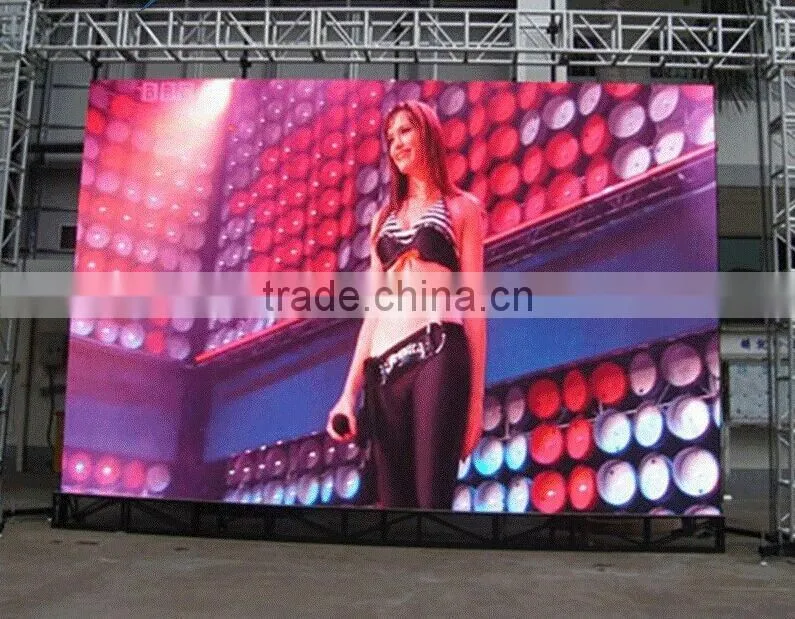

5.Suitable for Outdoor application,big square,shopping malls,railway stations,Airport,stage renting,etc.
2.P5/P6/P6.67/P8/P10/P16 is optional for you.
3. SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.
4. Work normally without air conditioning for low powe consumption.
5.Suitable for Outdoor application,big square,shopping malls,railway stations,Airport,stage renting,etc.
Our service
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.We can provide mature customised solution for you.
Factory Show
Working Diagram
Application
Certificate
