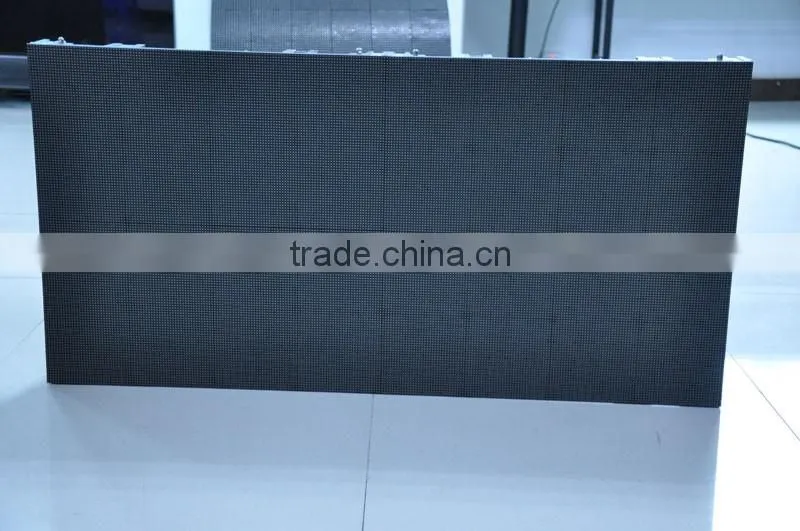

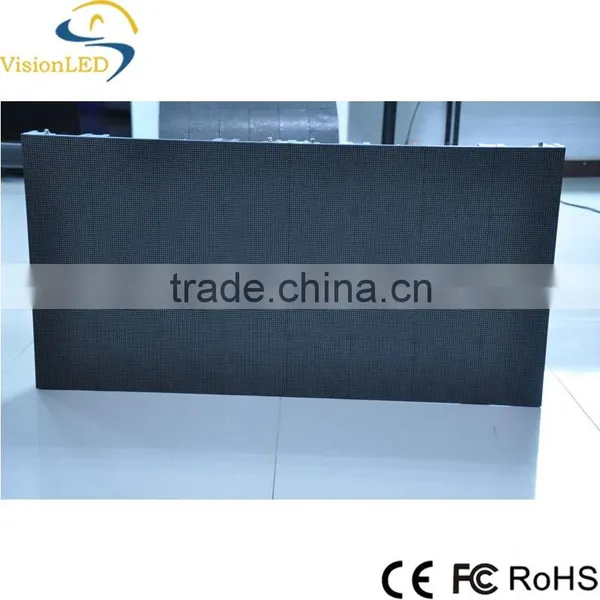

P4 Indoor SMD full color LED display screen
| Module | NO. | Item | Parameter |
| 1 | Module Model | SH-P4(Indoor) | |
| 2 | Pixel pitch | 4mm | |
| 3 | Module dimension | 256mm*256mm | |
| 4 | Module density | 62500 pixel/sqm | |
| 5 | Module resolution | 64*64dots | |
| 6 | LED encapsulation | SMD 3in1(2121) | |
| 7 | Pixel configuration | 1R1G1B | |
| Cabinet | 1 | Dimension | 512mm*512mm*80mm |
| 2 | Physical resolution | 128*128dots | |
| 3 | Module quantity | 4PCS | |
| 4 | Weight | 9kg/PCS | |
| 5 | Material | Die-casting aluminum | |
| 6 | Driving method | Constant current+1/16 scan | |
| 7 | Brightness | ≥1200nits | |
| 8 | Max power consumption | 680W/SQM | |
| 9 | Average consumption | 340W/SQM | |
| 10 | Frame frequency | 60HZ | |
| 11 | Refresh frequency | >1400HZ | |
| 12 | Gray level | 16384~65536 | |
| 13 | Input Voltage | AC100-120V AC200-240V | |

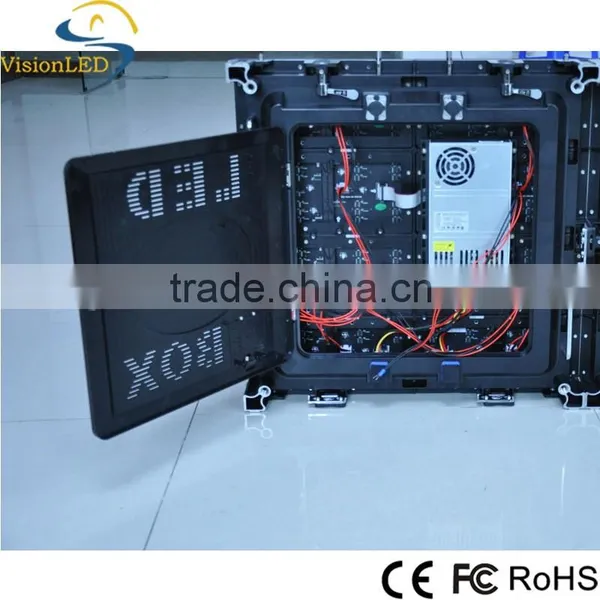

| 14 | Power supply | 5V/70A 1 PCS | |
| 15 | Viewing angle(H/V) | 120°/ 120° |
|
| 16 | viewing distance | 5m-100m | |
| 17 | Working environment | Temperature: -20°C~ 60°C | |
| Humidity:10%~90%RH | |||
| 18 | Control system | Synchronous Control system | |
| 19 | Display function | Videos | |
| 20 | Certificate | CE Certification (SGS) | |

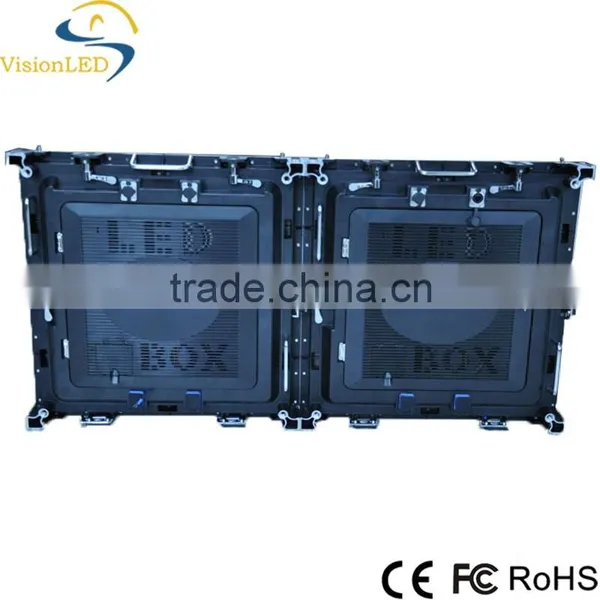

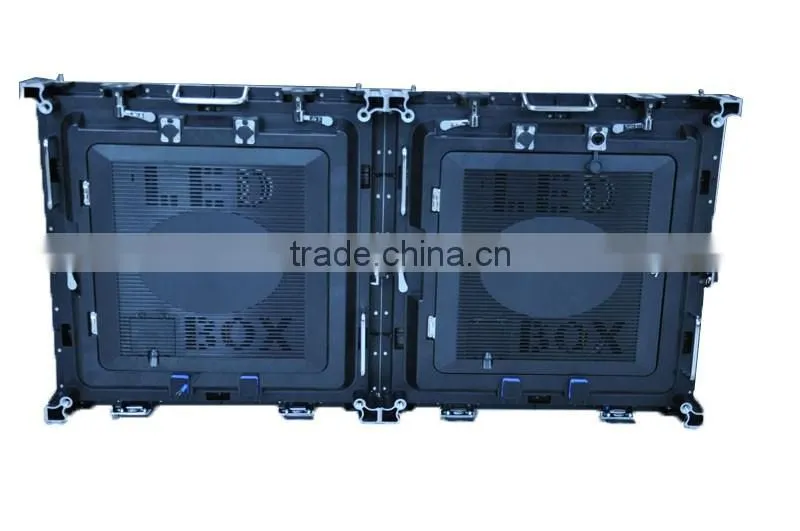

1.Cabinets are made of die-casting aluminium,can be spliced with no crack.
2.P2.5/P3/P3.91/P4/P5/P5.208/P6/P6.25 is optional for you.
3.SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.
4.Work normally without air conditioning for low power consumption.
5.Suitable for Indoor application,big square,shopping malls,railway stations,Airport,stage renting,etc.
Package:standard wooden case or air-flight case or customized .
8pcs cabinet in 1 wooden case, case size:60x70x96cm.
Shipping:By ocean or By air flight
Production time:10-15 working days
1.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
2.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, Indoor/outdoor LED Signs.
3.About VisionLED:professional LED display manufacture, 13 years exporting experience, 7 years golden supplier on Alibaba.We sell what we guarantee,100% responsible for our product. Any query you met, do not hesitate to contact us.
4.Payment terms:T/T ,Western Uion.You can also place order on Alibaba Trade Assuarance, allows credit card payment.
5.Contact:Lina Wang
WhatsApp:0086 13714970305
Skype:cnlina520
Wechat:linawang1983
Email:sales09 at
Welcome your inquiry
You may also inquiry of P2.5,P3,P3.91,P4,P5,P5.208,P6,P6.25.
