| China Steel Corporation certification directly offered silicon steel |
silicon steel
- A. Most type of stators and rotors are using interlock.
- B. All material are from China Steel
- C. Manufacture stamping
- D. Made in Taiwan
| Stator(mm) | Slot | Rotor(mm) | Slot | width | shaft hole |
| 190 | 36T | 140 | 44T/28T | 184W | 32,35,38,42 |
| 180 | 36T | 110 | 44T/28T | 168W | 22,25,30,38 |
| 160 | 36T | 100 | 44T | 157W | 20,25,27,32 |
| 160 | 36T | 96 | 44T | 149W | 20,22,25,27 |
| 160 | 36T | 95 | 44T/28T | 158W | 20,22,25,27,31.85 |
| 160 | 32T | 95 | 44T | 145W | 20,25,31.85 |
| 160 | 24T | 88 | 18T | 159W | 20,25,27,28,32 |
| 160 | 24T | 80 | 16T/34T | 149W | 15,17,20,22,25 |
| 140 | 36T | 85 | 44T/28T | 135W | 20,22 |
| 140 | 36T | 85 | 44T | 130W | 15.7,15,17,20,22,30 |
| 140 | 32T | 85 | 44T | 130W | 17,20,22 |
| 140 | 36T | 80 | 44T | 135W | 15,17,20,22,30 |
| 140 | 24T | 70 | 34T | 130W | 20,22,25,27 |
| 125 | 36T | 75 | 44T | 123W | 16,18,20,22 |
| 125 | 32T | 75 | 44T | 120W | 18,20 |
| 121.7 | 4T | 67.3 | 44T | 124W | 12.7 |
| 114 | 24T | 56 | 28T | 114W | 12,17,20 |
| 114 | 24T | 55 | 29T | 112.5W | |
| 111 | 24T | 67 | 44T | 104W | 10,12,12.7,16 |
| 110 | 36T | 70 | 44T | 107W | 14,16,18 |
| 110 | 24T | 65 | 34T | 100W | 10,12,14,16 |
| 108 | 24T | 70 | 34T | 108W | 12,12.7 |
| 100 | 24T | 53 | 22T | 95W | 8,10,12,15 |
| 90 | 18T | 48 | 23T | 89.5W | 11.5,12.7 |
| 90 | 18T | 48 | 23T | 82W | 8,10 |
| 90 | 24T | 47 | 18T | 88W | 8.03 , 11.6, 12, 14,16 |
| 82 | 16T | 44/46 | 22T | 75W | 8,10 |
| 75 | 16T | 44/46 | 22T | 75W | 8,10 |
| 66.4 | 16T | 46 | 22T | 75W | 8,10 |
-
Packaging & Shipping
Paper box or wooden box. Shipping by vessel

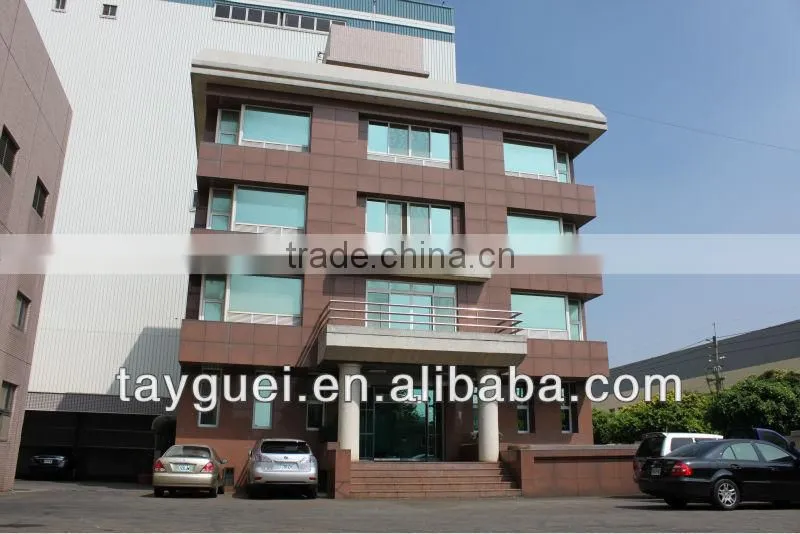

Company InformationCOMPANY INTRODUCTION
Tay Guei Industry Co., LTD & Chuan Den Precision Co., LTD. established in 1984, having been committed to the most professional operations of silicon steel sheet lamination pressing. At present, our products are divided into two major categories:”STANDARD” and “CUSTOMIZED” products which are widely used in the various types of AC/DC motor products, such as desk/stand fans, ceiling fans, pumps, industrial motors…ETC. Furthermore, we developed the silicon steel sheet lamination in 2011 which is conformed to HIGH EFFIENCY MOTOR PRODUCTS of IEC and IE2, IE3 of NEMA and believed to meet with the requirement of consequent high-efficiency ERA.In addition, in order to provide faster service to satisfy the growing demand, we setup Chuan Den Precision Co. LTD. at Dongguan, China in 1990.
Currently, our plant in Taiwan covers the area location of 5,500 square meter and 30,000 square meter in China. The annual output of both plants exceeds more than 50,000 tons. The main material we used comes from Taiwan State-Owned Enterprise, China Steel Corporation, so that we may provide the most special price and highest quality for you. Our customers are included all over the world and we have always followed the most professional QC management and outstanding Technology to serve customers for best achievement.
We sincerely hope that you may grant us an opportunity for us to create the long-lasting and beautiful future for you.
