Electric Power Water Usage Jockey Pump Electric Fire Pump

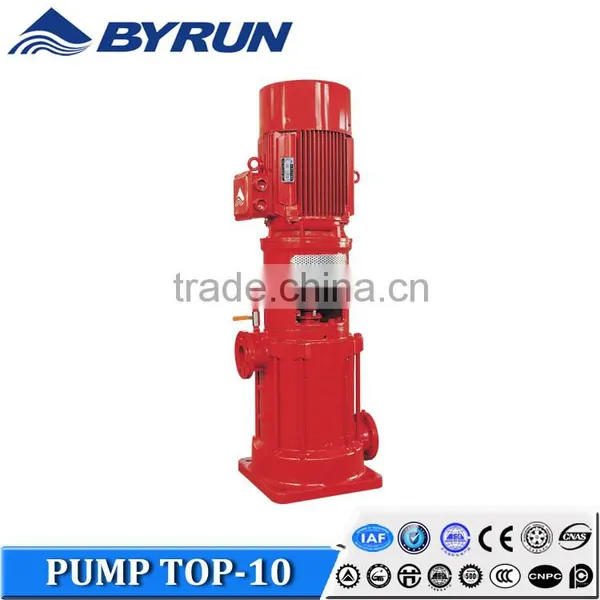

Electric Power Water Usage Jockey Pump Electric Fire Pump photo-1
Electric Power Water Usage Jockey Pump Electric Fire Pump photo-2
Electric Power Water Usage Jockey Pump Electric Fire Pump photo-3
Electric Power Water Usage Jockey Pump Electric Fire Pump photo-4
Electric Power Water Usage Jockey Pump Electric Fire Pump photo-5

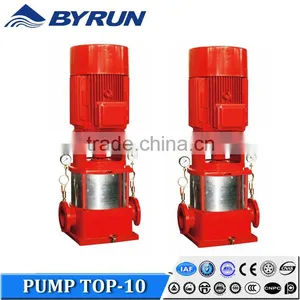

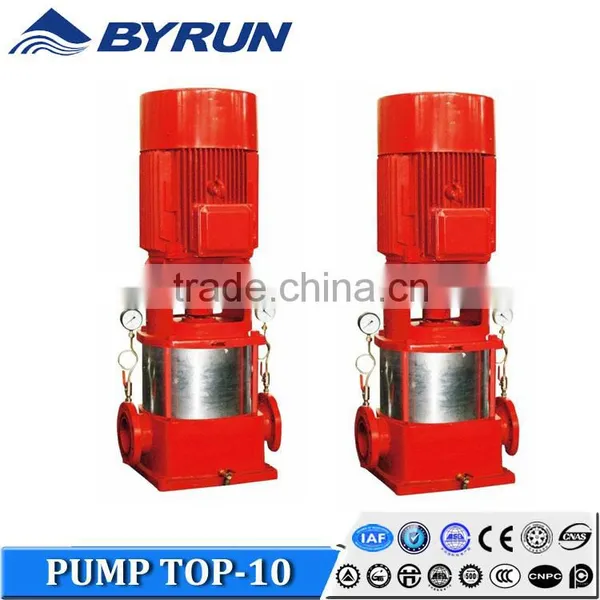

Electric Power Water Usage Jockey Pump Electric Fire Pump photo-6
US$ 100 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Baiyun brand or OEM
Model Number:
XBD-LL series
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu port Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Baiyun brand or OEM
Model Number XBD-LL series
Theory Centrifugal Pump
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, jockey pump
Pressure Other, Low or high pressure
Application Other, jockey pump



Electric Power Water Usage jockey pump electric fire pump

XBD-LL series vertical multi-stage centrifugal fire-fighting pump  Fire Sprinkling Pump



Performance Parameters:
1. Rotating speed: 2900 r/min
2. Flow rate: 18000 to 180000 Liters/hour
3. Head: 25 to 200 meters
4. Diameter: 50 to 150 mm


Working Conditions:
1. Power: 380V, 3-PHASE, 50Hz
2. Medium Temperature: less than 80 °C
3. PH: 5  to 9
4. Working temperature: less than 40 °C
5. Relative humidity: less than 95%
6. Operating environment should be no dust or inflammable gases.
7. Motor: Y series or Y2 series



Material Sheet
Part Material Standrad Code
Inlet section HT200 GB9439
Outlet section HT200/QT500-7 GB9439/GB1348
Middle section HT200/QT500-7 GB9439/GB1348
Guide vane HT200/2Cr13 GB9439/GB1220
Impeller HT200/Copper alloy/stainless steel GB9439/GB1176
Shaft 45/2Cr13 GB699/GB1220
Sleeve 2Cr13 GB1220
Water lubricative bearing Copper alloy GB1176


Applications:
XBD-LL series fire-fighting pump is used for water supply and drainage and fire-fighting systems for high building and factories and mines.

XBD-LL series fire-fighting pump is a new vertical high-speed multi-stage fire-fighting pump designed and developed by our company, we adopt both domestic and foreign advanced technology on the basis of optimized medium-speed fire-fighting pump according to the need of both the market and the fire-fighting applications in accordance with the standard and specifications in “Performance Requirements and Test Methods for Fire-fighting Pumps” of GB6245-1988 issued by the state.


Compared with other factories’ fire-fighting pumps, our XBD-LL series fire-fighting pump has advantages as below:
1. We adopt the best hydraulic model, with high hydraulic efficiency and wide performance range.
2. A compact construction, small land occupation and convenient installation, shaft seal use stuff seal, long lifetime, reliable, without leakage, to keep the pump room dry and clean, energy-saving and environment protection.
3. Competative price and advanced technology.

Electric Power Water Usage jockey pump electric fire pump

Electric Power Water Usage jockey pump electric fire pumpElectric Power Water Usage jockey pump electric fire pumpElectric Power Water Usage jockey pump electric fire pump

Electric Power Water Usage jockey pump electric fire pump
Electric Power Water Usage jockey pump electric fire pump
Electric Power Water Usage jockey pump electric fire pump
Electric Power Water Usage jockey pump electric fire pump

Electric Power Water Usage jockey pump electric fire pump
