Electric Driven Fire Pump Set With Control Panel

Electric Driven Fire Pump Set With Control Panel thumbnail-1
Electric Driven Fire Pump Set With Control Panel thumbnail-2
Electric Driven Fire Pump Set With Control Panel thumbnail-3
Electric Driven Fire Pump Set With Control Panel thumbnail-4
Electric Driven Fire Pump Set With Control Panel thumbnail-5
Electric Driven Fire Pump Set With Control Panel photo-1
Electric Driven Fire Pump Set With Control Panel photo-2
Electric Driven Fire Pump Set With Control Panel photo-3
Electric Driven Fire Pump Set With Control Panel photo-4
Electric Driven Fire Pump Set With Control Panel photo-5
US$ 1,500 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Byrun
Model Number:
QBQS
Contact Supplier Request Quote Chat Now
Guangzhou Baiyun Pump Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu port Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Byrun
Model Number QBQS

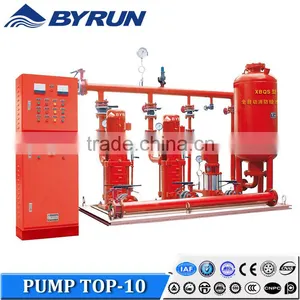

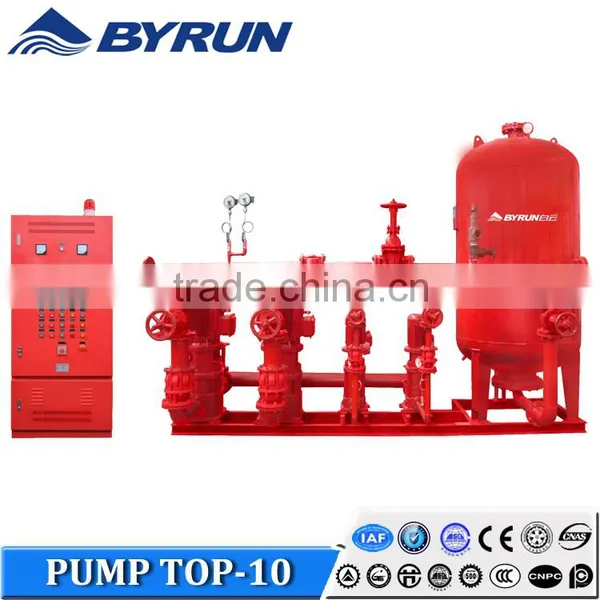

Electric Driven Fire Pump Set with Control Panel

Performance parameter

  • Flow range: 288m3/h
  • Pressure range: 1.6MPa
  • The main pump units: 1~3 Taiwan
  • Auxiliary pump: 1~2 table
  • Control mode: pressure regulator pump, the lower limit pressure control, the main pump fire signal control.
  • Operation: manual, automatic
  • Starting mode: <15kW direct start, soft start

         15~55 star delta start, soft start
         55kW auto coupling buck start, soft start



Running conditions

  • Altitude: less than 1600 meters (more than 1600 special design)
  • Power supply: 3 phase 5 wire, 380V (+ 10%), 50Hz (+ 5%).
  • Ambient temperature: 0 ~ 40
  • Relative humidity: less than 90% without dew
  • Vibration: "0.5g"
  • Tilt angle: more than 5 degrees
  • Environment: indoor use, no corrosive gas, flammable gas, no oil mist, no conductive dust.

Product characteristic advantage

  • Fully functional and fire hydrant water supply and sprinkler system daily voltage regulation capability.
  • The main pump with high reliability, are equipped with a standby pump, to ensure that the possible period of want or need.
  • Diaphragm type air pressure tank used for a long time.
  • Imported or made of high quality components, to ensure reliable control.
  • Fully automatic operation, no need to guard.
  • Can add automatic inspection function, in order to prevent the long-term use of rusty card dead.
  • The cabinet left the remote monitoring terminal, the remote control can be connected with the fire center.



WBQS series fire pneumatic water supply equipment is an intelligent and mechanical-integration high-tech products

It is widely used in fire hydrants and fire engines in various buildings, fire sprinkler system and pressure stabilizing system.

Includes fire pressure water supply equipment and fire pressure stabilizing water supply equipment.





QBQS fire air supply equipment in the regulator as part of the fire, its design purpose:

  1. Used to keep the fire water pressure required by the network.
  1. Used to meet the requirements of water pressure and water requirements of the fire protection facilities in the firefighting facilities after the fire occurred. WBQS fire power supply equipment is for the fire, spray system, the daily regulator and design, design uses equivalent to the QBQS fire air pressure regulator.



Capacity: Up to 200l/s

Temperature: Up to 105°C

Pressure: 1.6Mpa



Electric Driven Fire Pump Set with Control Panel

Electric Driven Fire Pump Set with Control PanelElectric Driven Fire Pump Set with Control PanelElectric Driven Fire Pump Set with Control Panel

Electric Driven Fire Pump Set with Control Panel
Electric Driven Fire Pump Set with Control Panel
Electric Driven Fire Pump Set with Control Panel
Electric Driven Fire Pump Set with Control Panel

Electric Driven Fire Pump Set with Control Panel

Baiyun Pump Group is located in international metroplis-Guangzhou ,which is a research and development, design and sales all kinds of pump,water supply facilities,water treatment equipment pumps and other around products.



33 Years Pump Porduction 5 Modernised Production Base with Total 175000 Square Meters
Pump Top 10 and Machine Top 500  Company More Than 500 Sets Advanced Production and Test Equipment
Annual Output Exceeds 150,000 Sets Professional and High Quality Technical Team with Two Decades
About 2000 Employees OEM Service and Free Technical Support



Electric Driven Fire Pump Set with Control Panel



Electric Driven Fire Pump Set with Control Panel
