Automatic coiled wire steel bar straightening and cutting machine
1. Coiled wire steel bar straightening and cutting machine is a kind of highly effective equipment, it has the following features:
1) Speed can be adjusted
2) Adapt to different workers
3) High efficiency, quick modulation speed, smaller error and material loss to a minimum
This machine is efficient for cutting steel bars on project. It can cut different kinds of round steel bar and deformed steel bar. It’s made of high steel knife seat and connecting shaft, international standard high speed motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and easy moving with four wheels and the knife can be manually controlled.
2. Technical parameter of Coiled wire steel bar straightening and cutting machine:
Model No. |
YGTQ4-12(1) |
YGTQ 4-12(2) |
Round steel bar |
φ 4-φ 12mm |
φ 4-φ 12mm |
Deformed steel bar |
φ 4-φ 10mm |
φ 4-φ 10mm |
Cutting length |
300mm-8400mm |
300mm-8400mm |
Cutting error |
±10mm |
±10mm |
Straighten speed |
40-45m/min |
40-45m/min |
Straighten and pulling motor |
7.5kw |
7.5kw |
Cutting motor |
5.5kw |
/ |
L*W*H |
2.0×0.64×1.3m |
1.9×0.84×0.9m |
Machine weight |
900kg |
650kg |

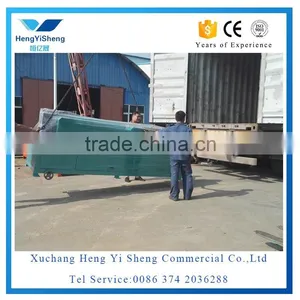

3. Machine pictures of Coiled wire steel bar straightening and cutting machine
YGTQ 4-12(1) Coiled wire steel bar straightening and cutting machine:
YGTQ 4-12(2) Coiled wire steel bar straightening and cutting machine:
1. Help you choose the most suitable machine.
2. Customize the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. We offer full set of spare parts and tools for convenient use.
5. We can send our engineer abroad to training customers to operate the machine.
6. Normally any problem can be resolved online together with our customers. If necessary, We can send our engineer over sea.
1. What's your payment method?
Payment: 40% T/T in advance and balance 60% after inspection confirmation before shipment.
2.What is the delivery time?
The deliver time is within 7 days after receiving the deposit.
3. What services do you provide?
We provide our customers with 1 year warranty and technical support is provided for free.
4. How to get to your factory?
You can fly to Zhengzhou airport, Henan province, we will arrange to pick you up.
5.Any other need to inquiry, welcome here.
