Automatic steel bar straightener and cutter machine, Hydraulic steel bar straightener and cutter
Technical Parameters of steel bar straightener and cutter:
Model No. |
YGTQ4-12(1) |
YGTQ 4-12(2) |
YGTQ5-14 |
YGTQ6-16 |
Round steel bar |
φ 4-φ 12mm |
φ 4-φ 12mm |
φ 5-φ 14mm |
φ6-φ18mm |
Deformed steel bar |
φ 4-φ 10mm |
φ 4-φ 10mm |
φ 5-φ 12mm |
φ6-φ16mm |
Cutting length |
300mm-8400mm |
300mm-8400mm |
300mm-8400mm |
500mm-9500mm |
Cutting error |
±5mm |
±5mm |
±5mm |
±5mm |
Straighten speed |
40-45m/min |
40-45m/min |
50-55m/min |
60-80m/min |
Straighten and pulling motor |
7.5kw |
7.5kw |
11kw |
15kw |
Cutting motor |
5.5kw |
5.5kw |
5.5kw |
5.5kw |
L*W*H |
2.0*0.64*1.3m |
1.9*0.84*0.9m |
2.9*0.64*1.3m |
4000*650*1200mm |
Machine weight |
900kg |
650kg |
1200kg |
1500kg |
Features of steel bar straightener and cutter:
1) Speed can be adjusted
2) Adapt to different workers
3) High efficiency, quick modulation speed, smaller error and material loss to a minimum
This machine is efficient for cutting steel bars on project. It can cut different kinds of round steel bar and deformed steel bar. It’s made of high steel knife seat and connecting shaft, international standard high speed motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and easy moving with four wheels and the knife can be manually controlled.

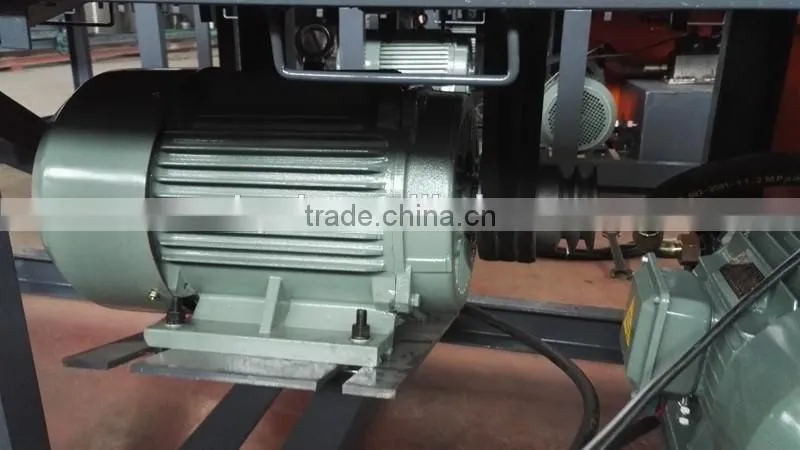

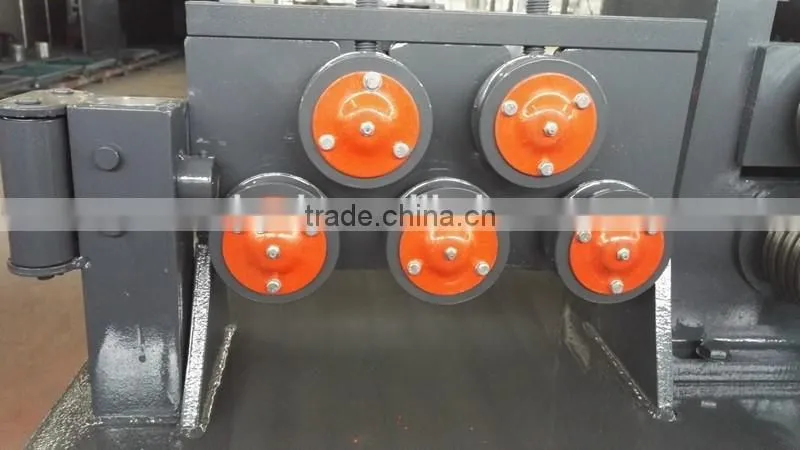

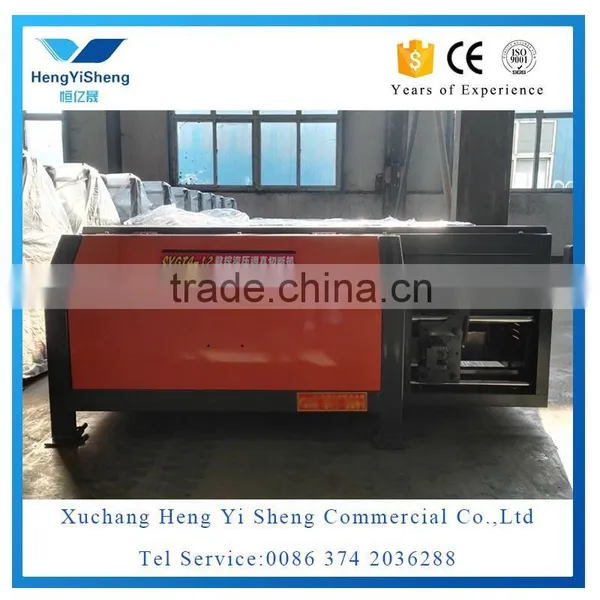

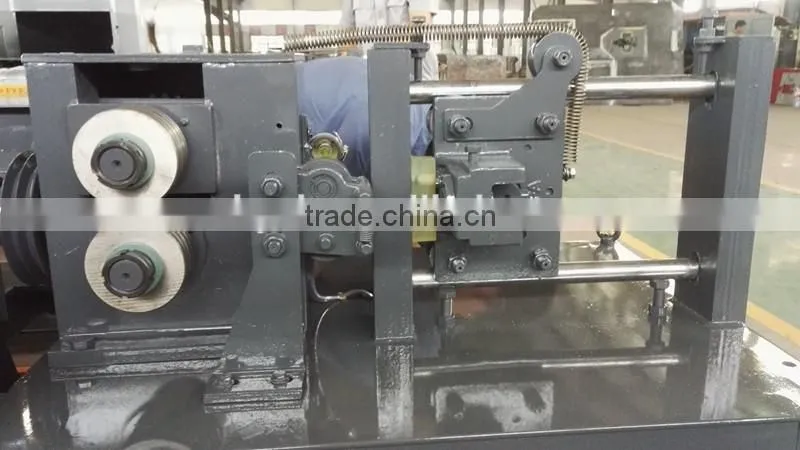

Detailed pictures of steel bar straightener and cutter:

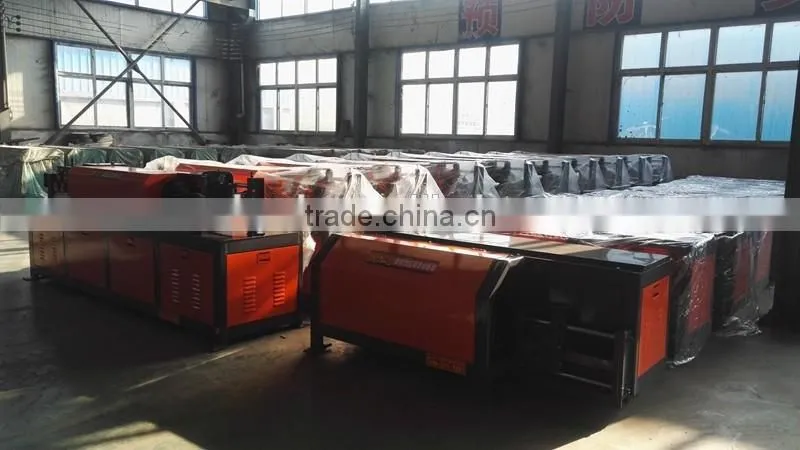

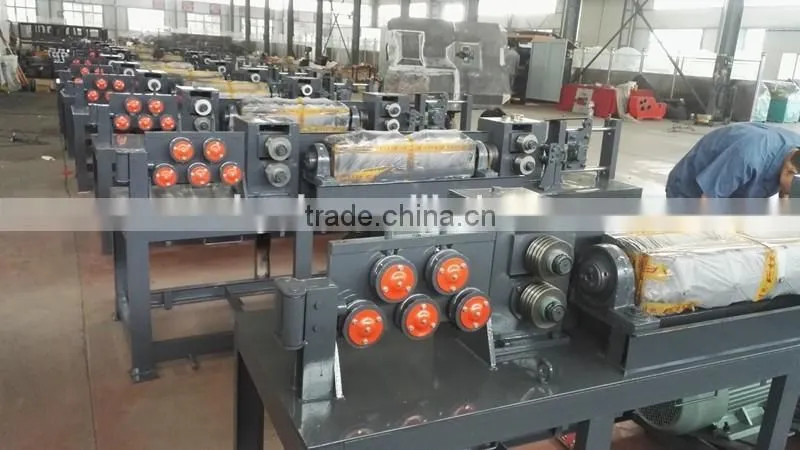

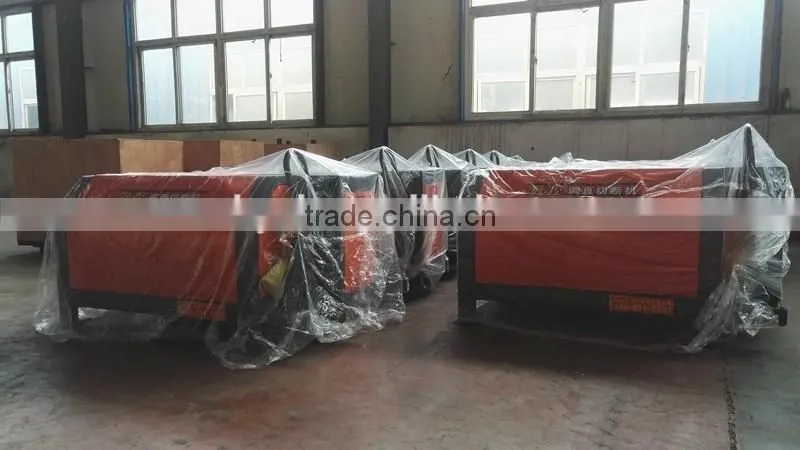

Workshop show of steel bar straightener and cutter:
1. What's your payment method?
Payment: 40% T/T in advance and balance 60% after inspection confirmation before shipment.
2. What is the delivery time?
The deliver time is within 7 days after receiving the deposit.
3. What services do you provide?
We provide our customers with 1 year warranty and technical support is provided for free.
4. How to get to your factory?
You can fly to Zhengzhou airport, Henan province; we will arrange to pick you up.
5. Any other need to inquiry, welcome here.

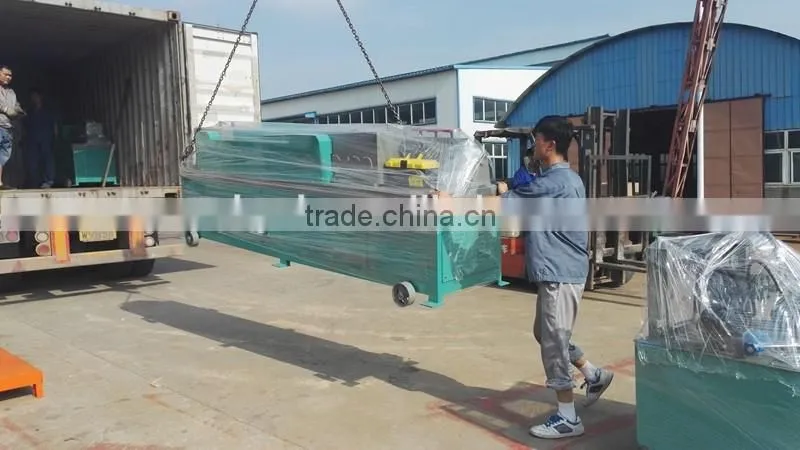

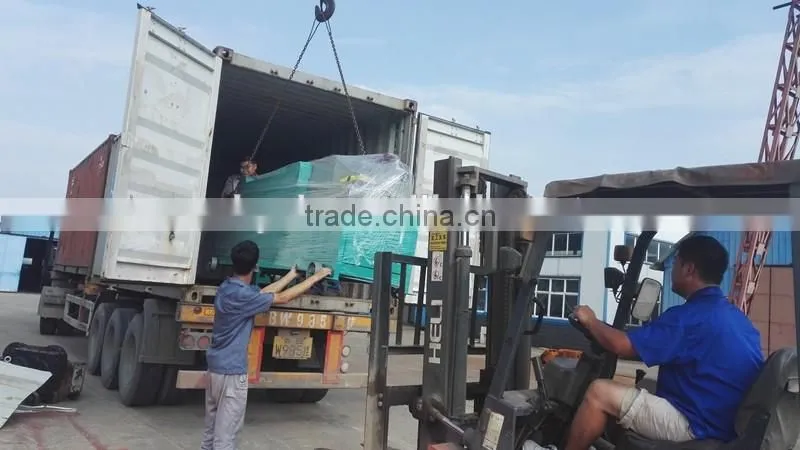

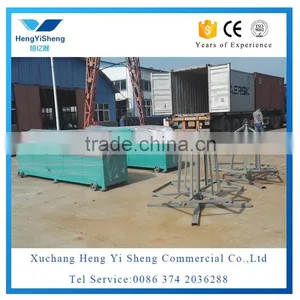

Package and delivery of steel bar straightener and cutter:
