Competive price rebar straighten and cutting machine, steel wire rod straightening and cutting machine
1. Rebar straighten and cutting machine is a kind of highly effective equipment, it has the following features:
1) Speed can be adjusted
2) Adapt to different workers
3) High efficiency, quick modulation speed, smaller error and material loss to a minimum
This machine is efficient for cutting steel bars on project. It can cut different kinds of round steel bar and deformed steel bar. It’s made of high steel knife seat and connecting shaft, international standard high speed motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and easy moving with four wheels and the knife can be manually controlled.
2. Technical parameter of rebar straightening and cutting machine:
Model No. |
YGTQ4-12(1) |
YGTQ 4-12(2) |
YGTQ5-14 |
Round steel bar |
φ 4-φ 12mm |
φ 4-φ 12mm |
φ 5-φ 14mm |
Deformed steel bar |
φ 4-φ 10mm |
φ 4-φ 10mm |
φ 5-φ 12mm |
Cutting length |
300mm-8400mm |
300mm-8400mm |
300mm-8400mm |
Cutting error |
±10mm |
±10mm |
±10mm |
Straighten speed |
40-45m/min |
40-45m/min |
50-55m/min |
Straighten and pulling motor |
7.5kw |
7.5kw |
11kw |
Cutting motor |
5.5kw |
/ |
5.5kw |
L*W*H |
2.0×0.64×1.3m |
1.9×0.84×0.9m |
2.9×0.64×1.3m |
Machine weight |
900kg |
650kg |
1200kg |
3. Machine pictures of each model:

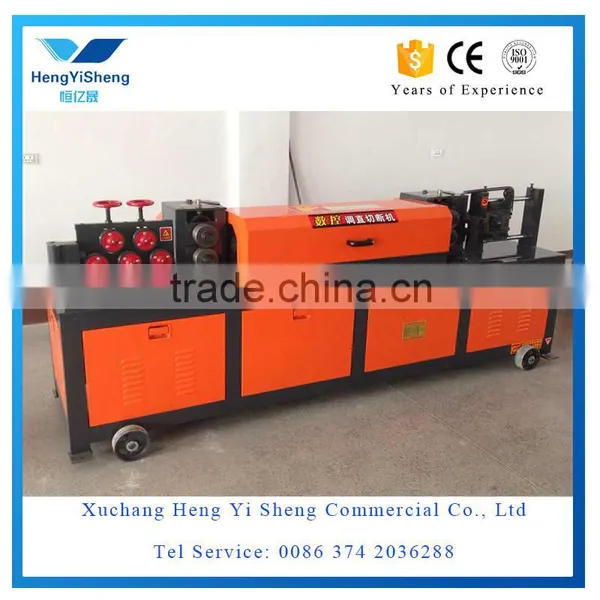

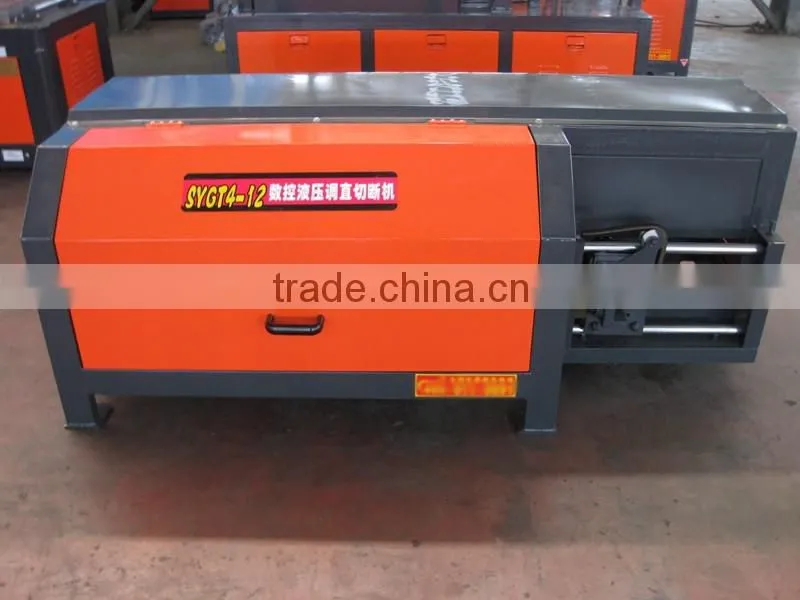

YGTQ 4-12(1) rebar straightening and cutting machines:

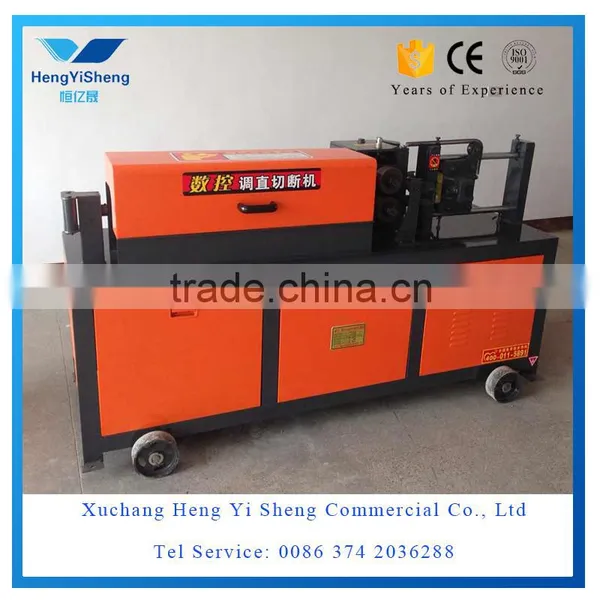

YGTQ 4-12(2) rebar straightening and cutting machines:
YGTQ 5-14 rebar straightening and cutting machines:
1. What's your payment method?
Payment: 40% T/T in advance and balance 60% after inspection confirmation before shipment.
2. What is the delivery time?
The deliver time is within 10 days after receiving the deposit.
3. What services do you provide?
We provide our customers with 1 year warranty and technical support is provided for free.
4. How to get to your factory?
You can fly to Zhengzhou airport, Henan province; we will arrange to pick you up.
5. Any other need to inquiry, welcome here.
Xuchang Heng Yi Sheng Commercial Co.,LTD was founded in 1990, our company located in Xuchang City, Henan Province, which are specialized in R&D, manufacturing, marketing construction machines and children amusement equipment. Our main products includes CNC stirrup bending machine, Pipe bending machine, rebar straightening and cutting machine, Steel bar spiral machine,Steel pipe surface derusting machine, Rebar bender, Rebar cutter, Children excavator etc.
Heng Yi Sheng products are equipped with high-quality material and advanced technology. Our products have sold to many countries in Middle East, Asia, Africa, America ect, and got high praise from clients.
