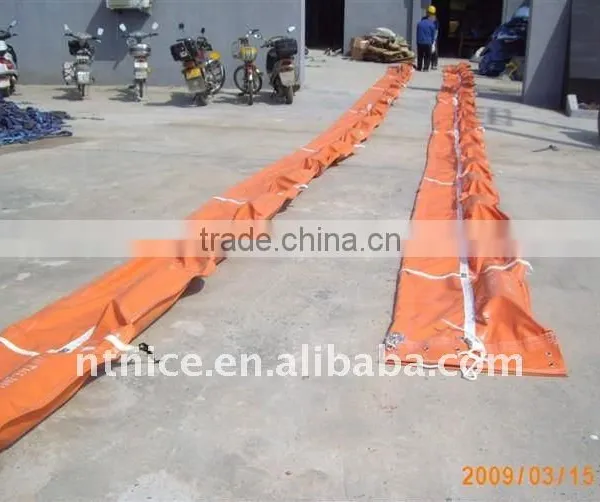

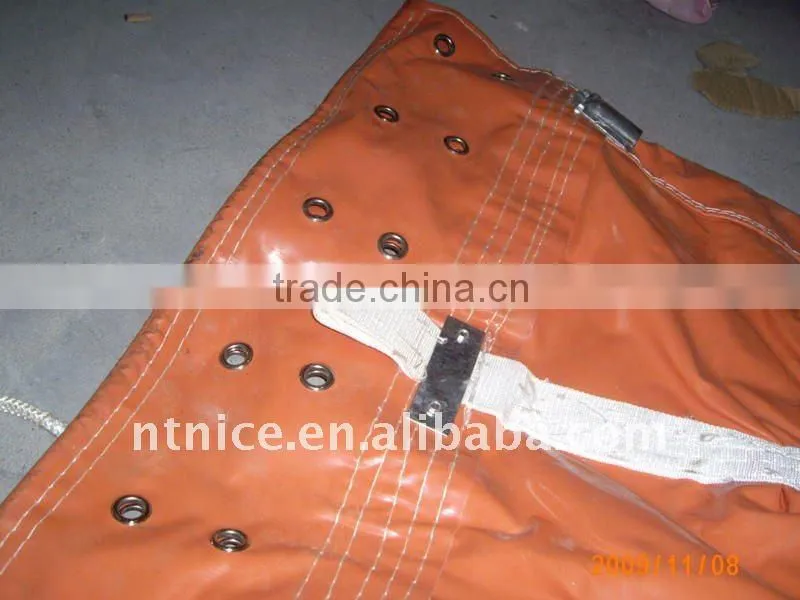

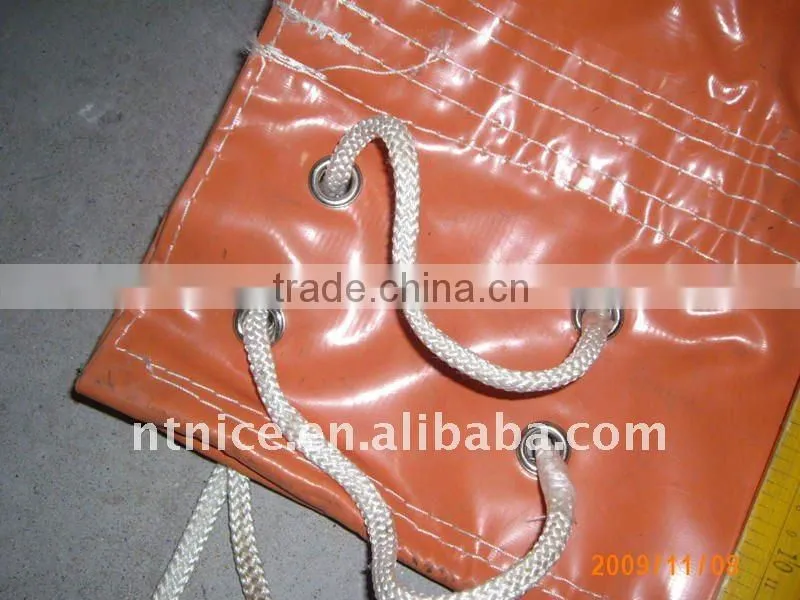

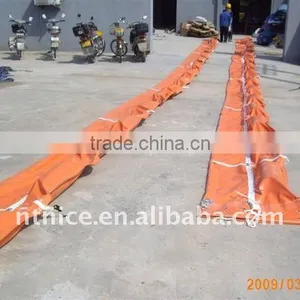

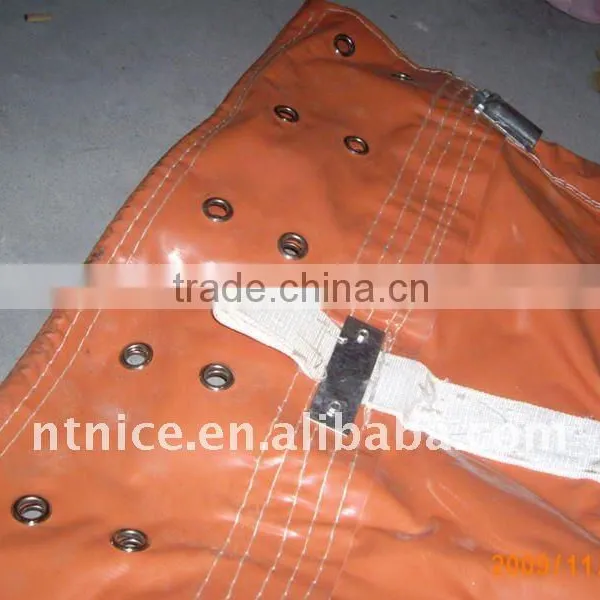

PVC BOOM

Specifications

It contains spilt oil and flowtable fire. It's performance will be enhanced by of fire fighting foam



PVC BOOM



Feature:
1. It contains spilt oil and flowtable fire. It's performance will be enhanced by of fire fighting foam.
2. It is also used in U-configuration to take a patch of oil from an area, shift and thicken oil for easily igniting and safety burning in on-site burning operation.
STRUCTURE:

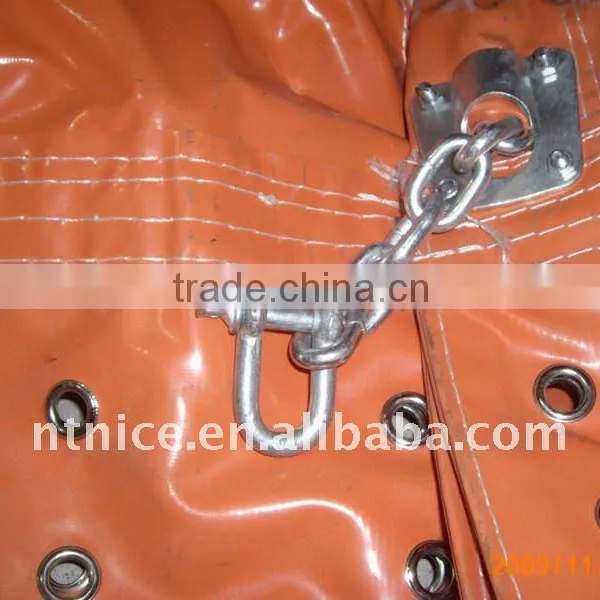

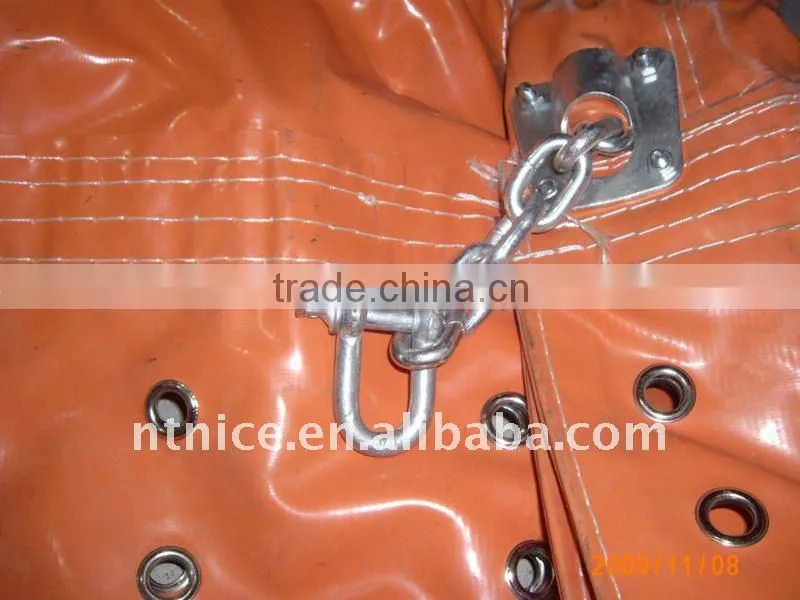

1. Floats and end connectors made of heat-resistant steel; Heat-resistant flexible sections between floats
2. The skirt in water is made of PVC double-face coated fabric or rubber.
3. Three tension members: Top wire of heat-resistant steel, middle strap belts and bottom ballast chain.
4. Sections of boom are stored in shelves. The shelves are piled up for shipment and storage.





Item	JJJ600	JJJ 700	JJJ 800	JJJ 900	JJJ 1000	JJJ 1100
hight(mm	600	700	800	900	1000	1100
Freeboard (mm)	180	260	250	330	325	320
Draught (mm)	320	400	410	540	650	770
Standard section length(m)	20,15,10
Tensile strength (KN)	20	40	55	65	75	85
weight(kg/m)	3.7	6.2	7.1	8.4	9.3	9.5
Float weight ratio	3.9	5.6	4.9	6.2	5.6	5.5
Maximum wave height of anti (m)	0.5	1	1.5	1.8	2	2
Maximum wind height of anti (m/s)	10	15	15	18	18	20
Maximum wind height of anti (Kn)	1	1.5	2	2	2.5	2.5
20m Packing size (m)	1×1×0.6	12×1×1	1.3×1.1×1.1	1.4×1.5×1.2	1.4×1.6×1.3	1.4×1.7×1.4
