3 meters Free sample GYTA53 144 cores direct burial fiber cable
Specifications
GYTA53 fiber optic cable
1.armored with steel tape
2.high density fiber
3.factory direct price
4.OEM/ODM
Product Information:
Type |
Fiber optic cable |
Model No. |
GYTA53 |
Conductor |
Optic fiber |

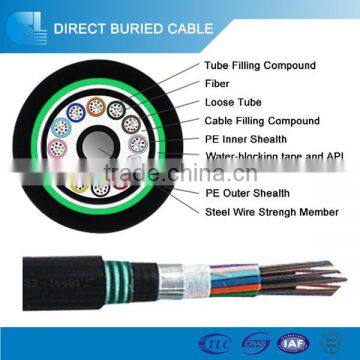

Structure |
Layer stranded |
Conductor No. |
4-144 |
Central Strength Member |
Steel wire or FRP |
Inner sheath |
Aluminum tape-PE |
Outer sheath |
Corrugated |
Loose tube |
PBT |
Application:
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation in harsh
environments where mechanical impact on the cable is to be expected. E. G. Direct buried application. They are also
suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Features:
1. Up to 432 fibers.
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in
the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
4. Metal strength member provides excellent strain performance.
Technical data: | ||||||||
Fiber Num. |
Outer diameter (mm) |
Weight (kg/km) |
Min.Bending radius(mm) |
Tension (N) |
Crash loading (N/100mm) |
|||
Static |
Dynamic |
Short term |
Long term |
Short term |
Long term |
|||
2-24 |
13.3 |
210 |
12.5 times O.D. |
25 times O.D. |
3000 |
1000 |
3000 |
1000 |
26-36 |
13.6 |
220 |
||||||
38-60 |
14.1 |
225 |
||||||
62-72 |
14.6 |
255 |
||||||
74-96 |
16.2 |
305 |
||||||
98-120 |
17.7 |
350 |
||||||
122-144 |
19.1 |
395 |
||||||
146-216 |
19.6 |
420 |
||||||
218-240 |
22.8 |
530 |
||||||
242-288 |
25 |
620 |
||||||
Company Profile
Hunan Guanglian Photoelectricity Technologies Co., Ltd is a professional enterprise on fiber optic cable at widely range of outdoor fiber optic
/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /ADSS and OPGW for power system transmission.
Our Services
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirements and description.
♦ Please send us inquiry for more products info and we will give you feedback ASAP
system transmission.
Basic information
Product/Service(we sell): outdoor fiber optic/ aerial fiber optic cable/ duct fiber optic cable/ directly buried fiber optical cable/ ADSS, OPGW and OPPC.
Factory Information
|
Factory Size (ters): |
1,000-3,000 square meters |
|
Number of Production Lines: |
4 |
|
Number of R&D Staff: |
5 - 10 People |
|
Number of QC Staff: |
5 - 10 People |
|
Management Certification: |
ISO9001 |
|
Contract Manufacturing: |
OEM Service Offered Design Service Offered |
Packing and shipping
1. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
2. Sheath mark
The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
a. Supplier: Guanglian or as cuctomer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
1. Shipping: Generallyby sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Span length: 50meter to 800meters is available
3. Fiber type: Various kind of Single mode or multi mode is available
4. Line Voltage: 10kV, 35kV, 110kV or 220kV
5. Order Quantity
Hunan guanglian photoelectricity technologies Co.,Ltd is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.
1. The Gate of Factory
2. Raw Material
3. Production Line
4. Fiber Optic Cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
Send the enquiry to get the free sample!
