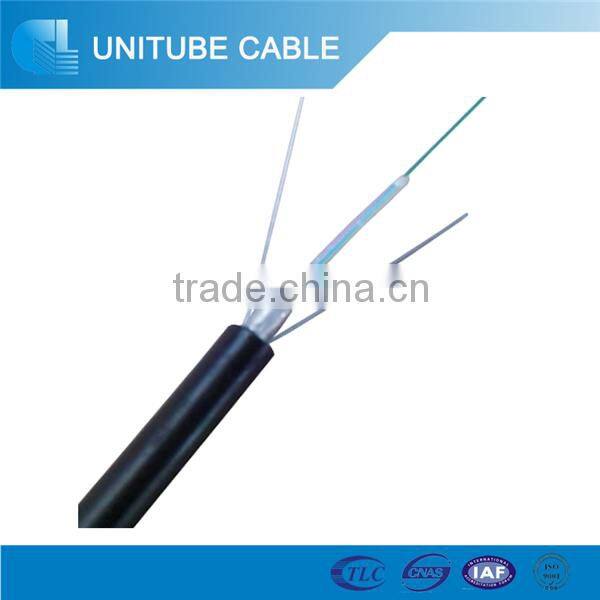

Unitube Light-armored Fiber Optic Cable (GYXTW)
Description
In the GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
Application : Aerial/ Duct
Temperature Rage:
Storing temperature:-40℃ to +70℃
Operating temperature:-40℃ to +70℃
Characteristics:
*Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
*Critical protection to fibers, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube.
*Special compact structure to avoid the loose tube shrinkage.
*Excellent crush resistance and flexibility.
*PSP enhances the cable crush-resistance, impact-resistance and moisture-proof.
*Two parallel steel wires ensure tensile strength.
*Small diameter, light weight and installation friendliness with long delivery length.
* Excellent ultraviolet prevention with PE sheath.
Standards
Comply with standard YD/T 769-2010
Technical Parameters
Cable Type (by 2fibers) |
Fiber Count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static/Dynamic mm |
|
GYXTW 2 ~12 |
2 ~ 12 |
8.2 |
78 |
600/1500 |
300/1000 |
10D/20D |
Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.
Photo show:
1. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
2. Sheath mark
The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
a. Supplier: Guanglian or as cuctomer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3
3. Order Quantity
Hunan guanglian photoelectricity technologies Co.,Ltd is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.
1. The Gate of Factory
2. Raw Material
3. Production Line
4. Fiber Optic Cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
5. Wooden Drums
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
