Specifications
1. Optical Ground Wire opgw cable with best price2. OEM is acceptable
3. Superior electrical performance and lightning resist

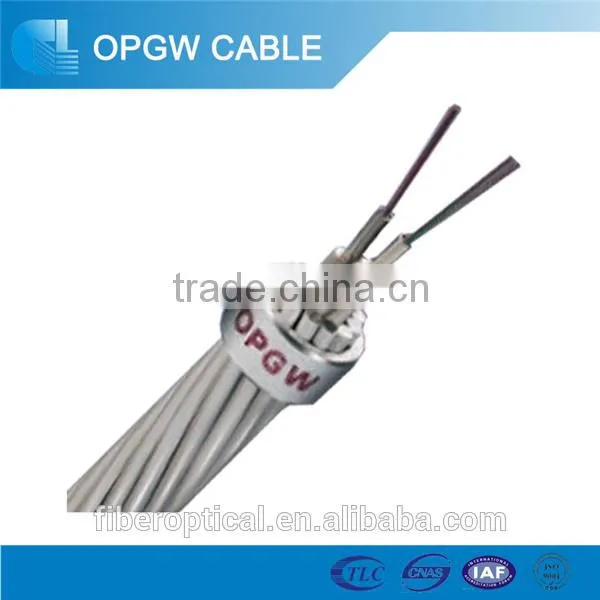

OPTICAL GROUND WIRE OPGW CABLE Central S.S tube
1. Easy to maintain, easy for line span, its mechanical property can meet a big line span;
outer OPGW is metal armoring, with no influence for high pressure electro-corrosion and degradation;
2. To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv;
Application
1. OPGW cable is mainly used in 500KV, 220KV and 110KV lines, limited by power cut, security and other elements, mostly used in new lines.
2. Its applications are: high pressure over110kv, with a longer span (usually over 250M);
1. Central Aluminium-Coated steel(ACS) Tube Single Stranded Layer
2. Central Stainsteel tube single layer design
Note:
3. Specially designed Cable structure is available on request.

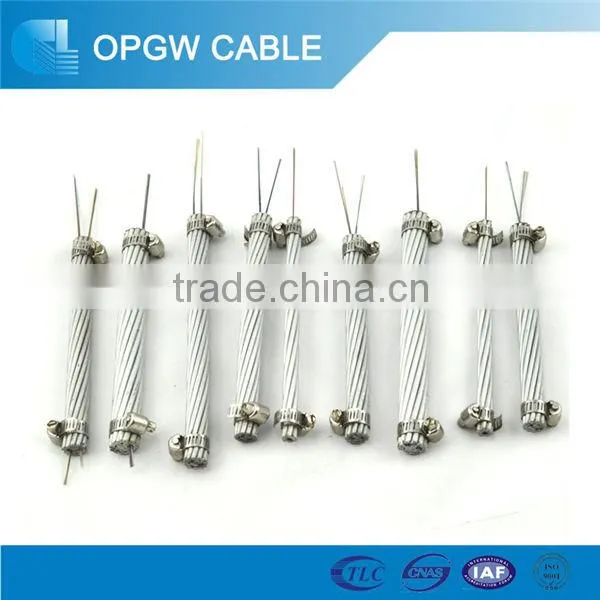

Photo show:
| Standard Packaging | Reeled by wooden Drum suitable for long-distance shipment | |||||||||
| Normal cable factory length |
Standard delivery length is 3000m with a tolerance of 5% or other required |
|||||||||
| Cable Weight | Approx. 450kg/km ~900kg/km | |||||||||
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 15~25 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3
3. Cross section, Short circuit current capacity, tension strength.
3. Order Quantity
Hunan guanglian photoelectricity technologies Co.,Ltd is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.

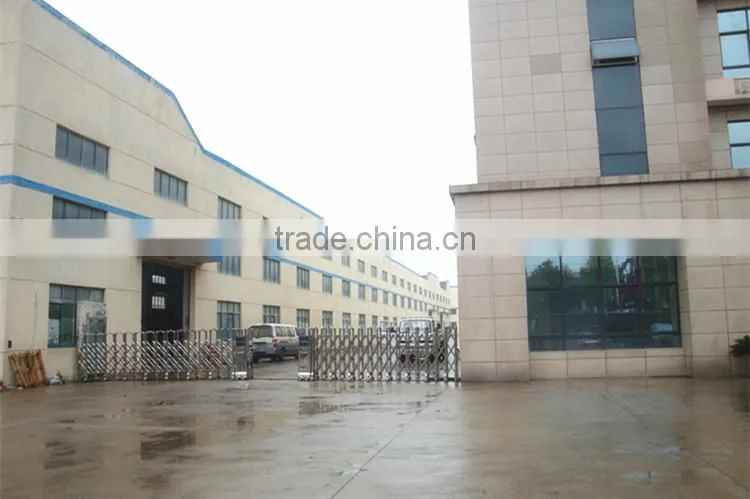

1. The Gate of Factory

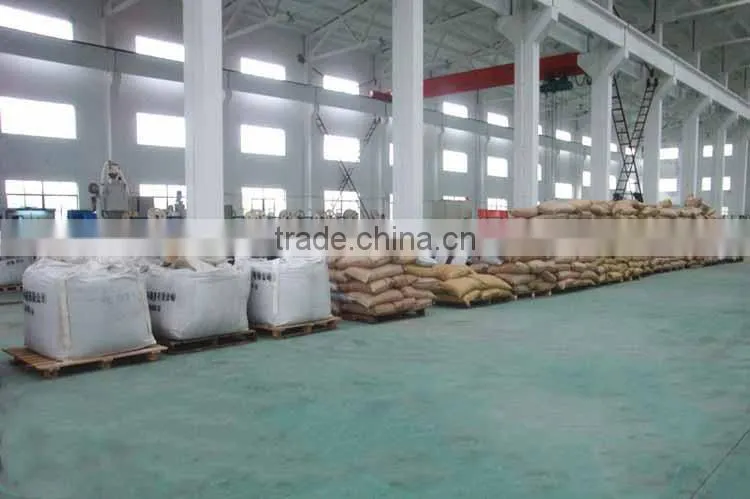

2. Raw Material

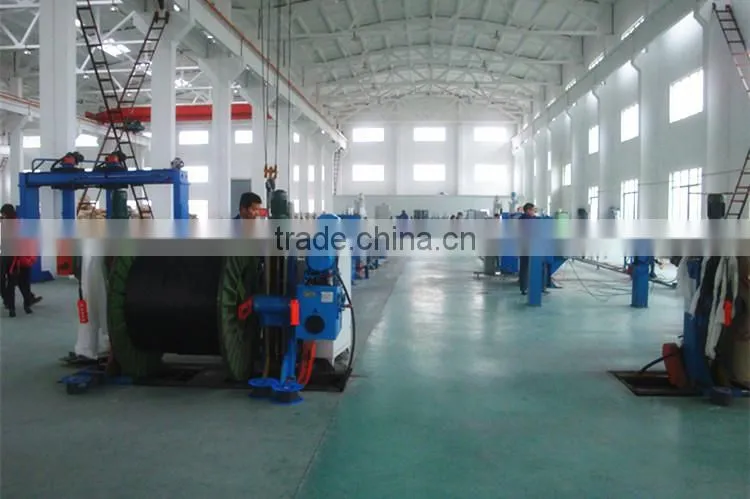

3. Production Line
4. Fiber Optic Cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.

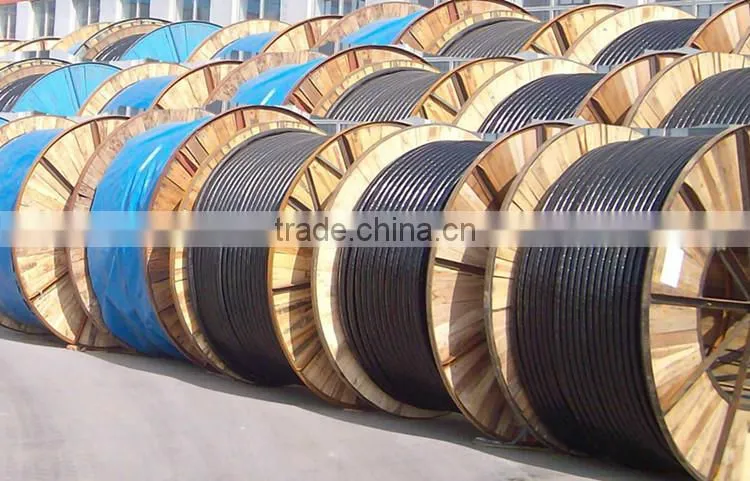

5. Wooden Drums
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
