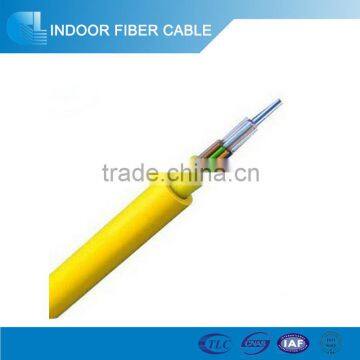

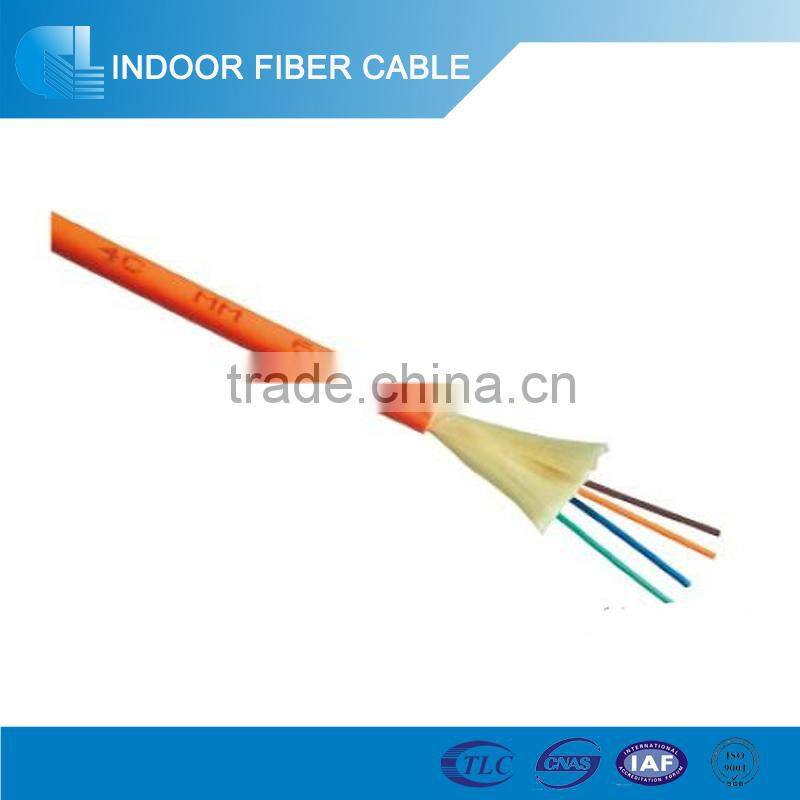

INDOOR DISTRIBUTION FIBER OPTIC CABLE

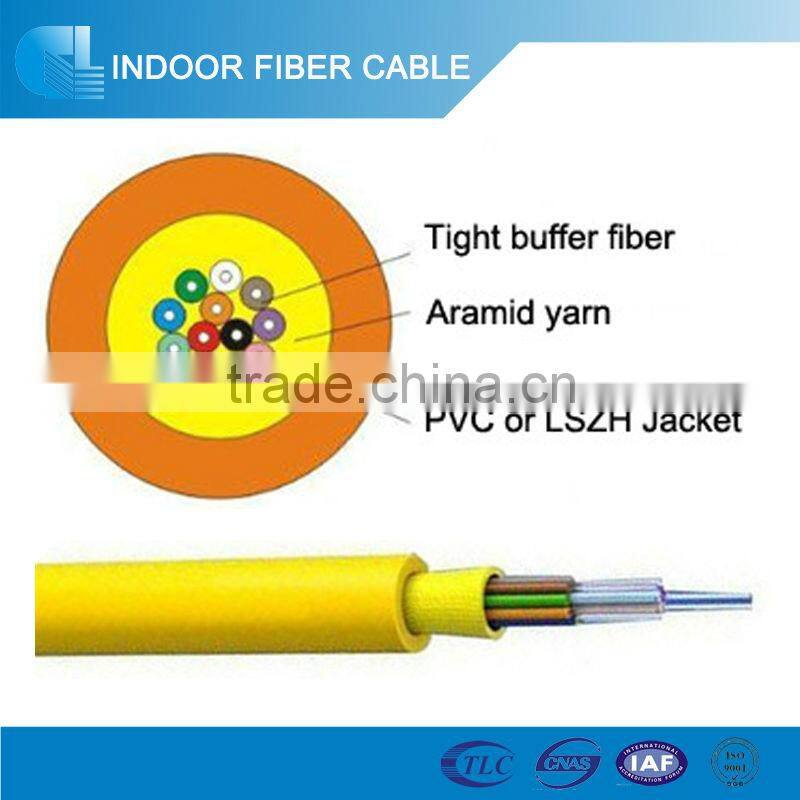

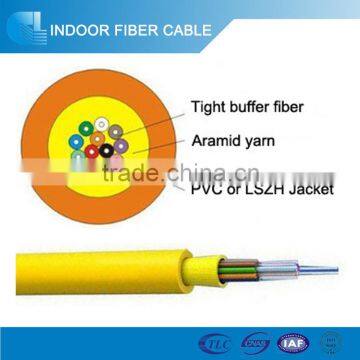

The Simplex cable uses single 900μm or 600μm tight buffered fibre as optical transmission medium, covered with aramid yarn as Strength member with high tensile strength
then extruded with a PVC or LSZH sheath (low smoke ,zero halogen ,Flame retardant ).
Excellent strippability with tight buffered fibre. Soft ,it is easy for stripping
APPLICATION
1. Fibre jumper or pigtail.
2. Indoor riser level and plenum level cabling.
3. Interconnections between instruments and communication equipments.
TECHICAL DATA
| Number of Fibers | 2 | 4 | 6 | 8 | 12 | 24 |
| Cable Diameter (mm) | 5.00 | 5.10 | 5.30 | 6.00 | 6.60 | 8.50 |
| Cable Weight (kg/km) | 20 | 20 | 22 | 25 | 28 | 50 |
| TBF Diameter (μm) | 900±50 |
|||||
Transmission Characteristics:
| Fiber Mode | SMF | 50/125 | 62.5/125 |
| Wavelength | 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) |
| Max Attenuation (dB/km) | 0.45/0.30 | 3.5/1.5 | 3.5/1.5 |
| AVG. Attenuation (dB/km) | 0.40/0.25 | 3.0/1.0 | 3.0/1.0 |
| Min Bandwidth (MHz/km) | —— | 400/400 | 160/500 |
Note:
3. Specially designed Cable structure is available on request.
Photo show:
Main products: You can click directly into the link
The Gate of Factory
Fiber Optic Cable Testing
Mechanical testing of Optical Fiber Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
Our Certificate
FAQ
1. Shipping: Generally by sea or air due to heavy weight. Samples will be send by DHL, FedEx. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely.
Packaging & Shipping
1. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
2. Sheath mark
The following printing(white hot foil indentation)is applied at 1-meter intervals.
a. Supplier: Guanglian or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters.
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Span length: 50meter to 800meters is available
3. Fiber type: Various kind of Single mode or multi mode is available
4. Line Voltage: 10kV, 35kV, 110kV or 220kV
5. Order Quantity
Our Services
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
Contact with us
- Website:
- Contact: Mr Tim
- Phone: +86-731-85501765 Fax: +86-731-89722708
- Address: No.318 Xizi,Wanjiali Road,Yuhua District,Changsha.Hunan,China,410007
- Skype: opticfiber.tim
- Twitter: opticfiber_tim
- QQ: 3058509239
- Email: timoptic(at)/ tim(at)
