Ftth 1 core ftth 1 core indoor drop fibra optica cable
The typical bow-type drop fiber optic cable includes central optical fibers with 2 parallel KFRPs or steel wire as the strength members placed on both sides, a LSZH or PVC sheath is extruded outside.
Application :
1. All types of fiber cables with different structures
2. High performance optical network operating
3. High speed optical routes in buildings (FTTX)
Temperature Range:
Operating :-20℃ to 60℃
Storage: -20℃ to 60℃
Characteristic:
1. Simple structure, light weight, high tensile strength
2. Novel groove design, easily strip and splice, simplified installation and maintenance
3. Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety
Standards:
Comply with standard YD/T1997-2009
Technical Parameter:
Cable Type |
Cable Diamter (mm) |
Weight (kg/km) |
Tensile strength(N) |
Crush Resistance(N/100mm) |
Minimum bending radius (mm) |
|||
|
|
|
Short-term |
Long-term |
Short-term |
Long-term |
Static |
Dynamic |
GJXFH-1 |
2.0*3.0 |
8 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXFH-2 |
2.0*3.0 |
8.5 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXFH-4 |
2.0*4.0 |
10 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXH-1 |
2.0*3.0 |
9 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXH-2 |
2.0*3.0 |
9.5 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXH-4 |
2.0*4.0 |
10 |
60 |
30 |
1000 |
300 |
15 |
30 |
Packaging |

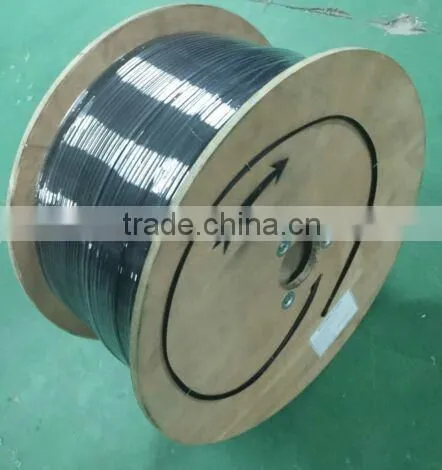

Wooden drum, 2000m to 6000m/drum or as you required |
Shipping methods. |
By sea or by air |
|
Sheath mark applied at 1-meter intervals |
a. Supplier: Guanglian or as customer required |
b. Standard Code(Product Type, Fiber Type, Fiber Count) | |
c. Year of manufacture | |
d. Length marking in meters |

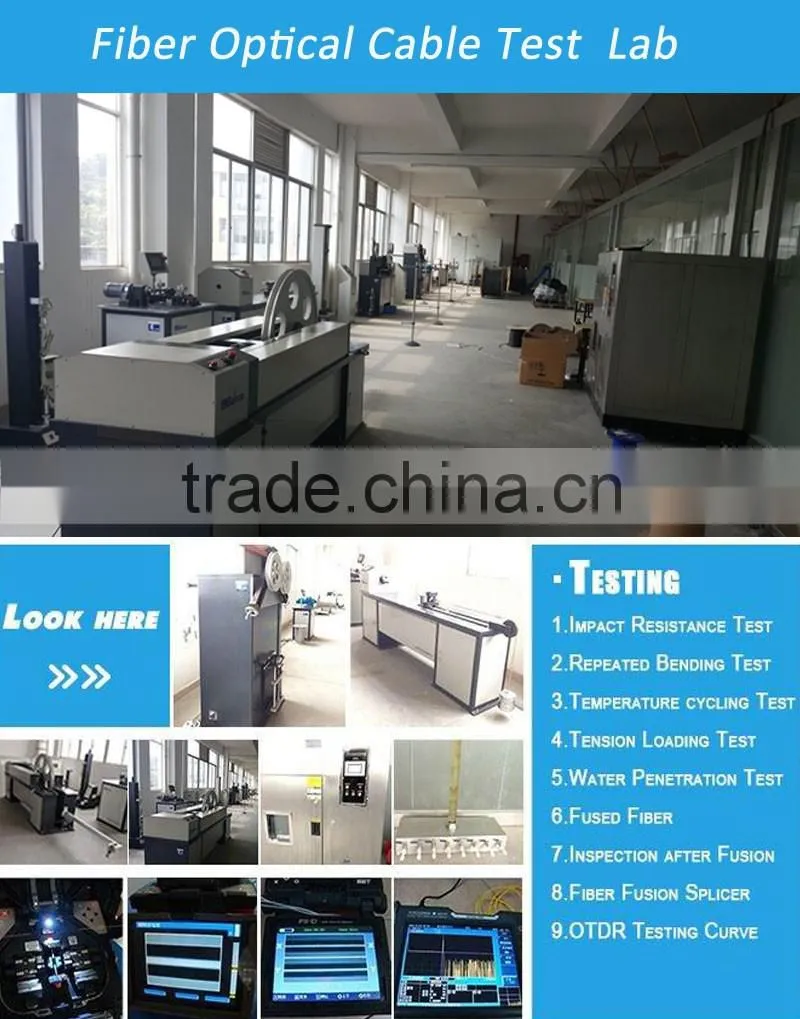

Test
Our Certifications
Company Information
♦Hunan Guanglian Photoelectricity Technologies Co.,Ltd(GL Technology)is a leading global manufacturer of fiber optic cable.GL Technology offers its customers a complete range of outdoor fiber optic/aerial fiber optic cable/duct fiber optic cable/directly buried fiber optical cable/ADSS,OPGW and OPPC for power system transmission in China.
♦GL Technology have over 300 equipment for manufacturing various cables and optical cables and over 100 testing equipment.The production lines include Austria MS Coloring Machines,Color Circling Machine,Switzerland Swiss Cable Secondary CoatingLine,France Delachaux stainless steel tube welding line,European first-class steel tube laser welding line for submarine and OPGW fiber optical cables,fluroplastic high temperature lines of US Davis company,three-layer simultaneously extruded cross linking lines,CCV Catenary production lines of Troester Company, Germany,GJB-complied military cable production lines and so on.
1.About GL Technology.
We are a leading enterprise as a manufacturer of power fiber optic cable in China.We have over 300 equipment for manufacturing various cables and optic cables and over 100 testing equipment.
2.Do you provide free samples?
Yes,we supply some free samples of the value under USD20.The buyer should bear all the shipping costs.
3.Can we become your distributor or agency in our area?
Yes,it is possible if we don't already have an agency or distributor in your area.The best way is to start the business and approve your good intentions through several regular orders over a period. We will support very good products to our distributor including samples,price and other support.Please contact with our sales representative for more details.
4.Can you supply OEM products under our brand?
Yes,sure.We can supply OEM products with OEM package,but it will need MOQ to print your brand.
5.What is your lead time?
We keep stock for standard fiber optic patch cables,fiber optic cable connectors,fiber optic adapters and some Cat5e patch cables,Cat6 patch cables.So the lead time will be same upon payment confirmation.For other products,we may need 7-10 working days to finish production.For OEM products,the lead time is around 15-30 days,depending on the products types.
