Ftth cable network multi mode fiber optic cable for duct

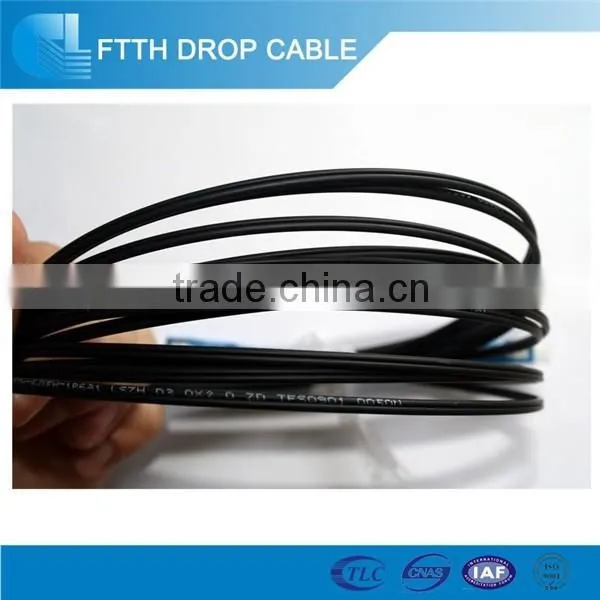

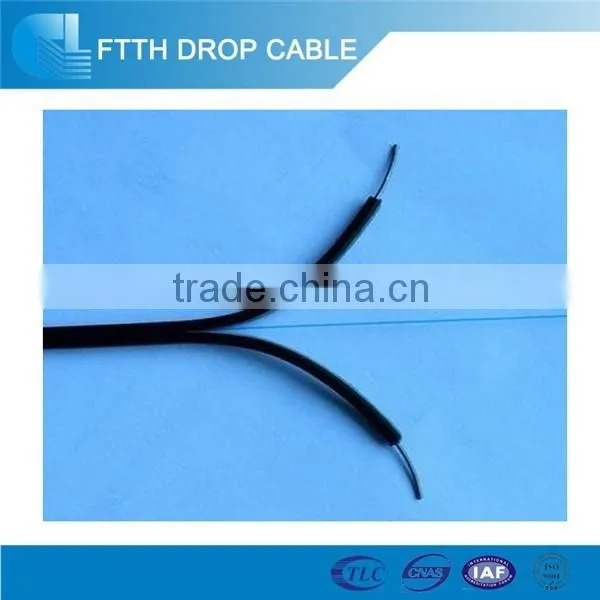

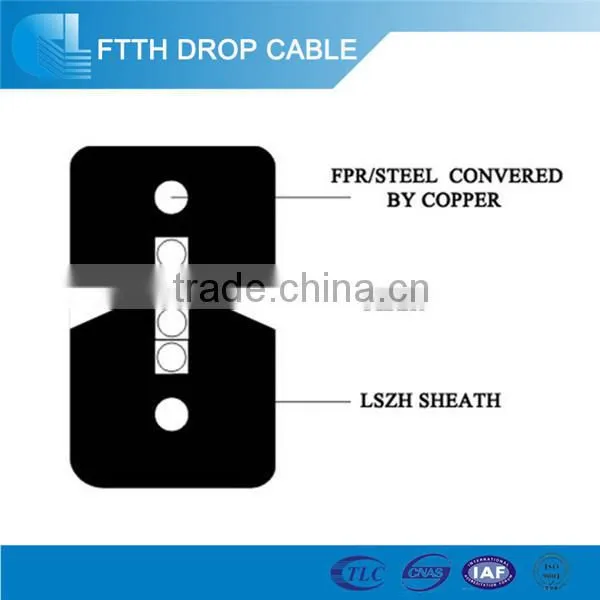

The typical bow-type drop fiber optic cable includes central optical fibers with 2 parallel KFRPs or steel wire as the strength members placed on both sides, a LSZH or PVC sheath is extruded outside.
Application :
1. All types of fiber cables with different structures
2. High performance optical network operating
3. High speed optical routes in buildings (FTTX)
Temperature Range:
Operating :-20℃ to 60℃
Storage: -20℃ to 60℃
Characteristic:
1. Simple structure, light weight, high tensile strength
2. Novel groove design, easily strip and splice, simplified installation and maintenance
3. Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety
Standards:
Comply with standard YD/T1997-2009
Technical Parameter:
Cable Type |
Cable Diamter (mm) |
Weight (kg/km) |
Tensile strength(N) |
Crush Resistance(N/100mm) |
Minimum bending radius (mm) |
|||
|
|
|
Short-term |
Long-term |
Short-term |
Long-term |
Static |
Dynamic |
GJXFH-1 |
2.0*3.0 |
8 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXFH-2 |
2.0*3.0 |
8.5 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXFH-4 |
2.0*4.0 |
10 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXH-1 |
2.0*3.0 |
9 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXH-2 |
2.0*3.0 |
9.5 |
60 |
30 |
1000 |
300 |
15 |
30 |
GJXH-4 |
2.0*4.0 |
10 |
60 |
30 |
1000 |
300 |
15 |
30 |
Packaging |
Wooden drum, 2000m to 6000m/drum or as you required |
Shipping methods. |
By sea or by air |
|
Sheath mark applied at 1-meter intervals |
a. Supplier: Guanglian or as customer required |
b. Standard Code(Product Type, Fiber Type, Fiber Count) | |
c. Year of manufacture | |
d. Length marking in meters |
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing
and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirements and description.
♦ Please send us inquiry for more products info and we will give you feedback ASAP
Trade Market
|
Main Markets: |
Southern Europe |
|
Total Annual Sales Volume: |
US$2.5 Million - US$5 Million |
|
Export Percentage: |
31% - 40% |
TEST FOR CABLE

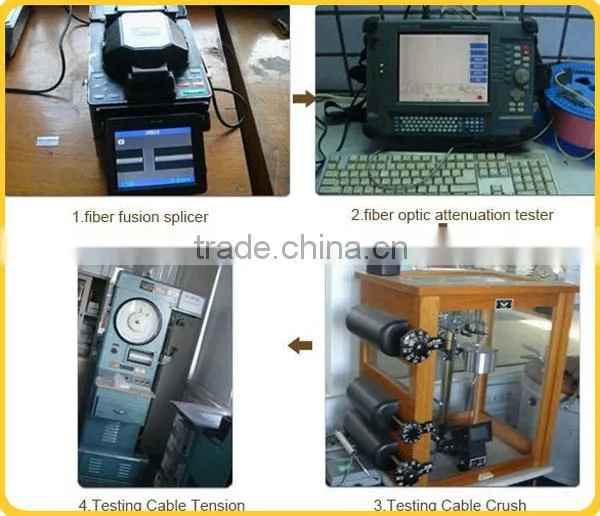

TEST MACHINE

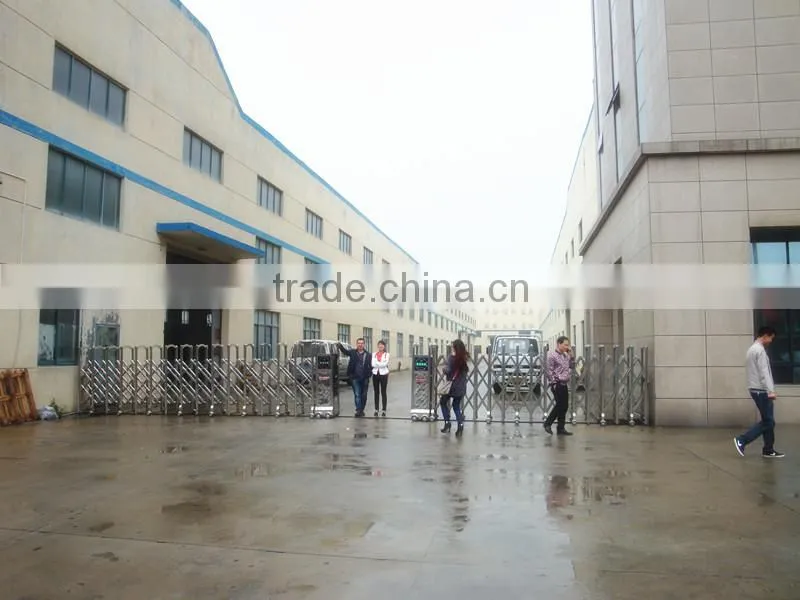

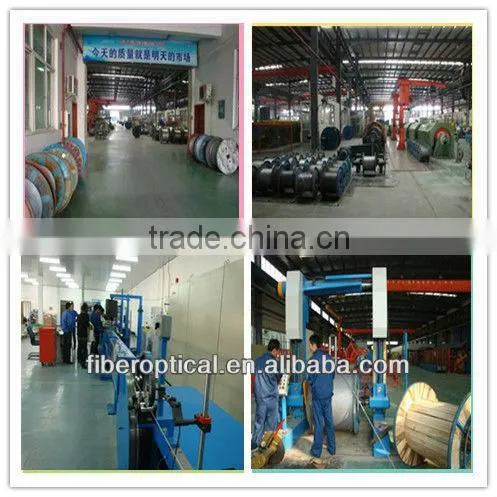

Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL Technology) is a leading global manufacturer of fiber optic cable in China foe many years. GL Technology offers its customers a complete range of outdoor fiber optic/ aerial fiber optic cable/ duct fiber optic cable/ directly buried fiber optical cable/ ADSS, OPGW and OPPC for power system transmission.
♦ We accept OEM. The cable size and material are customized.Your own logo and own design are welcomed. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
Certificate
