Singlemode/multimode 1m/3m/5m Indoor Lc-lc Patch Cord Cable

Singlemode/multimode 1m/3m/5m Indoor Lc-lc Patch Cord Cable photo-1
US$ 0.25 - 10 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
GL
Model Number:
GL-PC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name GL
Model Number GL-PC

Specifications

1.Patch Cord
2.Fiber Optic Patch Cord
3.Good compatibility
4.High reliability & stability
5.Low insertion loss

Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable



Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable

Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable

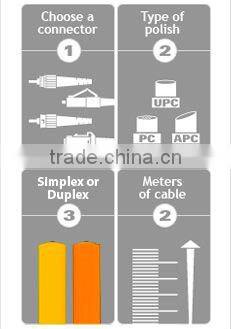

            How  to choose the required fiber optic patch cable :





Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable

  1.CATV , and Multimedia
  2.Telecommunication networks
  3.Active device interface

  4.Telecommunication networks
  5.Gigabit Ethernet
  6.Data processing networks
  7.Interconnection for O/E modules
  8.Premise installations
  9.Optical switch interframe connection

 10.Asynchronous Transmission Mode (ATM)



Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable

  1. Low insertion loss, high return loss

  2. Good compatibility

  3. High precision of mechanical dimensions

  4. High reliability & stability

  5. PCAPCUPC optional, cable length optional



Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable



Type

Standard,Master

Style

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Duplex MTRJ/Female, MTRJ/Male

Fiber Type


9/125 SMF-28 or equivalent (Singlemade) OS1
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G  (Multimode) OM3


Cable Type

Simplex, Duplex (Zipcord)
Φ3.0mm, Φ2.0mm, Φ1.8mm
Φ1.6mm PVC or LSZH
Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750

Return Loss
(For Singlemode)

UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750

Repeatability


 ±0.1dB


Operating temperature

-400C to 850C

Geometry Requirement
(For Singlemode)

Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1



Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable

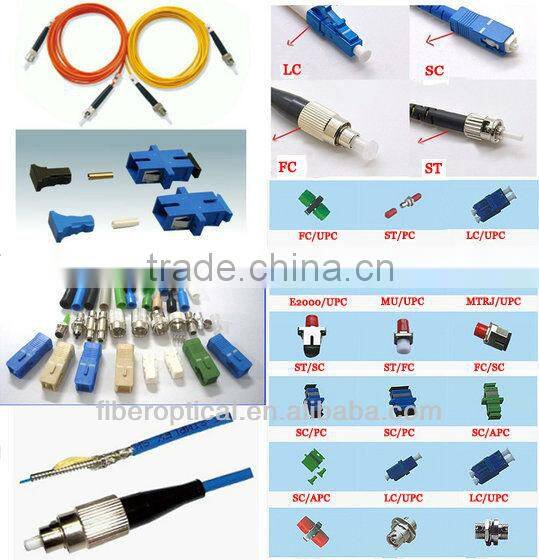

  1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

  2. Ferrule End-face: PC, UPC, APC

  3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

  4. Cable Quantity: simplex/duplex

  5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm

  6. Cable Length: 1, 2, 3 meter or customized

  7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum



 Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable

Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable

Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable

Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable



Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable

Singlemode/multimode 1m/3m/5m indoor lc-lc patch cord cable
