Factory Price Ore Vibrating Screen, Sand Screening Machine
Description of Factory Price Ore Vibrating Screen, Sand Screening Machine
Screening Machine is widely applied in coal dressing, ore dressing, building material, electricity and chemical industries.It is doing circular movement while at work with highly-effective, newly-developed and multilayer machine.With the introduction of eccentric shaft vibration exciter and particular block, the amplitude can be adjustable.
Features of Screening Machine
> Strong excited force, low noise, large handing capacity, durable usage.
> Adopt tire coupling and soft connection makes operation smooth
> Simple structure, screening efficiency, easy maintenance
> Use of spring steel woven mesh or perforated metal sieve, long service life, easy to plug holes.
> With rubber vibration isolation springs, long life, stable.
> Easy to repair, high capacity & reliability
Specifications of Screening Machine
ZD Model specifications of Screening Machine
Model |
Layer |
Max.feeding size(mm) |
Capacity (t/h) |
Sieve size (mm) |
Power (kw) |
Weight (kg) |
ZD918 |
1 | 60 | 10-30 | 1-25 | 2.2 | 553 |
| 2-ZD918 | 2 | 50 | 10-30 | 1-25 | 2.2 | 702 |
| ZD1224 | 1 | 100 | 70-210 | 6-40 | 4 | 1130 |
| 2-ZD1224 | 2 | 100 | 70-210 | 6-40 | 4 | 1545 |
| ZD1530 | 1 | 100 | 90-270 | 6-50 | 5.5 | 1650 |
| 2-ZD1530 | 2 | 100 | 90-270 | 6-50 | 5.5 | 2260 |
| ZD1540 | 1 | 100 | 90-270 | 6-50 | 7.5 | 2070 |
| 2-ZD1540 | 2 | 100 | 90-270 | 6-50 | 7.5 | 2850 |
| ZD1836 | 1 | 150 | 100-300 | 6-50 | 11 | 1960 |
| 2-ZD1836 | 2 | 150 | 100-300 | 6-50 | 11 | 2840 |
| ZD2160 | 1 | 150 | 240-540 | 10-50 | 22 | 6529 |
ZD model image details of Screening Machine
|

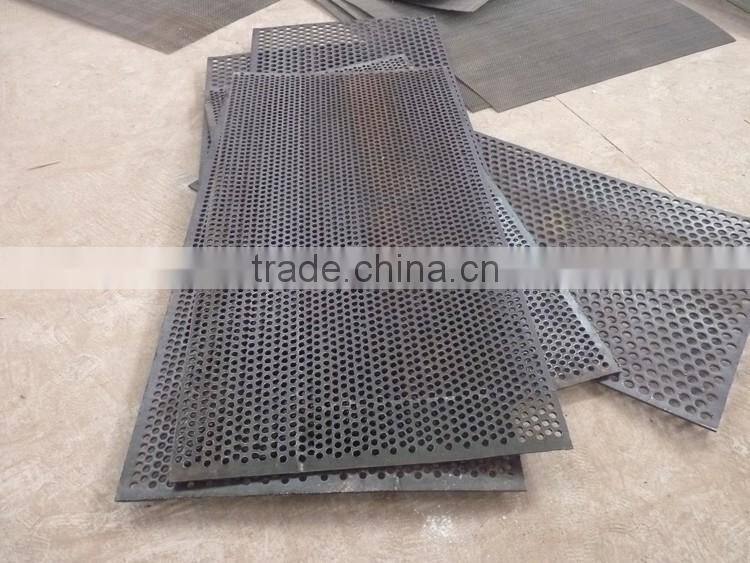

Name : ZD Screening Machine sieve
Brand: Perry Mining
Origin:China
We can follow the customer to make the sieve size , the seive that is wooven screen , punching
sieve . The material that will be steel plate and polyurethane. |
|

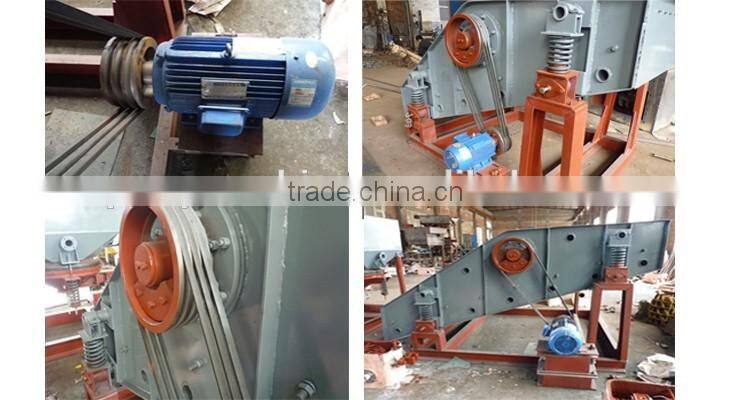

Name : Single sieve ZD Screening Machine
Brand: Perry Mining
Origin: China
Model : ZD1530
Power :5.5 kw |
|

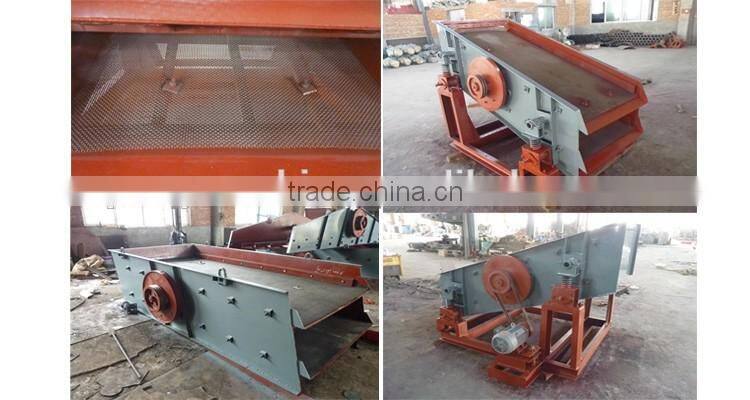

ZD Model in factory of Screening Machine

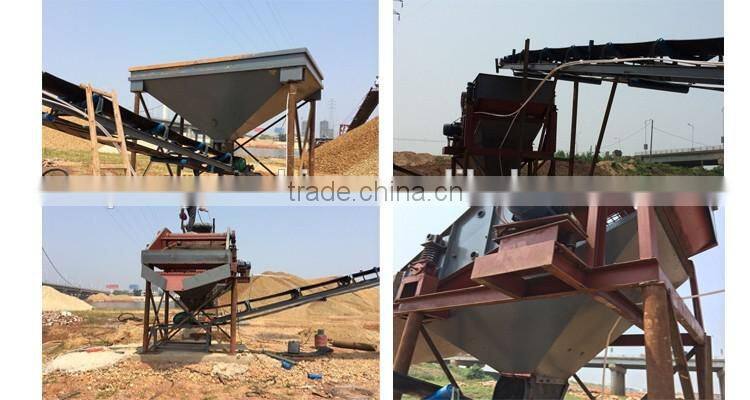

ZD Model Mining site of Screening Machine
SZZ Model specifications of Screening Machine
| Model | Layer |
Max.feeding size (mm) |
Sieve size (mm) |
Capacity (t/h) |
Frequency (shift/mm) |
Angle(degree) |
Power (kw) |
Dimension (mm) |
Weight (kg) |
| SZZ0612 | 1 | 40 | 1-25 | 10-20 | 1000 | 15-25 | 2.2 | 1370*890*330 | 340 |
| 2-SZZ0612 | 2 | 40 | 1-25 | 10-20 | 1000 | 15-25 | 2.2 | 1370*890*430 | 360 |
| SZZ0918 | 1 | 40 | 1-25 | 20-25 | 1000 | 15-25 | 2.2 | 2150*1358*575 | 550 |
| 2-SZZ0918 | 2 | 40 | 1-25 | 20-25 | 1000 | 15-25 | 3 | 2489*1358*770 | 620 |
| SZZ1225 | 1 | 100 | 5-40 | 150 | 850 | 15-20 | 5.5 | 2762*1714*680 | 1100 |
| 2-SZZ1225 | 2 | 150 | 5-40 | 150 | 850 | 15-20 | 5.5 | 2702*1714*740 | 1300 |
| SZZ1530 | 1 | 150 | 1-40 | 220 | 800 | 15-25 | 7.5 | 3320*1449*787 | 2100 |
SZZ model image details of vib
rating screen
|

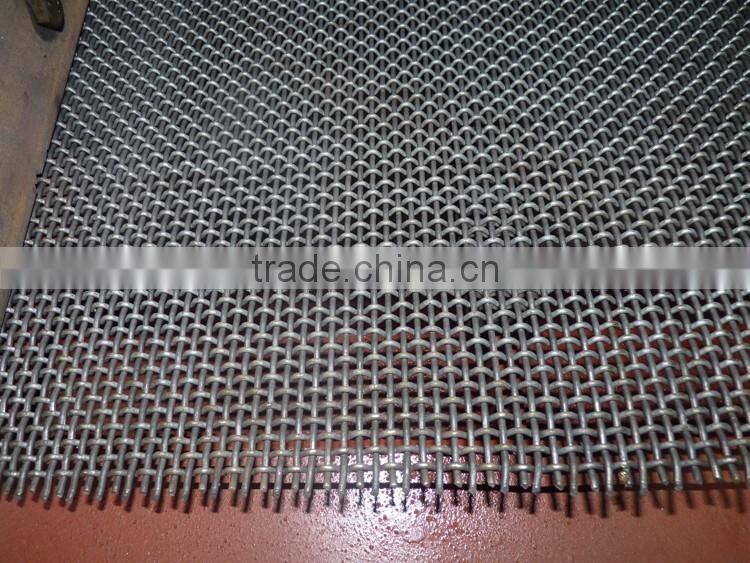

Name : Screening Machine sieve
Brand: Perry Mining
Origin:China
We can follow the customer to make the sieve size , the seive that is wooven screen , punching
sieve . The material that will be steel plate and polyurethane. |
|

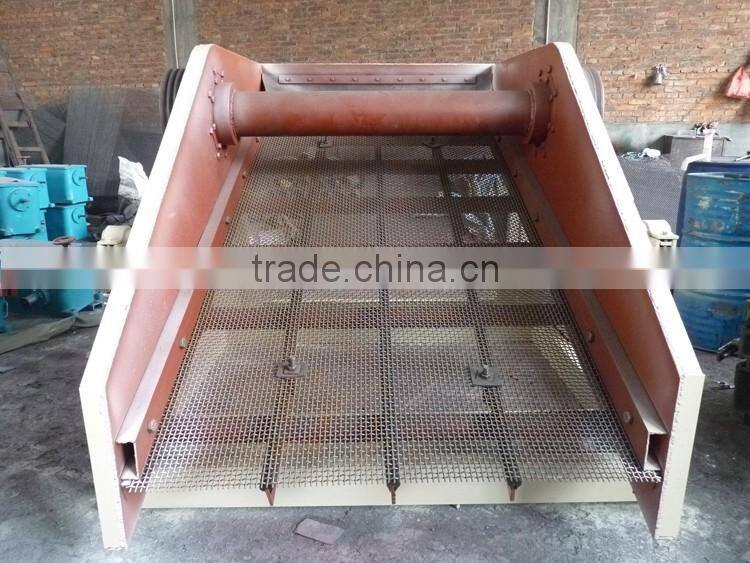

Name : Double sieve SZZ Screening Machine
Brand: Perry Mining
Origin: China
Model : 2-SZZ1225
Power :5.5 kw
|
|

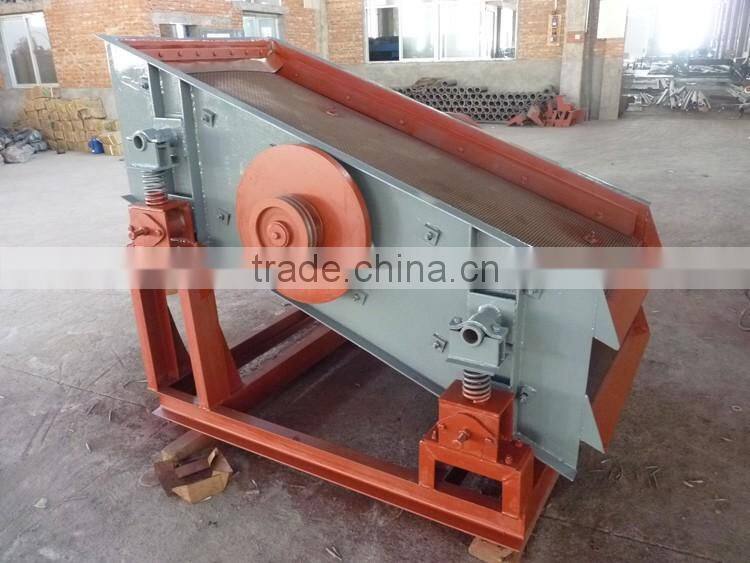

SZZ Model in factory of Screening Machine

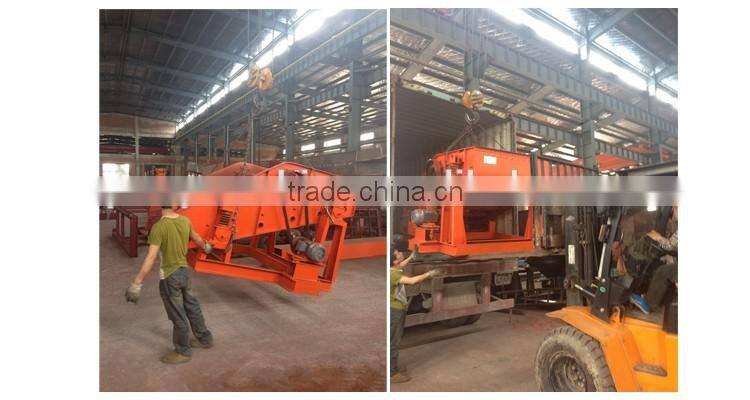

The Screening Machine always shipped into the container with other machines . It is necessary machines in the mining process .
Welcome to ask me the inquiry at any time , thanks .
| Contact person: | Flynn |
| Mail: | flynn@ |
| Skype: | firon1818 |
| Whatsapp: | +8618507977930 |
