Africa Gold Mine Mobile Gold Mining Equipment for Sale
Representing a new generation of sieving equipment, the trommel screen (Mobile Gold Mining Equipment) has effectively overcome the blocking problems of the circular and linear vibrating screen when screening the wet materials, which has improved the productivity and reliability of the whole screening process.
So it has been more and more popular and widely applied in the placer/alluvial gold washing process, especially the river sand gold process. In addition, it is also very popular & effective in sand washing and screening as well as top soil screening.
As per the market demands, we could supply many kinds of trommel screen:
>> Stationary type, mobile type Mobile Gold Mining Equipment
>> Small scale type, large scale type Mobile Gold Mining Equipment
>> Motor engine type, diesel engine type Mobile Gold Mining Equipment
>> Single layer type, double layer type Mobile Gold Mining Equipment

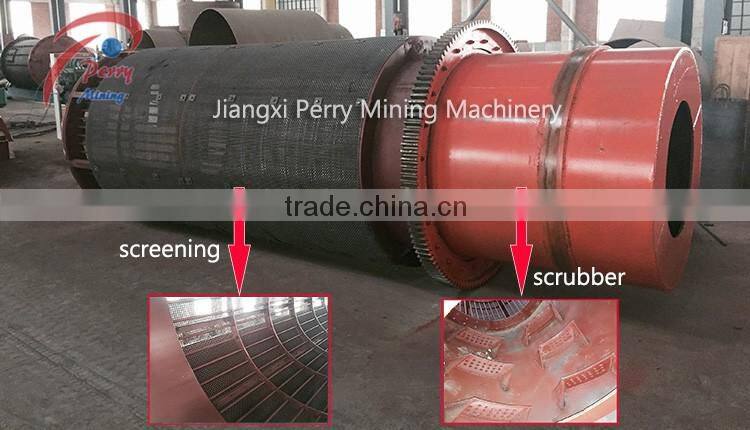

If your ore is with clays, you could choose the trommel with scrubber and screening together. It could help to wash and break the clay lumps in the scrubbing part, and then screen the materials in the screening part.
Specification Standard Trommel | |||||||
Model |
Capacity |
Power |
Drum dia. |
Drum length |
Screen size |
Dimension |
Weight |
GT1015 |
50 |
4.0 |
1000 |
1500 |
<3~10 |
3000*1400*2145 |
2200 |
GT1020 |
100 |
5.5 |
1000 |
2000 |
3460*1400*2145 |
2800 |
|
GT1225 |
160 |
7.5 |
1200 |
2500 |
4146*1600*2680 |
4200 |
|
GT1530 |
250 |
11 |
1500 |
3000 |
4460*1900*2820 |
5100 |
|
GT1545 |
350 |
15 |
1500 |
4500 |
5960*1900*3080 |
6000 |
|
GT1848 |
450 |
22 |
1800 |
4800 |
6500*2300*4000 |
7500 |
|
GT2055 |
600 |
30 |
2000 |
5500 |
7500*2500*4000 |
8600 |
|
| Specification of Mini Trommel | ||
| Modle | YGT512A | YGT512 |
| Drum dimension (mm) | φ 500*1200 | φ 500*1200 |
| Capacity (t/h) | 0.5-5 | 0.5-5 |
| Screen opening (mm) | <3-10 | <3-10 |
| Power (HP) | 8 | 5 |
| Main configuration |
mobile trommel, water pump, diesel engine, vibrating sluice, water recycling system |
mobile trommel, water pump, diesel engine |
YGT512A YGT512
| Structure Mobile Gold Mining Equipment |

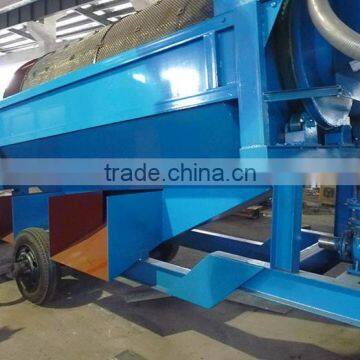

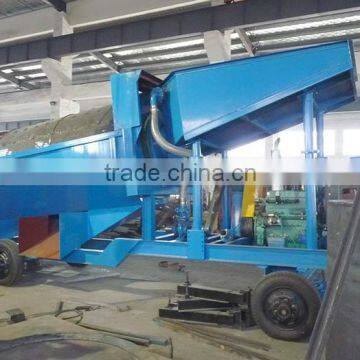

The Mobile Gold Mining Equipment is consist of mainly 6 parts which are cylinder, main frame, discharging devices, reducer, electric motor / diesel engine, and flushing water device.
1. Feeding chute 2. Screen trommel 3. Motor/Diesel engine 4. Uppersize discharging outlet
5. Bottomsize discharging outlet 6. Water pump 7. Flushing water pipe
|

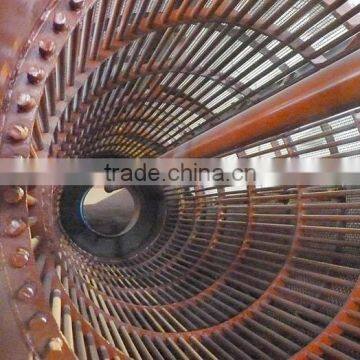

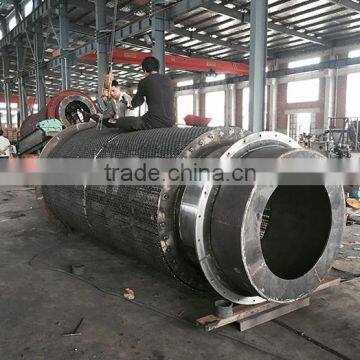

Part name: Trommel
Brand: Perry
Origin: China
The trommel can be single layer or double layer. The external trommel is usually the waved type, while the internal one is always made of steel bar.
The type and material of trommel can be customized, too. |
|

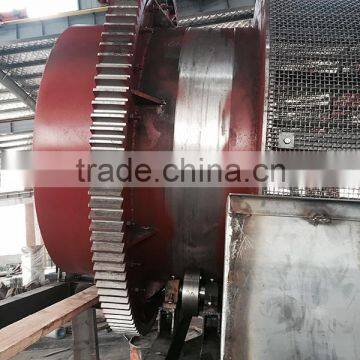

Part name: Drive system--gear drive
Brand: Perry
Origin: China
The drive can be sprocket type or gear type.
Usually the larger sizes are with gear drive as it is more durable.
Mobile Gold Mining Equipment |
|
|
Part name: Diesel engine
Brand: Perry
Origin: China
The diesel engine for Perry's machine are with high quality and specially for export.
The machine can be equipped with diesel engine, elec motor, or diesel generator. Just tell us which one you prefer.
Mobile Gold Mining Equipment |
|
Part name: Mobile plant
Brand: Perry
Origin: China
For large scale mobile type trommel screen, there will be totally 6 wheels.
Mobile Gold Mining Equipment |
|
Some of our successful cases
Mobile Gold Mining Equipment Mobile Gold Mining Equipment Mobile Gold Mining Equipment
FCL shipment:
The main machines are loaded and fixed in container, while the spare parts are packed in wooden boxes.
LCL shipment:
The machines are usually packed in steel frame with plywood.
Mobile Gold Mining Equipment Mobile Gold Mining Equipment Mobile Gold Mining Equipment
Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!
Mobile Gold Mining Equipment Mobile Gold Mining Equipment Mobile Gold Mining Equipment
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
|
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Mobile Gold Mining Equipment Mobile Gold Mining Equipment Mobile Gold Mining Equipment
1. Are you a trade company or a manufacturer?
A: We are an ISO9001:2008 and CE verified manufacturer specialized in various kinds of mining equipment as well as mining technology. OEM & ODM service are available.
2. What is your delivery time?
A: The delivery time is about 7-20 days after receipt of payment.
3. What is the payment terms?
A: The payment term is 45% payment in advance, 55% balance before shipment.
