US$ 600 - 19,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
0-300t/h
Contact Supplier Request Quote Chat Now
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Guangzhou Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Gravity Separator
Production Capacity 0-300t/h
Place of Origin Jiangxi, China
Brand Name Perry's Small Scale Gold Mining Equipment
Model Number Perry's Small Scale Gold Mining Equipment
Voltage 220V-480V or customized
Power(W) depends
Dimension(L*W*H) depends
Weight depends
Certification CE, ISO9001:2008
Warranty 1 Year Excluding Spare Parts
After-sales Service Provided Engineers available to service machinery overseas

Perry's Small Scale Gold Mining Equipment

Product Description

  Product Description of Small Scale Gold Mining Equipment

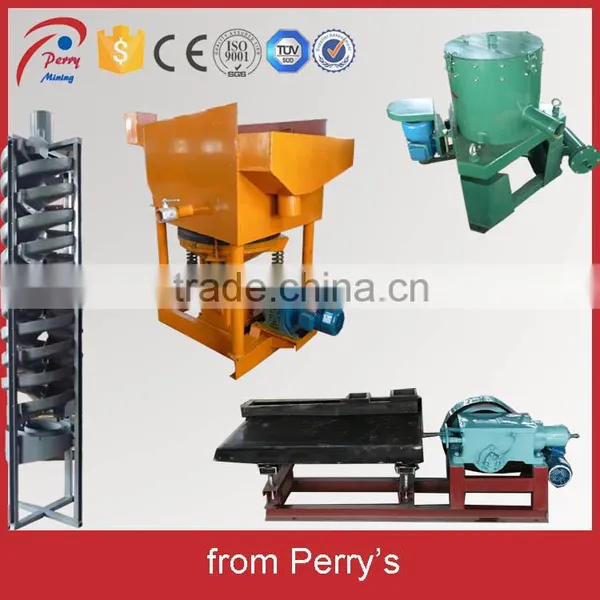

Gravity separation, one of the common separation ways, separating the minerals as per their different specific gravity, has been more and more popular in nowadays because of its non-pollution, easy operation, and lower investment. The gravity separation method is able to effectively process vari-size grained minerals excluding some micro-fine particles. The most widely applied gravity separation equipment are jig machine, spiral separator, centrifugal concentrator, and shaking table.

 Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment

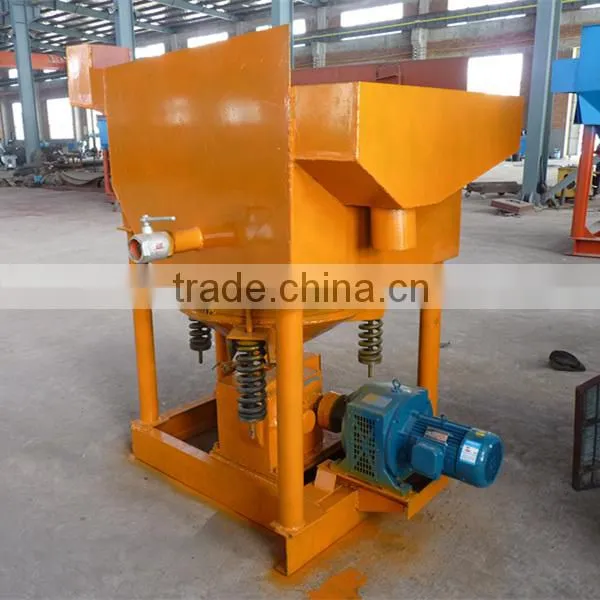

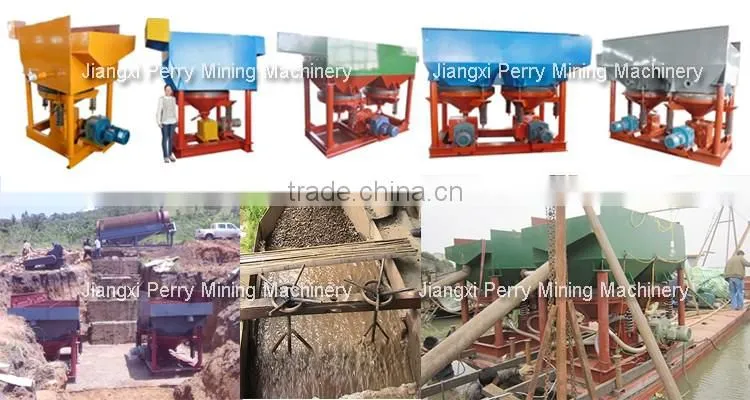

Jig machine

Perry's Small Scale Gold Mining Equipment

  • Jig machine is one of the relative new methods for gravity concentration. As a rougher or cleaner device, it is widely applied on the separation of gold, tin, tungsten, titanium, hematite, coal and other minerals due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.
  • The jig machine is always applied in roughing concentration to enrich the heavy minerals which could save the cost of the following equipment.
  • It is widely used on dredge / boat.
  • Good for both small size, less than 8mm, and big size, less than 60mm

Technical specification

Model

JT-0.57

JT-1

JT2-2

JT-2A

JT3-1

JT4-2

JT4-2A

JT5-2

JT5-2A

Feeding Size

 mm

6

5

<10

<35

<20

<8

<35

<8

Capacity

t/h

1-2

2-3

7.5-10

10-15

12-16

13-20

Motor Power

kw

1.5

2.2

 3

2.2*2

5.5

7.5

5.5*2

7.5

5.5*2

Dimensions

mm

1530×780
×1550

2060×1112

×1890

2870×1520

×1880

2662×2000

×3030

4240×1990

×2750

3940×2006
×2580

Weight

kg

612

989

1637

1690

3260

3500

3530

3854

3884

  Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment

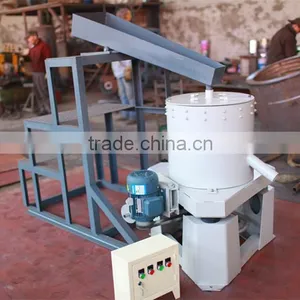

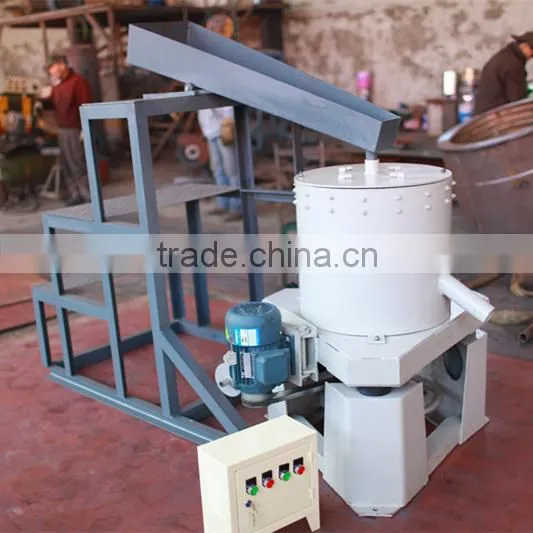

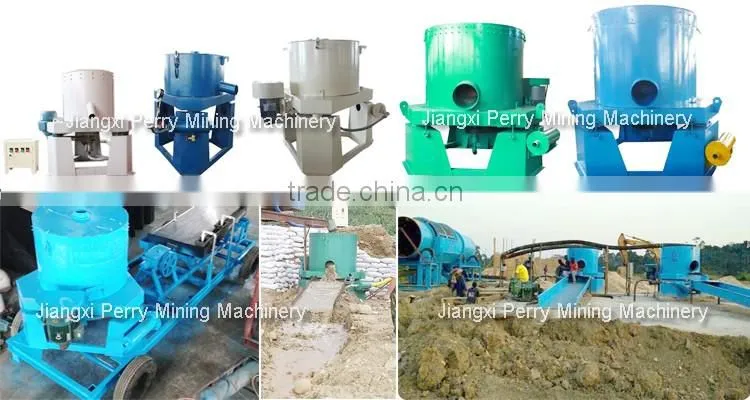

Centrifugal concentrator

Perry's Small Scale Gold Mining Equipment

  • As one of the gravity concentration equipment, the centrifugal concentrator is widely applied in gold recovery.



    The centrifugal concentrator is always applied to enrich the heavy minerals in the roughing separation stage. The shaking table is usually applied to process the concentrates of centrifugal concentrator for further upgrading.

  • The feeding and discharging could realize the automatic operation with the help of the VFD (frequency converter)



    Designed by learning experience of the Knelson and Falcon concentrator, the Chinese version centrifugal concentrator has the features of lower price but good effect. Thus more and more customers prefer to choose the Chinese version.

Technical Specification

Model

STLB20

STLB30

STLB60

STLB80

STLB100

Capacity (T/H)

1-3

2-7

15-30

30-70

60-100

Feeding size (mm)

0-3

0-3

0-5

0-5

0-6

Fluidization water(m3/H)

1-2

4-6

10-20

20-35

40-60

Concentrates weight(kg)

2-3

8-15

25-40

60-70

70-80

Motor power(kw)

0.75

1.5

4

11

18.5

Dimension(mm)

800×700×980

1050×900×1150

1600×1400×1800

2100×1800×2100

2300×2000×2200

Weight (kg)

270

420

1600

2500

3750



Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment

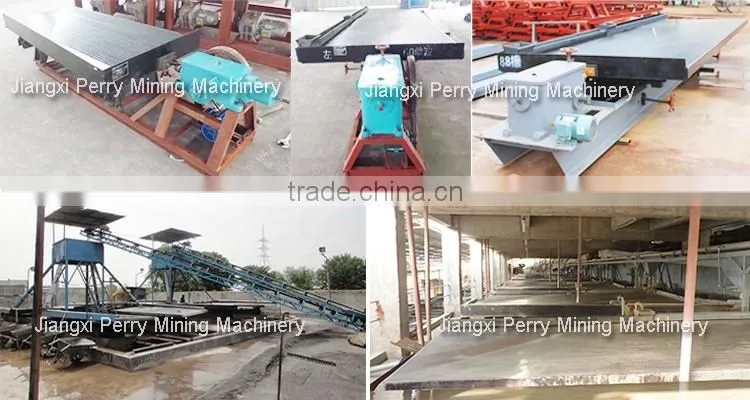

Shaking table
Perry's Small Scale Gold Mining Equipment
  • 6s series shaking table, characterized for its asymmetric reciprocating movement system, is widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, ranging from 2-0.037mm
  • Because of its small capacity and large footprint, the shaking table is usually applied in cleaning stage. e.g. it is always used after the gold concentrator in gold process.
  • The recovery rate of shaking table could be as high as 85-95%
Technical Specification
Model LS4500 LY3000 LY2100 LY1100
Deck size mm 4500*1850*1560 3000*1620*1100 2100*1050*850 1100*500*430
Feeding size sand ore -2 -2 -2 -2
slime ore -0.074 -0.1 -0.074 -0.074
Capacity (t/h) sand ore 0.5-1.8 0.7-1.5 0.4-0.8 0.1-0.2
slime ore 0.5-0.8 0.4-1 0.3-0.5 0.05-0.1
Motor power kw 1.1 1.1 1.1 0.55
Dimension mm 5600*1850*860 4075*1320*780 3040*1050*1020 1530*500*800



Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment

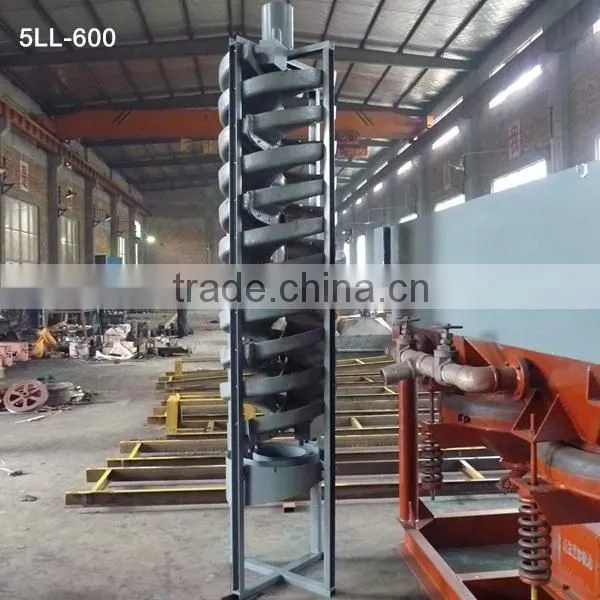

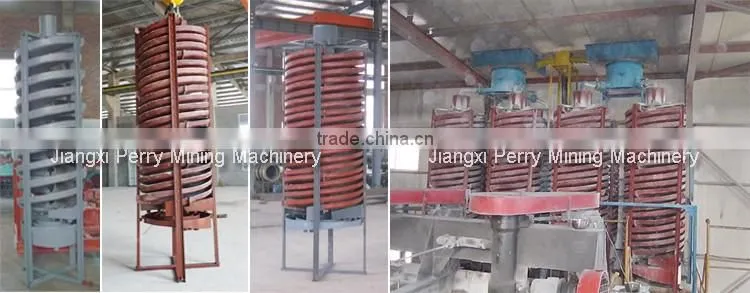

Spiral separator

Perry's Small Scale Gold Mining Equipment

  • The spiral separator is always applied for processing iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon and other metal, nonmetal minerals with enough specific gravity dispersion of granularity ranged from 0.02 to 0.3mm.
  • It is best for concentrating  for concentrating sand ore in beach, riverside, seashore and stream.
  • The spiral separator is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.

Technical specification

Model

5LL-1500

5LL-1200

5LL-900

5LL-600

BLL-2000

Diameter

(mm)

1500

1200

900

600

2000

Max Number Spiral

1-4

1-4

1-4

1-3

1-3

Feeding  Range

(mm)

0.3-0.02

0.3-0.03

0.3-0.03

0.3-0.03

4-0.04

Capacity

(t/h)

8--6

4--6

2--3

0.8-1.2

15-40

Outline Size

L(mm)

1560

1360

1060

700

2300

W(mm)

1560

1360

1060

700

2300

H(mm)

5260/4360

5260/4360

4000/3325

2600

6500

  Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment  Small Scale Gold Mining Equipment

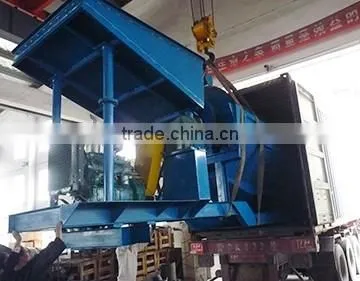

Packaging & Shipping



Perry's Small Scale Gold Mining Equipment FCL Small Scale Gold Mining Equipment
Size   Small Scale Gold Mining Equipment
Weight   Small Scale Gold Mining Equipment
Packing details The machine is usually loaded and fixed in the container mostly assembled.



 Perry's Small Scale Gold Mining Equipment LCL Small Scale Gold Mining Equipment
Size   Small Scale Gold Mining Equipment
Weight   Small Scale Gold Mining Equipment
Packing details

LCL usually refers to the smaller models.

The machine is packed disassembled so as to save the volume.
Our service

 Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!

Perry's Small Scale Gold Mining Equipment





Company Information

Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
