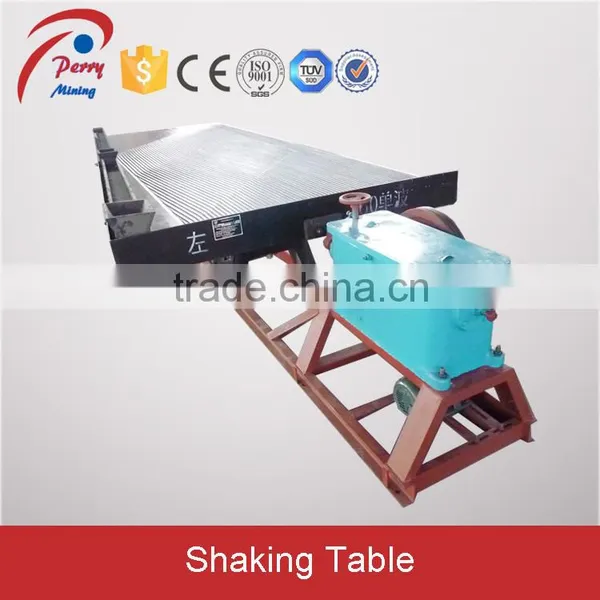

Gravity Separator Gold Vibration Shaker Table
| Product Description of Vibration Shaker Table |
The Gold Shaking Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope s 2-0.22mm.
| Technical Specification | |||||
| Model | LS4500 | LY3000 | LY2100 | LY1100 | |
| Deck size | mm | 4500*1850*1560 | 3000*1620*1100 | 2100*1050*850 | 1100*500*430 |
| Feeding size | sand ore | -2 | -2 | -2 | -2 |
| slime ore | -0.074 | -0.1 | -0.074 | -0.074 | |
| Capacity (t/h) | sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
| slime ore | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | |
| Motor power | kw | 1.1 | 1.1 | 1.1 | 0.55 |
| Dimension | mm | 5600*1850*860 | 4075*1320*780 | 3040*1050*1020 | 1530*500*800 |
Main Features of Vibration Shaker Table
1) High separation accuracy. It can get final concentrates, middling, and tailing only for one time separation of the raw ore.
2) High concentration ratio. Vibration Shaker Table
3) High separation efficiency. Vibration Shaker Table
4) Easier safeguard Vibration Shaker Table
5) The frequency stroke is easier to be adjusted. Vibration Shaker Table
| Detail Image of Vibration Shaker Table |
|
Name: Deck / Table Vibration Shaker Table There are 3 different deck designs available:
(1) The coarse ore deck for 0.5 mm to 2 mm;
(2) The fine sand deck for 0.074 mm to 0.5 mm;
(3) The slime deck for 0.05 mm to 0.074 mm. |
Name: Head motion / Driving device Vibration Shaker Table 6-S Shaking Table is furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum. Vibration Shaker Table It is one of the most important part of shaking table |
|
Name: Support device Vibration Shaker Table We mainly have 3 supporting device:
#28 channel steel type support
#10 channel steel type support
#8 channel steel type support |
Name: Motor engine Vibration Shaker Table The motor engine for our shaking table is the type which is specially applied for export and which is with high quality. Vibration Shaker Table It is different from the one for domestic market. Siemens motors are available
|
Vibration Shaker Table Vibration Shaker Table Vibration Shaker Table
LCL shipment of Vibration Shaker Table
|
Pack after assemble
For single set, the shaking table is usually packed in steel frame after assemble. |
Pack disassembled
For more quantity, the shaking tables are packed disassembled. |
FCL shipment of Vibration Shaker Table
For full container loading, the shaking tables are disassembled. The machines are loaded in the container, the spare parts are packed in wooden boxes.
Vibration Shaker Table Vibration Shaker Table Vibration Shaker Table
|
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Name: Helen Huang |
| E-mail: helen@ |
Mobile: 0086-15879777833 |
