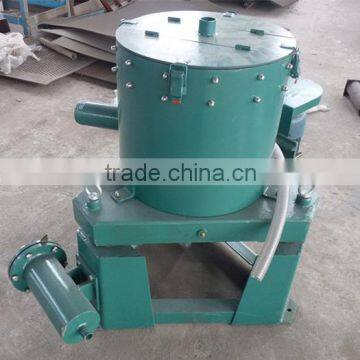

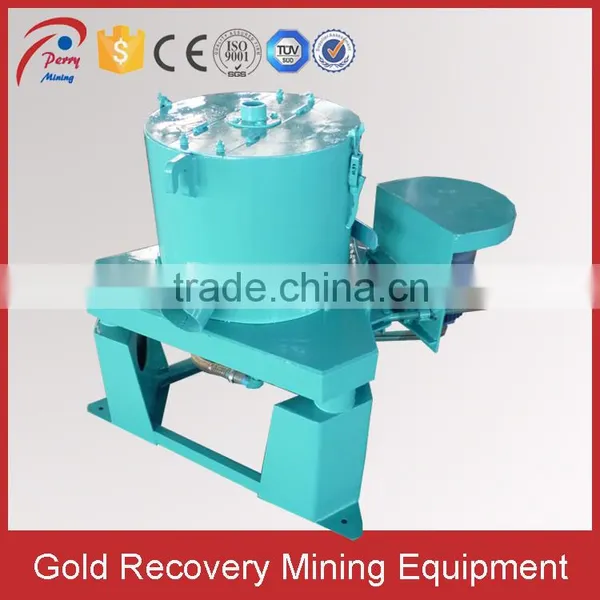

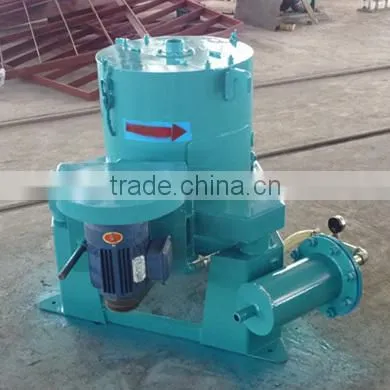

Gold Recovery Mining Equipment for Australian Gold Miner
| Product Description Gold Recovery Mining Equipment for Australian Gold Miner |
Gold Recovery Mining Equipment for Australian Gold Miner is a family of Mineral Processing Products specifically designed to recover free gold, which is, the gold that does not require gold cyanidation for recovery.The Centrifugal Separator is a type of gravity concentration apparatus. This Centrifugal Separator use the experience of Knelson and Falcon Concentrator. So far, the Chinese version is with a better price and good efficiency.
D20 (STBL20) is the smallest one in this series, really a nice choice for gold miners. Over 40% of this equipment is sold to Australia, Papua New Guinea and New Zealand, which could tell that how hot it is in Australia.
It's a Knelson type machine, but not totally same to this Knelson. There is no concept of the G-force for this equipment. So please be considerate. Thank you.
Technical Specification | |||||
Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 |
Capacity (T/H) | 1-3 | 2-7 | 15-30 | 30-70 | 60-100 |
Feeding size (mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-6 |
Feeding density | <50% | ||||
Fluidization water(m3/H) | 1-2 | 4-6 | 10-20 | 20-35 | 40-60 |
Concentrates weight(kg) | 2-3 | 8-15 | 25-40 | 60-70 | 70-80 |
Water pressure(Mpa) | 0.06-0.1 | 0.1-0.15 | 0.1-0.2 | ||
Motor power(kw) | 0.75 | 1.5 | 4 | 11 | 18.5 |
Dimension(mm) | 800×700×980 | 1050×900×1150 | 1600×1400×1800 | 2100×1800×2100 | 2300×2000×2200 |
Weight (kg) | 270 | 420 | 1600 | 2500 | 3750 |
| Main Features | |
Only one moving part Low acquisition and operating costs Ease of Installation | With VFD High concentration ratios Low machine weight |
| |
| STLB20 STLB30 STLB60 STLB80 STLB100 | |

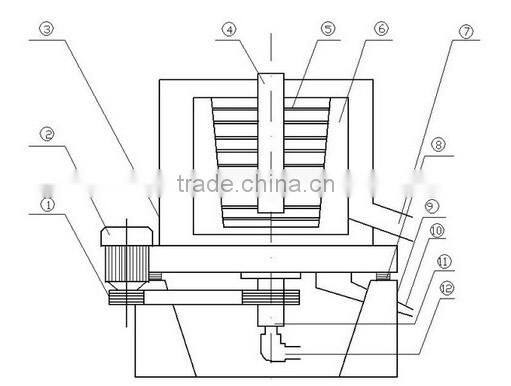

| Structure Gold Recovery Mining Equipment for Australian Gold Miner |
| 1. Belt drive 2. Motor 3. Outer shell 4. Feed tube 5. Stainless steel cone bowl 6. Pressure water jacket 7. Tailings outlet 8. Absorber 9. Framework 10. Concentrates outlet 11. Hollow shaft 12. Recoil water inlet |
| Detailed Images Gold Recovery Mining Equipment for Australian Gold Miner |

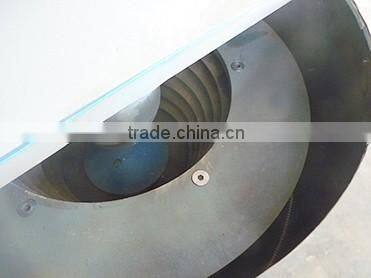

| Part name: Cone bowl
Brand: Perry
Origin: China
In standard, the cone bowl is the stainless steel type. The customized material is acceptable, too.
As the most important part of the machine, its price takes a large percentage of the price of the whole machine. |
Part name: Filter of fluidization water
Brand: Perry
Origin: China
The clean water is very important for the concentrator efficiency. The filter is used to prevent the impurities from feeding into the concentrator.
Gold Recovery Mining Equipment for Australian Gold Miner | |

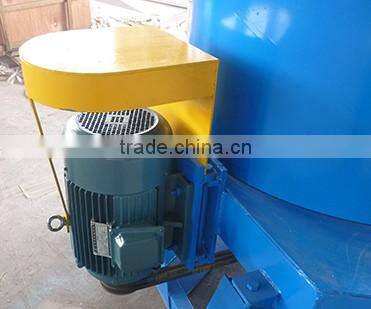

| Part name: Motor
Brand: Perry
Origin: China
The elec motor is specially for export, with high quality.
For concentrator with VFD, the motor will be the Variable-Frequency Adjustable-Speed Motor.
Gold Recovery Mining Equipment for Australian Gold Miner |
| |

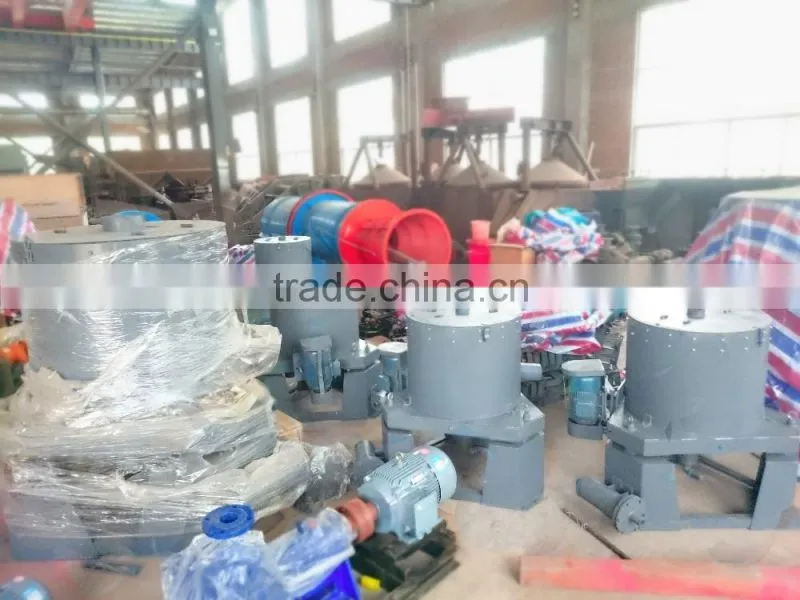

| Packing & Delivery Gold Recovery Mining Equipment for Australian Gold Miner |

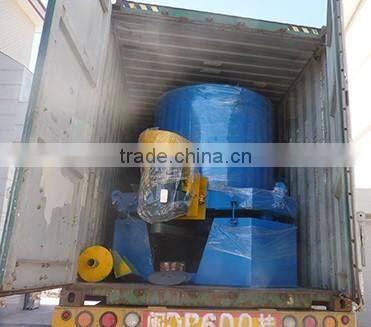

| FCL Gold Recovery Mining Equipment for Australian Gold Miner | |
| Size | one 20GP load 2 STLB100 | |
| Weight | ||
| Packing details | The machine is usually loaded and fixed in the container mostly assembled. | |
| | LCL Gold Recovery Mining Equipment for Australian Gold Miner | |
| Size | ||
| Weight | ||

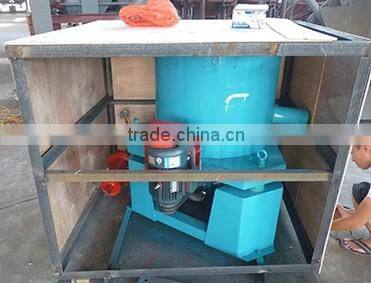

| Packing details | LCL usually refers to the smaller models. The machine is packed inside in steel frame and outside in plywood | |
Perry Mining will offer you the turnkey solution for your mineral separation. Trust us!
Perry's, as professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
Name: Flynn |
| E-mail: flynn@ |
Mobile: 0086-15879778652 |
