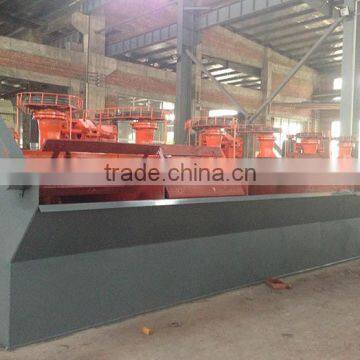

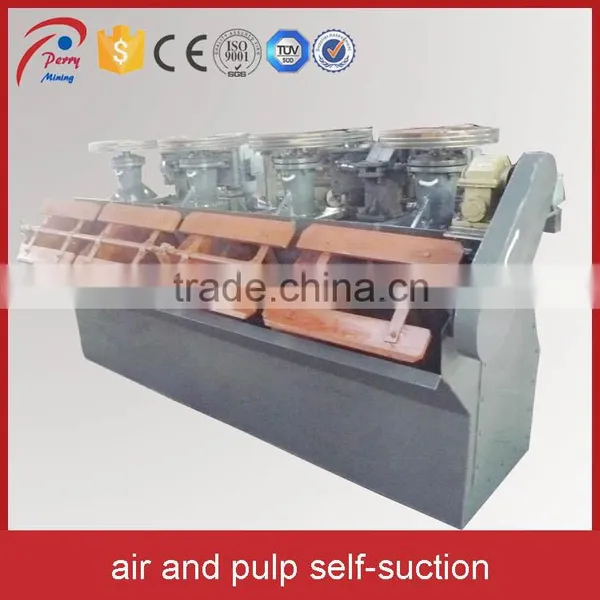

SF Stirring Gold Froth Flotation
The SF series flotation machine is the mechanical stirring flotation which is self-suction of air and pulp. It is applicable for beneficiation of various of non-ferrous metals, ferrous metals, and non-metallic minerals, particularly for the gold mining.
It has the following advantages:
- Large air-suction capacity, but lower energy consumption
- Be able to self-suction of air and pulp; Horizontal configuration which does not need the foam pump
- Impeller with lower circumferential speed; wear parts with longer service life;larger gap between impeller and cover, which has little influence to the air-suction capacity.
- The pulp in tank double circulates up and down in a fixed flowing way, which is good for the suspension of coarse ores.

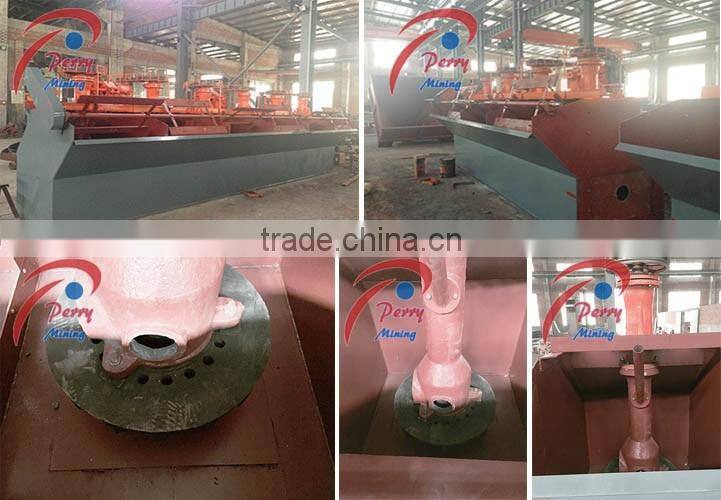

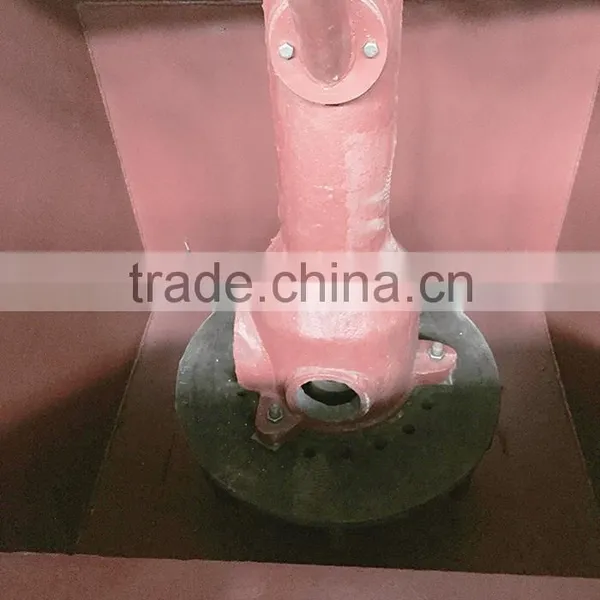

Structure of Gold Froth Flotation
1. Belt wheel 2. Motor 3. Tank 4. Tailing port 5. Scraper 6. Main shaft 7. Impeller
Technical Specification of Gold Froth Flotation
Model |
Impeller Dia.(mm) |
Impeller Rotation Speed (r/min) |
Capacity (m3/min) |
Main Motor |
Scraper Motor |
Size L× W× H |
||
Model |
Power (kw) |
Model |
Power |
|||||
SF0.15 |
200 |
536 |
0.06-0.18 |
Y100-6 |
1.5 |
Y80L-4 |
0.55 |
500×500× 600 |
SF0.37 |
296 |
386 |
0.2-0.4 |
Y90L-4 |
1.5 |
Y80L-4 |
0.55 |
700×700× 750 |
SF-1.2 |
450 |
312 |
0.6-1.2 |
Y32M-6 |
5.5 |
90S-4 |
1.1 |
1100×1100× 1100 |
SF-2.8 |
550 |
268 |
1.5-3.5 |
Y180L-6 |
11 |
Y100L6 |
1.5 |
1700×1600× 1150 |
SF-4 |
650 |
220 |
2-4 |
Y200L-8 |
15 |
Y100L6 |
1.5 |
1850×2050× 1200 |
SF-8 |
760 |
191 |
4-8 |
Y250M8 |
30 |
Y100L6 |
1.5 |
2200×2900× 1400 |
SF-10 |
760 |
191 |
5-10 |
Y250M8 |
30 |
Y100L6 |
1.5 |
2200×2900× 1700 |

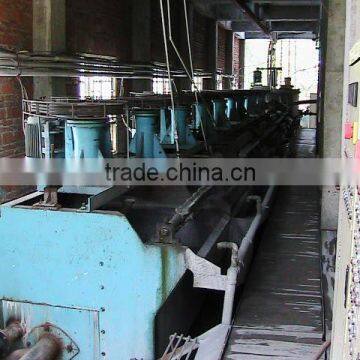

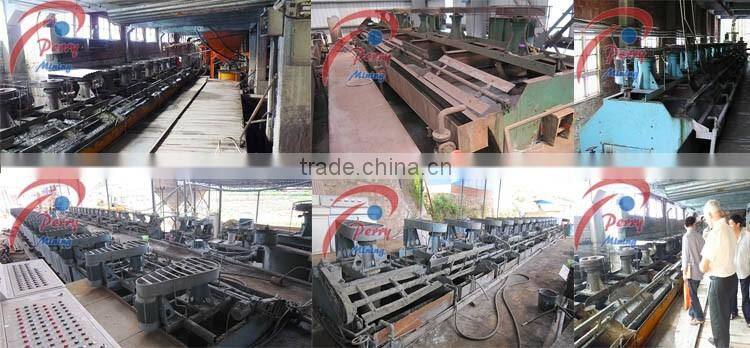

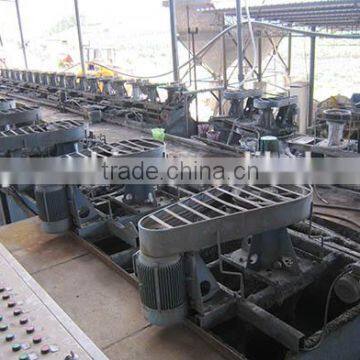

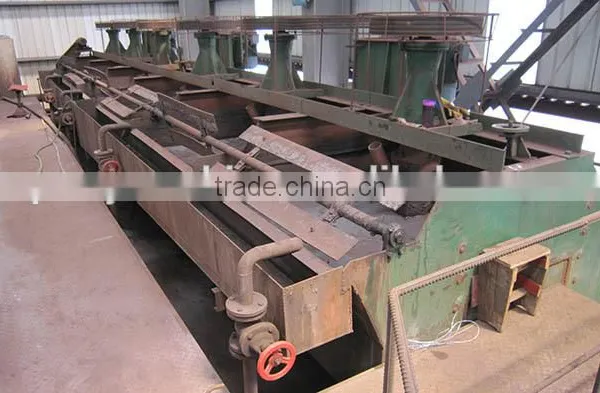

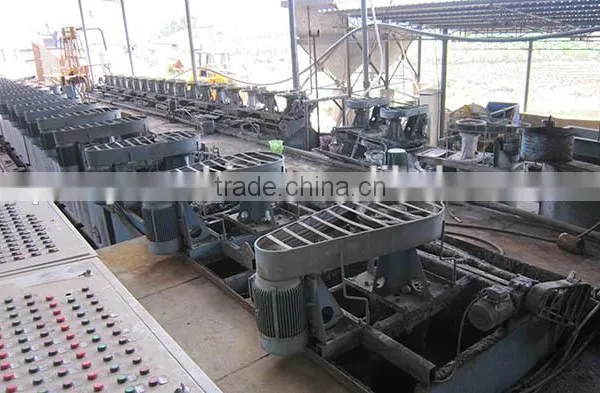

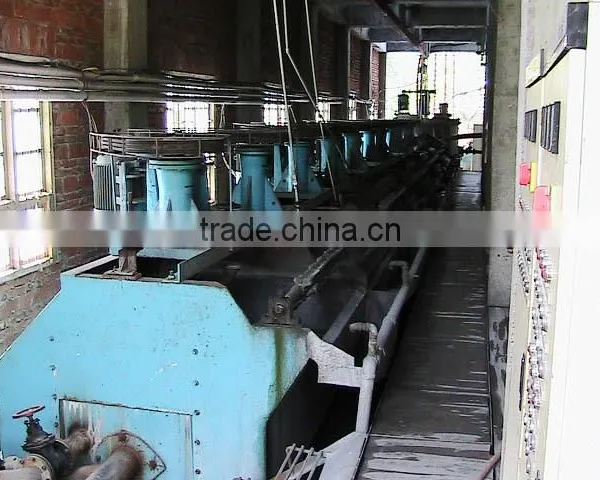

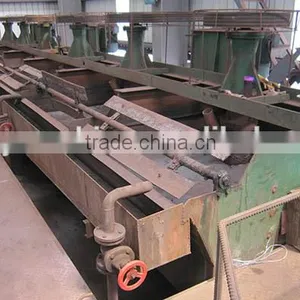

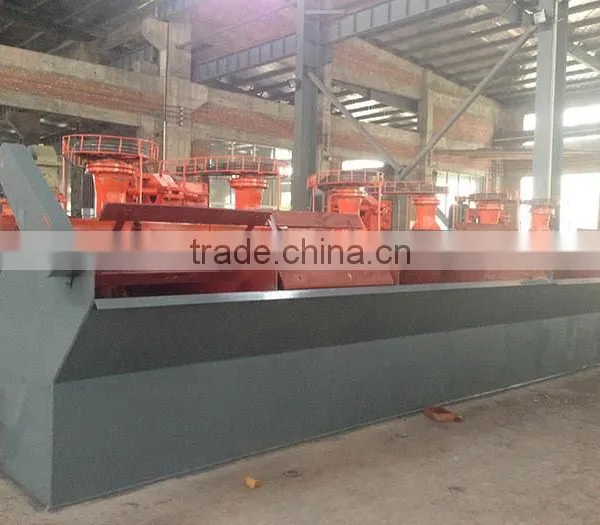

Successful cases of Gold Froth Flotation
Other types flotation machine available
There are also the laboratory type flotation machine available. 39L flotation machine is suitable for very small scale process, while the XFD series is suitable for laboratory testing.

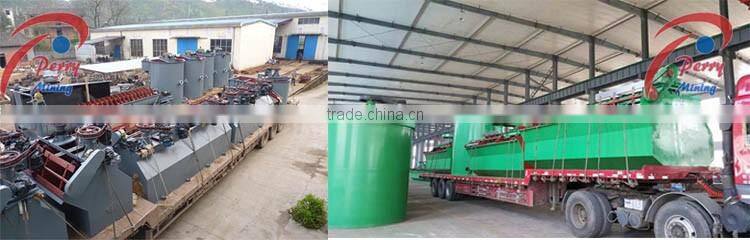

FCL shipment:
The main machines are loaded and fixed in container, while the spare parts are packed in wooden boxes.
LCL shipment:
The machines are usually packed in steel frame with plywood.
Gold Froth Flotation Gold Froth Flotation Gold Froth Flotation
Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!
Gold Froth Flotation Gold Froth Flotation Gold Froth Flotation
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
|
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Gold Froth Flotation Gold Froth Flotation Gold Froth Flotation
Name: Helen Huang |
|
| E-mail: helen@ | |
Mobile: 0086-15879777833 | |
Skype: sabrina88196 |
Gold Froth Flotation Gold Froth Flotation Gold Froth Flotation
1. Are you a trade company or a manufacturer?
A: We are an ISO9001:2008 and CE verified manufacturer specialized in various kinds of mining equipment as well as mining technology. OEM & ODM service are available.
2. What is your delivery time?
A: The delivery time is about 7-20 days after receipt of payment.
3. What is the payment terms?
A: The payment term is 45% payment in advance, 55% balance before shipment.
4. Why choose you as supplier?
A: 1). High quality & most competitive price
We are a factory who could provide the lowest price to you.
We are top 3 and with more than 20 years experiences in mining equipment.
2). Fast delivery--Goods will be shipped within 7 - 30 days based on order quantity.
3). Best service--Overseas customers can enjoy 24/7 after-sale service and dispatching service
4). 3D & CAD flow chart design
