Hammer Mill Rock Crusher

Hammer Mill Rock Crusher photo-1

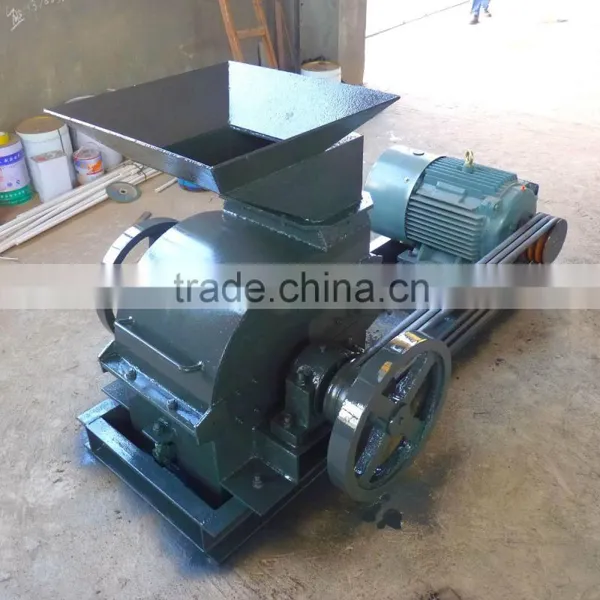

Hammer Mill Rock Crusher photo-2

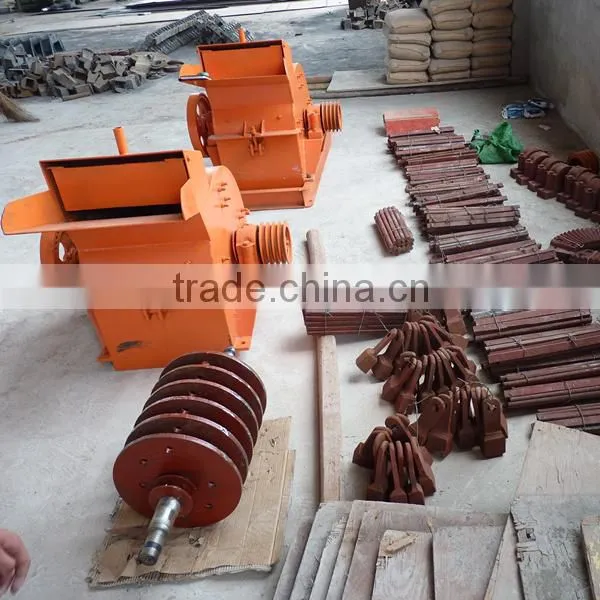

Hammer Mill Rock Crusher photo-3

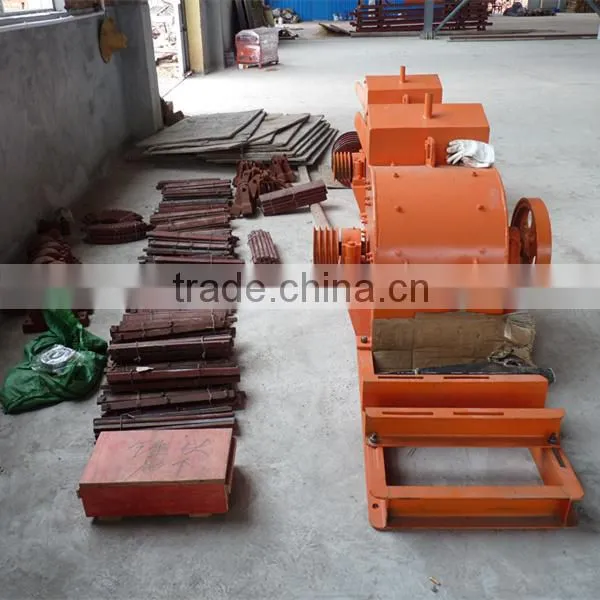

Hammer Mill Rock Crusher photo-4
Hammer Mill Rock Crusher photo-5
Hammer Mill Rock Crusher photo-6
US$ 1,200 - 4,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hammer Crusher, Stationary / mobile type Hammer Mill Rock Crusher
Application:
Mining, Ores, Stone
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Guangzhou/Shenzhen/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Hammer Crusher, Stationary / mobile type Hammer Mill Rock Crusher
Application Mining, Ores, Stone
Motor Type AC Motor
Power(W) 18.5kw
Capacity(t/h) 5-10t/h
Place of Origin Jiangxi, China
Brand Name Perry's Hammer Mill Rock Crusher
Model Number 400*600 Hammer Mill Rock Crusher
Dimension(L*W*H) 2400*1000*1200mm
Weight 800kg
Certification CE; ISO9001:2008
Warranty One Year Excluding Wearing Parts
After-sales Service Provided Engineers available to service machinery overseas

Hammer Mill Rock Crusher



Product Description



  Product Description Hammer Mill Rock Crusher



Crushing by the collisions between high-speed hammers and materials, the Hammer Mill Rock Crusher were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.

Hammer Mill Rock Crusher, Hammer Mill Rock Crusher Hammer Mill Rock Crusher

The Hammer Mill Rock Crusher is widely applied in small and medium mining process because of its low cost and good efficiency.



Specification of Hammer Mill Rock Crusher
Model Capacity (t/h) Feed size (mm) Output size (mm) Engine power
Motor (kw) Diesel engine (HP)
200*500 1-2 ≤50  0.1-3  15-18  24
300*500 3-6 ≤50  0.1-5  18-22  30
400*600 5-10 ≤50  0.1-12  25-30  45





Working principle of Hammer Mill Rock Crusher



1. Material is fed into the mill’s chamber typically by gravity.  Hammer Mill Rock Crusher

2. The material is struck by ganged hammers which are attached to a shaft which rotates at a high speed inside the chamber. The materials are crushed or shattered by the repeated hammer impacts, collisions with the walls of the grinding chamber as well as particle on particle impacts.  Hammer Mill Rock Crusher

3. Perforated metal screens, or bar grates covering the discharge opening of the mill retaining coarse materials for further grinding while allowing qualified sized materials to pass through as finished product.  Hammer Mill Rock Crusher



Structure of Hammer Mill Rock Crusher



The Hammer Mill Rock Crusher is mainly consist of frame, rotor, hammers, and other parts:

Hammer Mill Rock Crusher





Different engine of Hammer Mill Rock Crusher

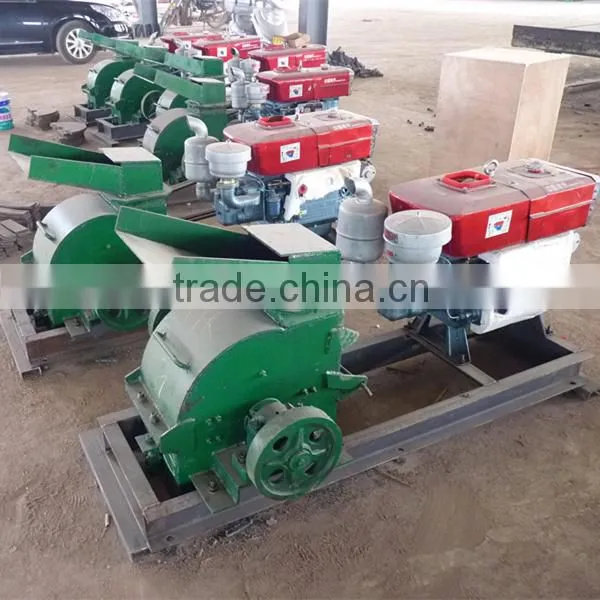

There are Hammer Mill Rock Crusher with elec motor and Hammer Mill Rock Crusher with diesel engine for option. If there is not electricity supply, the diesel engine is a good choice!



Hammer Mill Rock Crusher

Hammer Mill Rock Crusher with elec motor Hammer Mill Rock Crusher with diesel engine

Hammer Mill Rock Crusher,  Hammer Mill Rock Crusher



  Detailed Image Hammer Mill Rock Crusher



Hammer Mill Rock Crusher

Part name: Hammer



Brand: Perry



Origin: China

Hammer Mill Rock Crusher

High chrome hammer which is more wear resistant than manganese hammers

It saves your investment in long-term.

Hammer Mill Rock Crusher

Part name: Rotary drum & main shaft



Brand: Perry



Origin: China

Hammer Mill Rock Crusher

One of the most important part of Hammer Mill Rock Crusher.

It is where the hammers located.

Hammer Mill Rock Crusher



Hammer Mill Rock Crusher Hammer Mill Rock Crusher

Hammer Mill Rock Crusher
Hammer Mill Rock Crusher

Part name: Guard liner



Brand: Perry



Origin: China

Hammer Mill Rock Crusher

The crushing cavity is linded with the liners so as to protect the hammer crusher.



It is replacable. Suggest to order some for replacement when ordering the crusher.


Part name: Screen bar



Brand: Perry



Origin: China



Hammer Mill Rock Crusher

The screen sieve is made of by numbers of screen bars. The sieve opening is adjustable as request.

Hammer Mill Rock Crusher

Hammer Mill Rock Crusher

Hammer Mill Rock Crusher



Packaging & Shipping



Hammer Mill Rock Crusher

LCL

The Hammer Mill Rock Crusher is packed in steel frame innerly and plywood outside.

FCL

The Hammer Mill Rock Crusher is firmed in the container, and spare parts are packed  in wooden boxes.



Our Services

 Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!

Hammer Mill Rock Crusher

Company Information



Hammer Mill Rock Crusher

Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.



Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on.
