Semiautomatic Square Bottom Bag Maker

Semiautomatic Square Bottom Bag Maker photo-1
Semiautomatic Square Bottom Bag Maker photo-2
Semiautomatic Square Bottom Bag Maker photo-3
Semiautomatic Square Bottom Bag Maker photo-4
Semiautomatic Square Bottom Bag Maker photo-5
Semiautomatic Square Bottom Bag Maker photo-6
US$ 22,000 - 36,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Bag Forming Machine
Bag Type:
Other, square bottom bag
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Machine Type Bag Forming Machine
Bag Type Other, square bottom bag
Material Plastic
Computerized Yes
Place of Origin Zhejiang, China
Brand Name RXSF
Model Number 800
Voltage 380V/220V 50HZ
Power(W) 1.5KW
Dimension(L*W*H) 7.5*1.5*1.8 M
Weight 2500kg
Certification CE Certificate
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Semiautomatic square bottom bag maker
Semiautomatic square bottom bag making machine
Semiautomatic square bottom bag making machine can produce a variety of square bottom bags, widely used in food packaging bags, carton liners, and trash bags. We have advanced technology, automatic control, feeding - eliminate static electricity - sealing - point cutting - collection of lines forming.



Product Description





1. Main Technical Parameters


A. Model

800

1000

B. Max bag width (mm)

750

950

C. Max bag length (mm)

2000

2000

D. Thickness of film (mm)

0.008-0.15

0.008-0.15

E. Bag making speed (pic/min)

30-60

30-60

F. Total power (kw)

1.5

2

G. Total weight (kg)

2500

2800

H. Overall dimension (M)

7.5*1.5*1.8

8.5*1.8*1.8



2. Comprehensive Description

Automatic roll-to-roll rope wearing bag making machine is a high degree of automation machinery. In one process, complete the drilling, rope wearing, sealing, point cutting and rewinding.
Rope wearing plastic bag is mainly used for garbage bags, to meet the closure requirements, widely using in hospitals, hotels and classify recycling center.


3. Product Features

(1) Computer control, photoelectric eye tracking, fault alarm and automatically shut down
(2) Built-static elimination device, thermostatically controlled hot sealing
(3) Heat sealing synchronization point cutting by photoelectric
(4) Automatic counting can be set. automatic shutdown when reaches the set
(5) Multifunction bag making machine, can produce different specifications of square bottom bags


4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.
2. We provide customized manufacture according to customer demand.
3. Manufactured in accordance with European CE safety standards.

A.

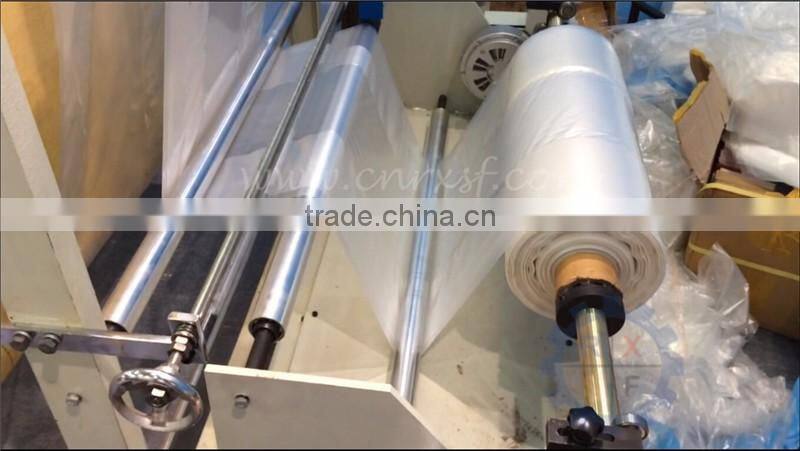

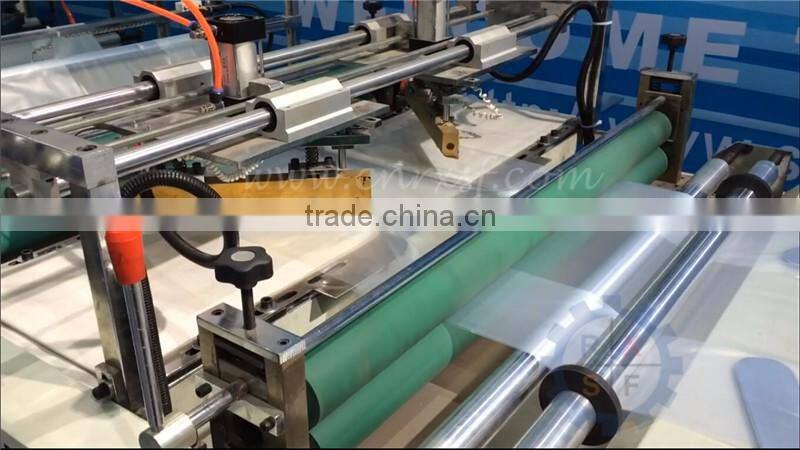

Unwinding part adopts DC motor transmission, magnetic powder control, photoelectric eye tracking to ensure accurate positioning:

Semiautomatic square bottom bag maker

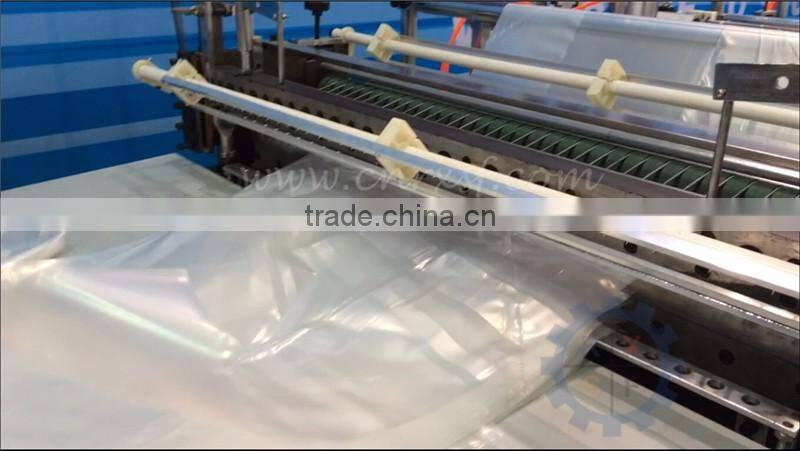

B. Both sides insert edge correction, automatic thermostat  hot sealing knife
:

Semiautomatic square bottom bag maker

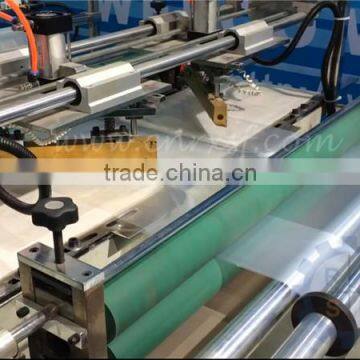

C. Point cutting synchronization heat sealing by photoelectric
:

Semiautomatic square bottom bag maker

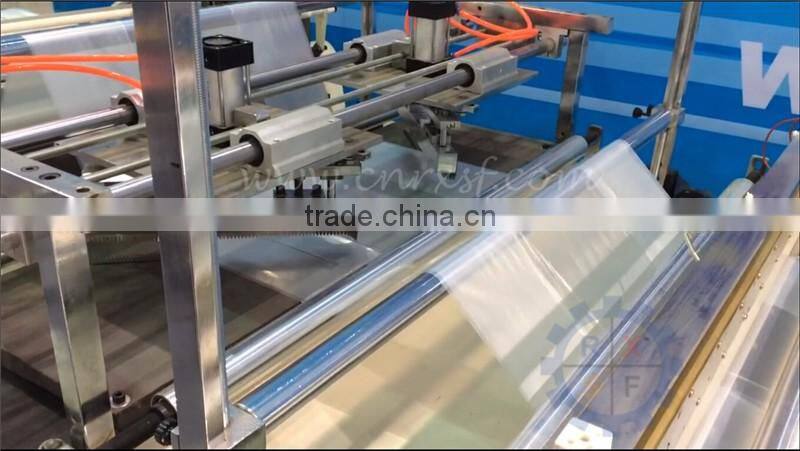

D. Cross-cutting tracking and recognition by the cursor,sending by stepper motor
:

Semiautomatic square bottom bag maker

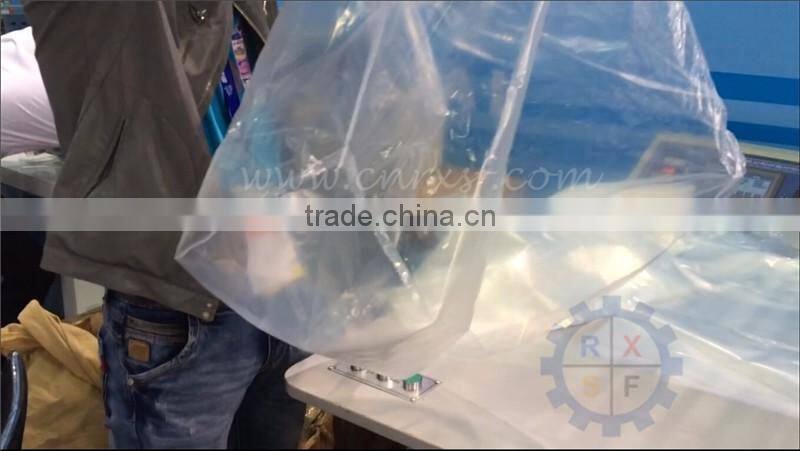

E. Site manufactured square bottom bags in Chinaplas (semi-automatic type, need to manually tear waste angle)
:

Semiautomatic square bottom bag maker

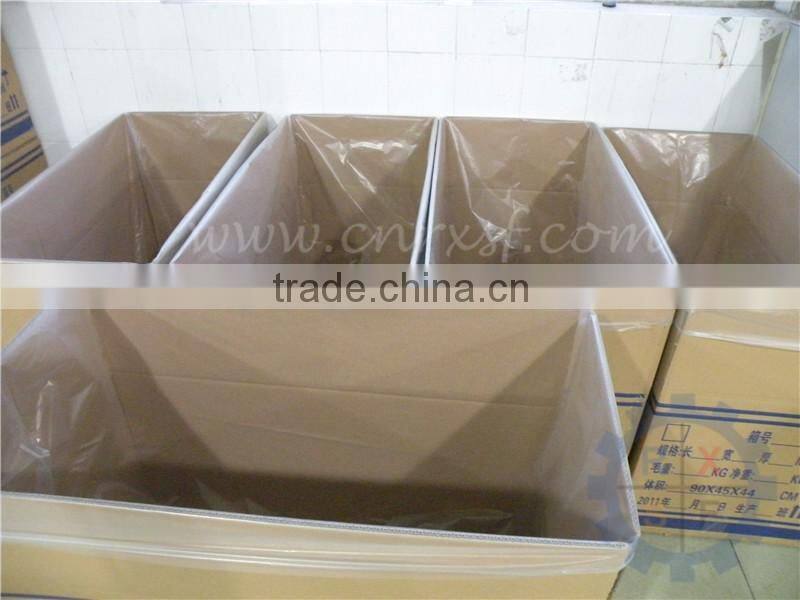

F. Good quality square bottom bags from our customer‘s workshop:

Semiautomatic square bottom bag maker

Click this link to see the running video: https://youtu.be/3JjP_NHVk_4

Packaging & Shipping




5. Packaging and shipping

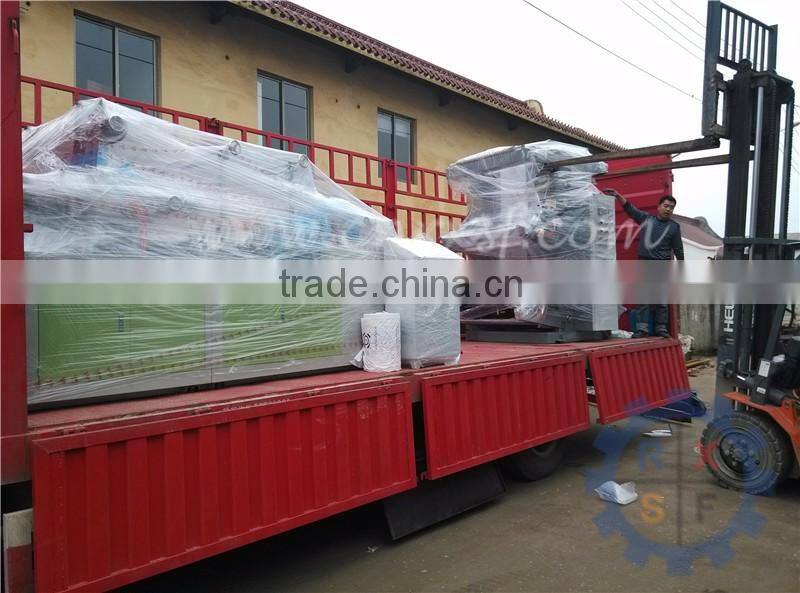

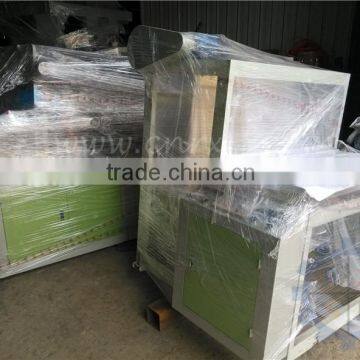

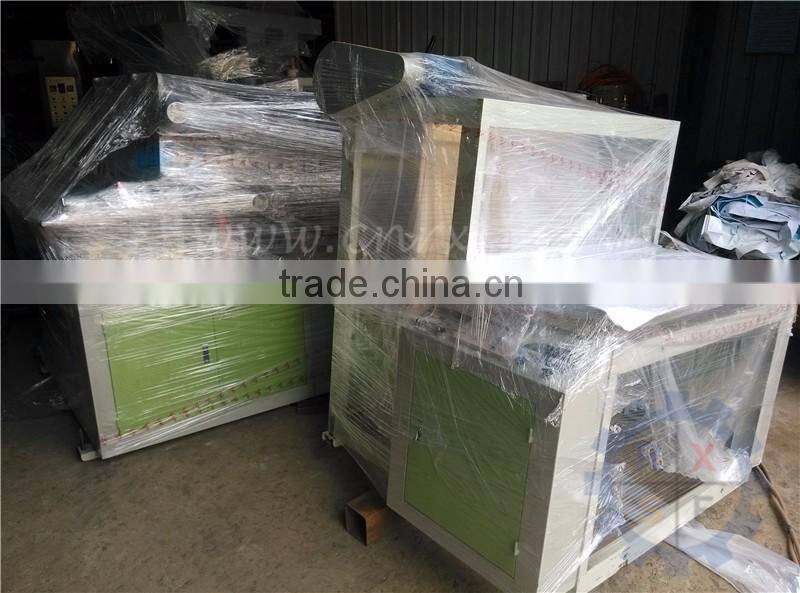

A. Long machine will be split into several independent units, easy to install again:

Semiautomatic square bottom bag maker

B. Stable fixed through the foam and steel wire:

Semiautomatic square bottom bag maker

C. With special toolbox and the wearing parts
:

Semiautomatic square bottom bag maker
Our Services





6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.
(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.
(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.
(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.
(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.
(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.
(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.
(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;
B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:

Semiautomatic square bottom bag maker
