Melamine board cutting machine panel saw
MJ6132TY Precise panel saw
Introduction:
1) The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise
2) Spindle with special treatment of high-precision CNC center, with Japan imported NACHI high-speed bearings, make the spindle more table and improves the utilization ratio of saw blade

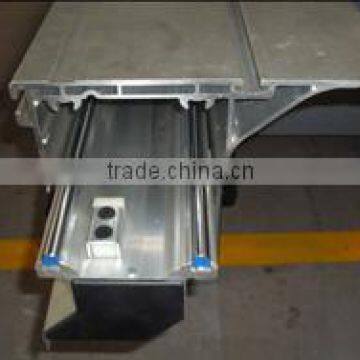

3) Made of high strength extruded aluminum alloy, movable table is high strength and won’t bend.
Specification
Length of sliding table |
3200mm |
Max cutting length |
3200mm |
Width of sliding table |
375mm |
Width of cut between saw blade and rip fence |
1250mm |
Cast Iron Table |
1000*570mm |
Auxiliary Table 1 |
745*545mm |
Auxiliary Table 2 |
745*755mm |
Tilting saw blade |
45-90degree |
Max. Cutting Height(90º) |
80mm |
Main Spindle Diameter |
30mm |
Main Saw Diameter |
300mm |
Main Saw Speed(r.p.m) |
4000/6000 |
Main Saw Motor Power |
5.5kw |
Scoring Spindle Diameter |
20mm |
Scoring Saw Diameter |
120mm |
Scoring Saw Speed(r.p.m) |
8000 |
Scoring Saw Motor Power |
1.1kw |
Gross Weight |
780kgs |

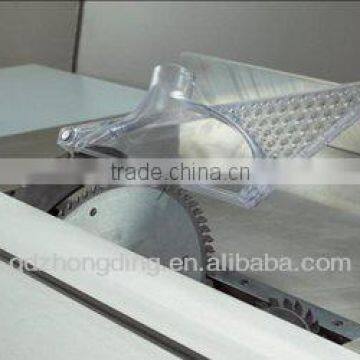

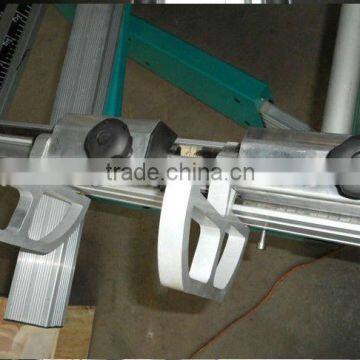

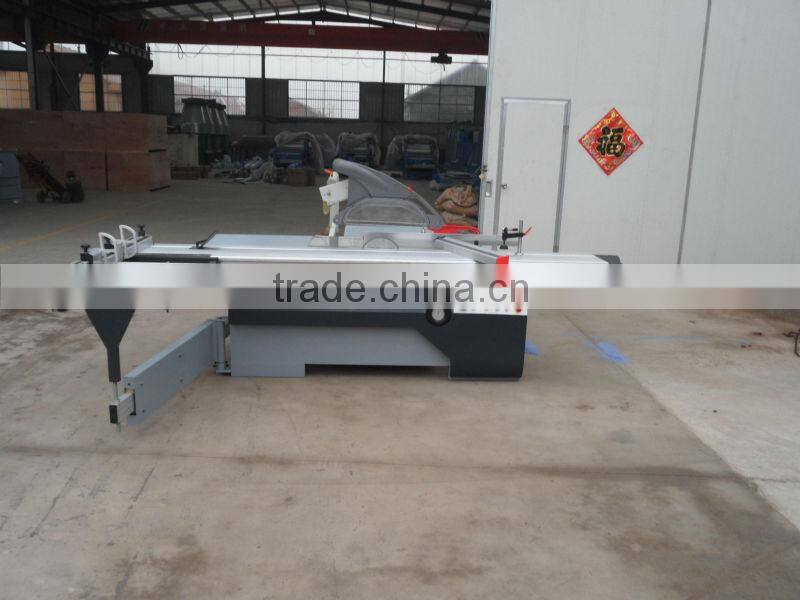

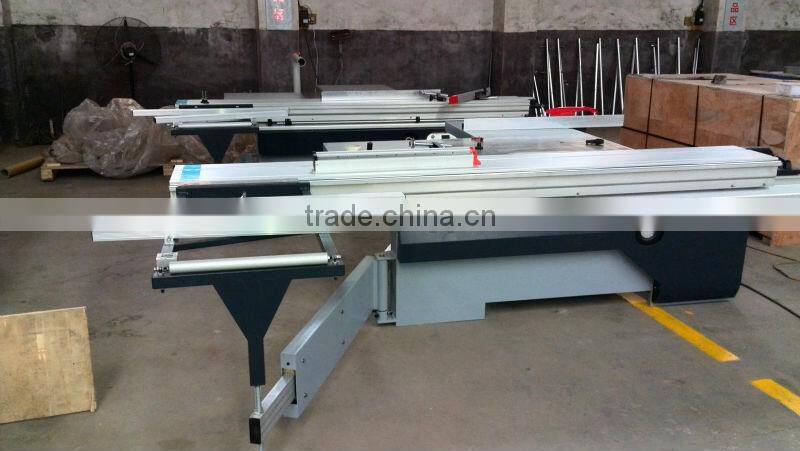

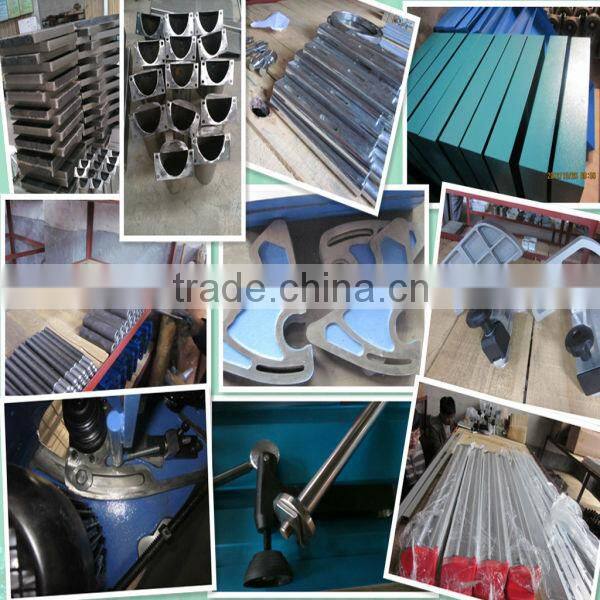

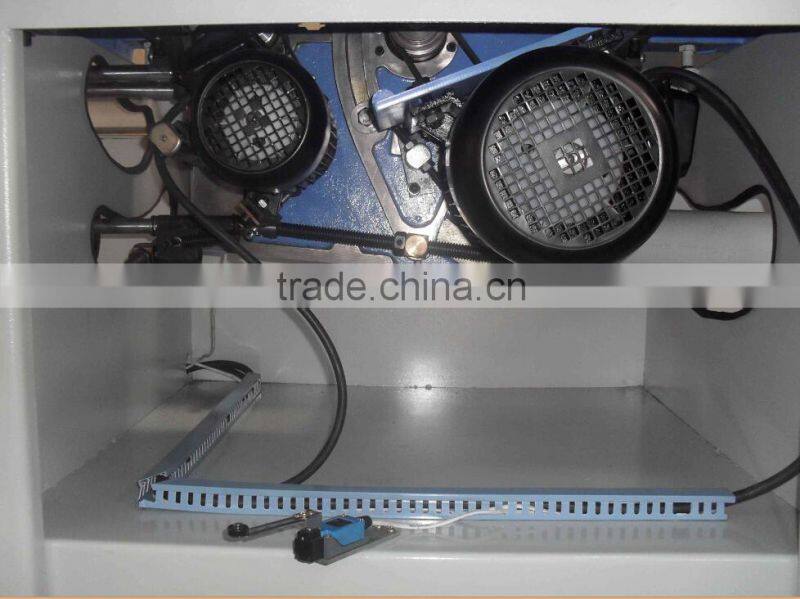

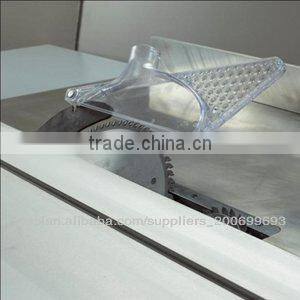

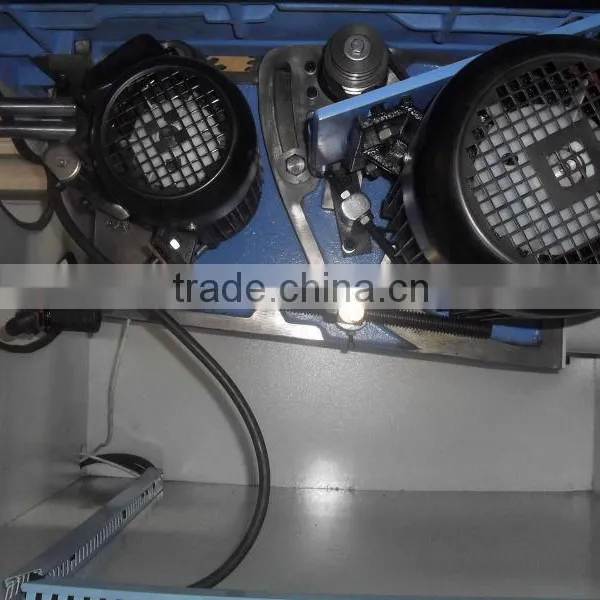

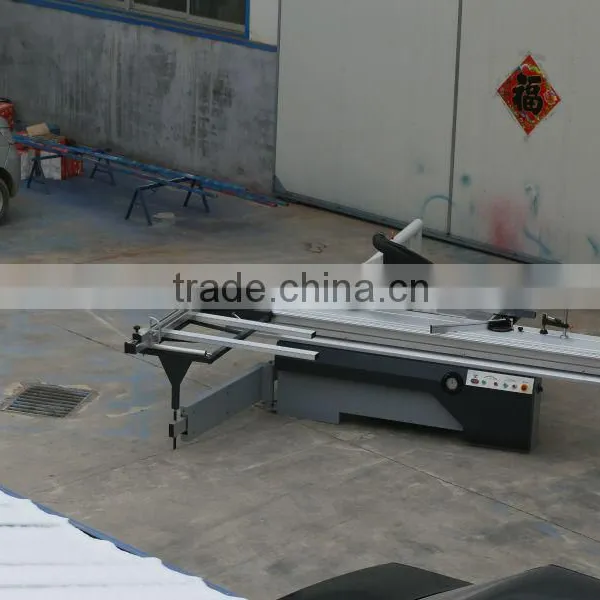

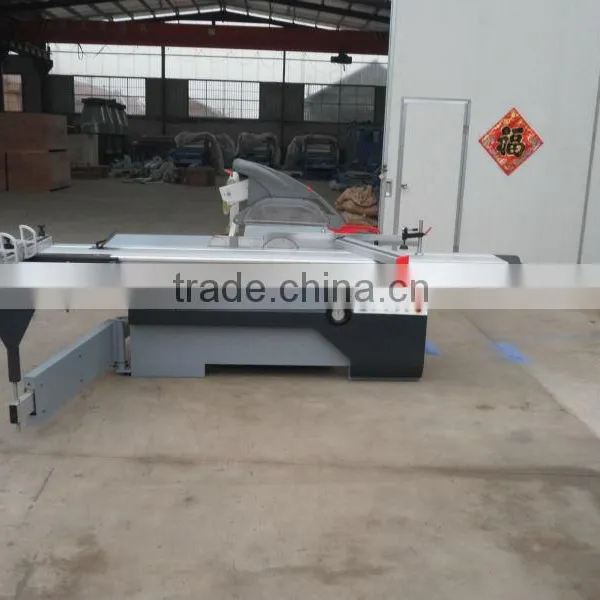

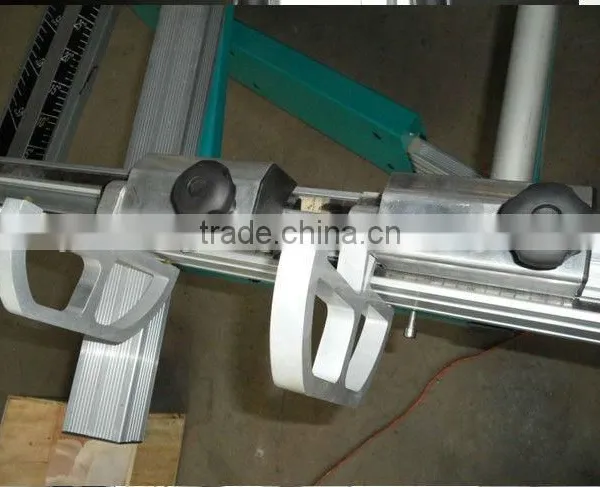

Machine Picture:

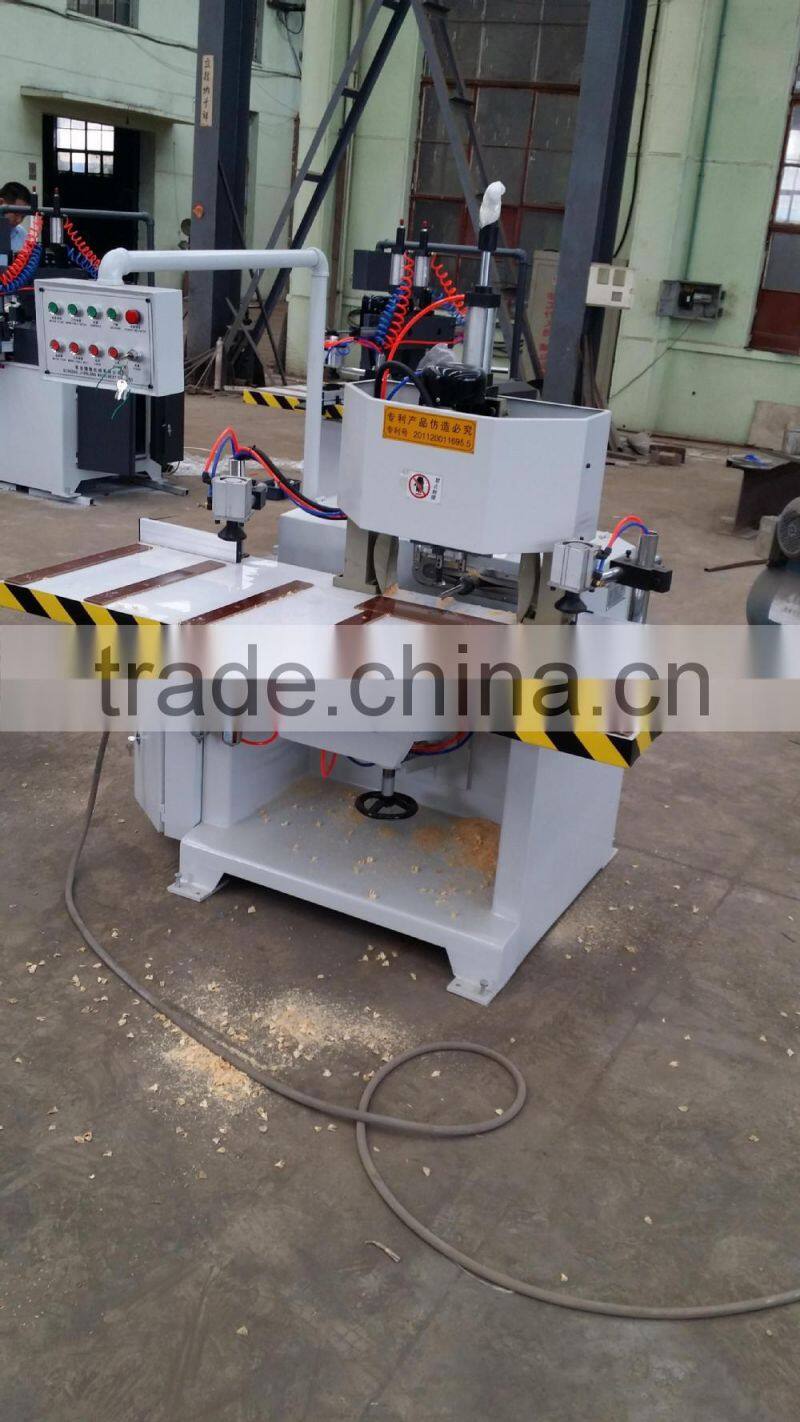

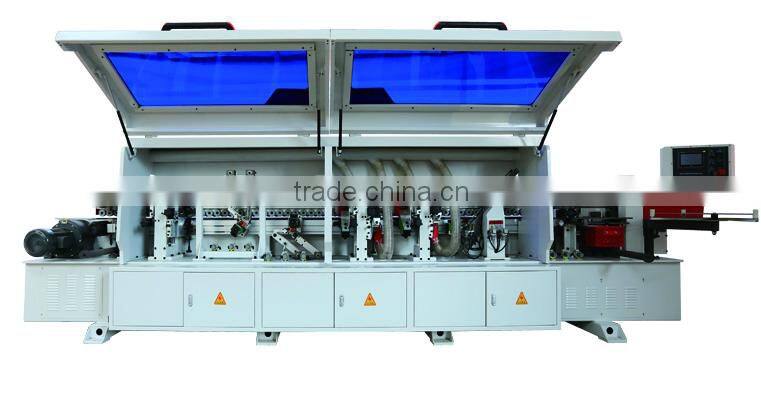

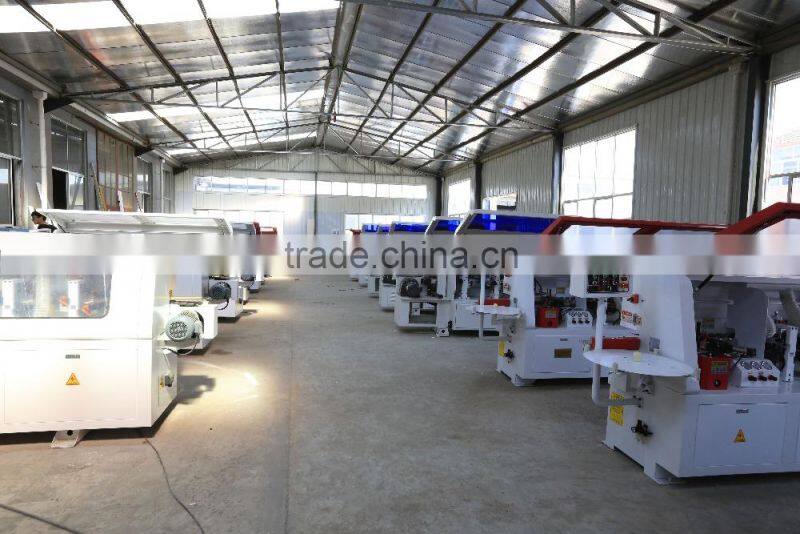

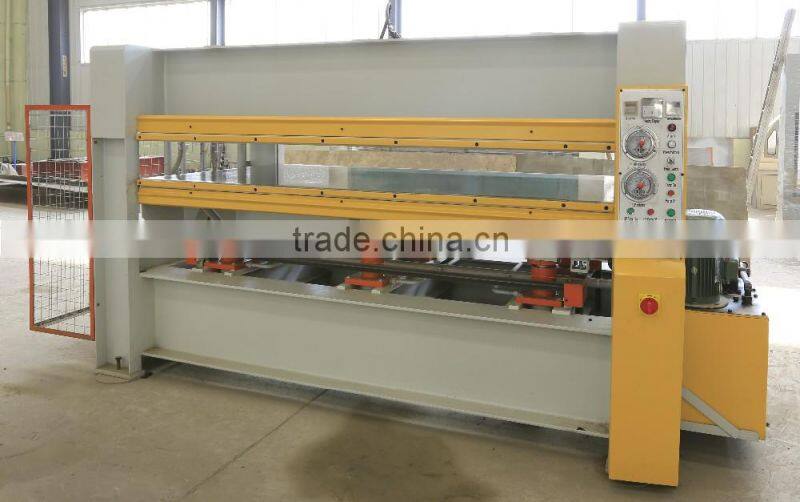

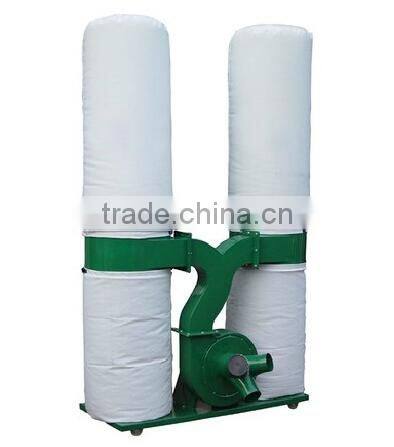

Other woodworking machine:

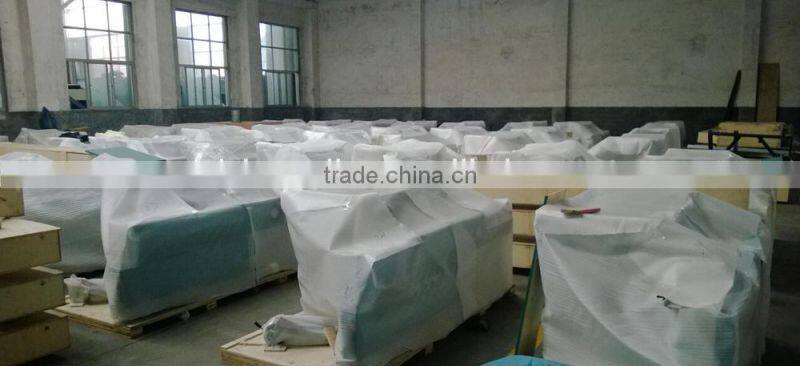

package: plywood box
shipping: both LCL container and full container are ok
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients’ special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
Company Introduction:
Our products are mainly included Precise panel saw, R series Edge Banding Machine, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. We have established complete sales system. Our company takes the principle of quality frist and customer foremost, and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.

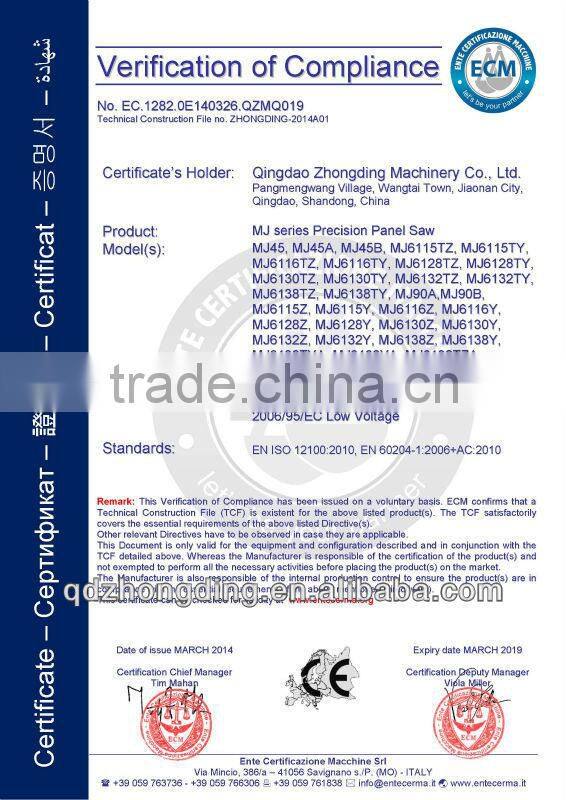

Certificate: CE, ISO 9000
Delivery: 30 days
Warranty: 1 year
MOQ: 1 Set
Term of Payment: T/T, L/C,Western Union
If you have any question, please contact us, thanks.
Contact: Jane Cheng
skype: chengcheng198488
mobile:86-15966936501
