wood frame cutting machine Altendorf precise panel saw
MJ45B Altendorf Precise panel saw
Features:
1) The width of the sliding table is 415mm, which makes the cutting more convenient and perfect.
2) The saw blade can tilt from 0-45º. The main saw blade is lifted electrically. The tilting angle is adjusted manually, but the tilting angle is digital readout, which makes the cutting more précised.
3) The machine body is Altendorf structure to keep the stability.
4) The European big sliding table is with steel roller, double guides movable table, which is anti-abrasive, long service life and high-precision.
Specifications:
length of sliding table |
3200mm |
Width of sliding table |
415mm |
Max cutting length |
3200mm |
Saw blade diameter |
250-400mm |
Max cutting height 90º |
120mm |
Speed of main saw blade |
3000/4000/5000r.p.m |
Spindle diameter of main saw blade |
30mm |
Tilting saw blade |
0-45º |
Main saw motor |
5.5Kw(7.5HP) |
Scoring saw blade diameter |
120mm |
Speed of scoring saw blade |
8000r.p.m |
Spindle diameter of scoring saw |
120mm |
Scoring saw motor |
1.1Kw |
Net Weight |
1100Kgs |
Overall dimension |
3250*3150*900mm |

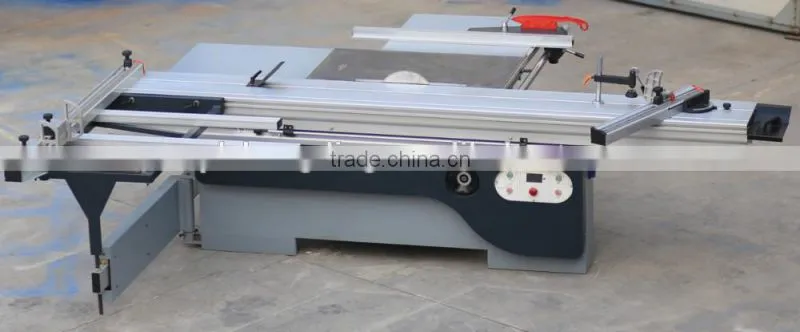

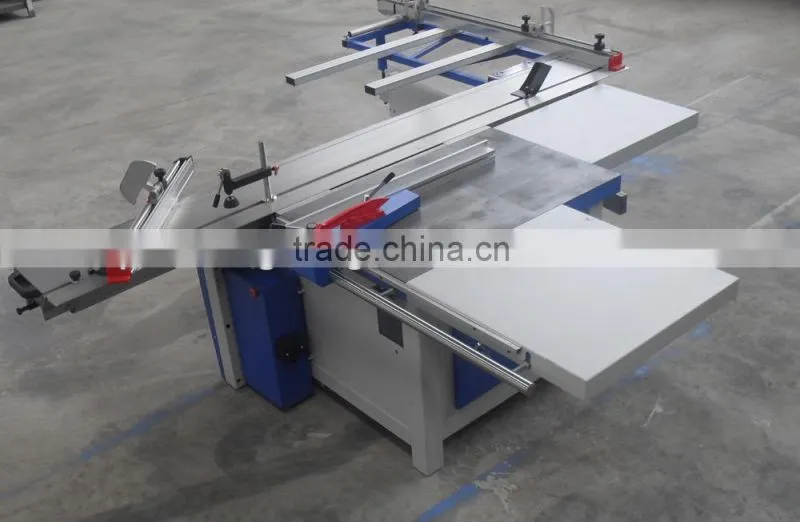

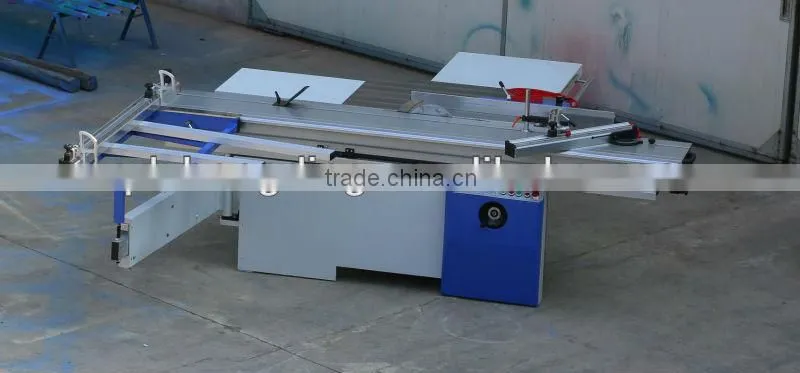

Machine pictures

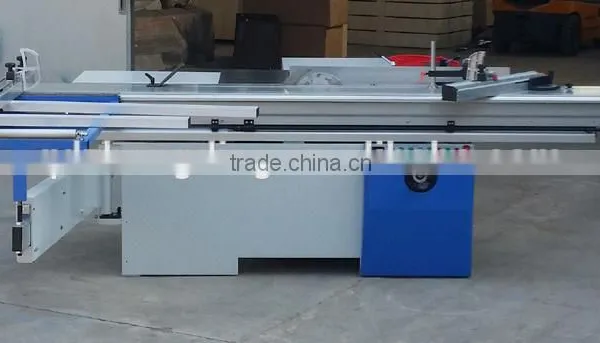

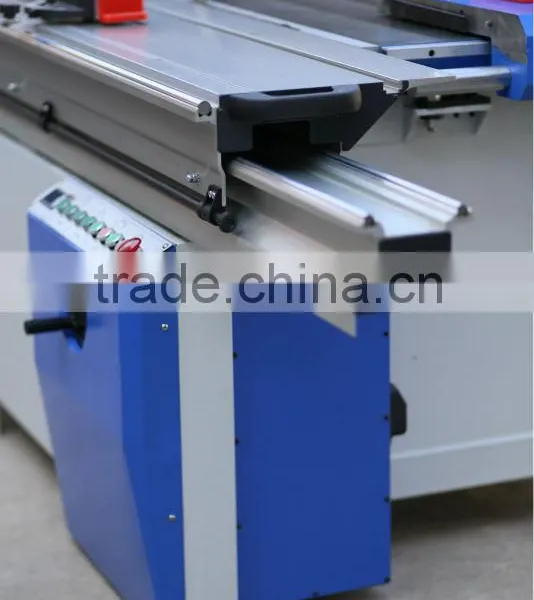

2) picture from side

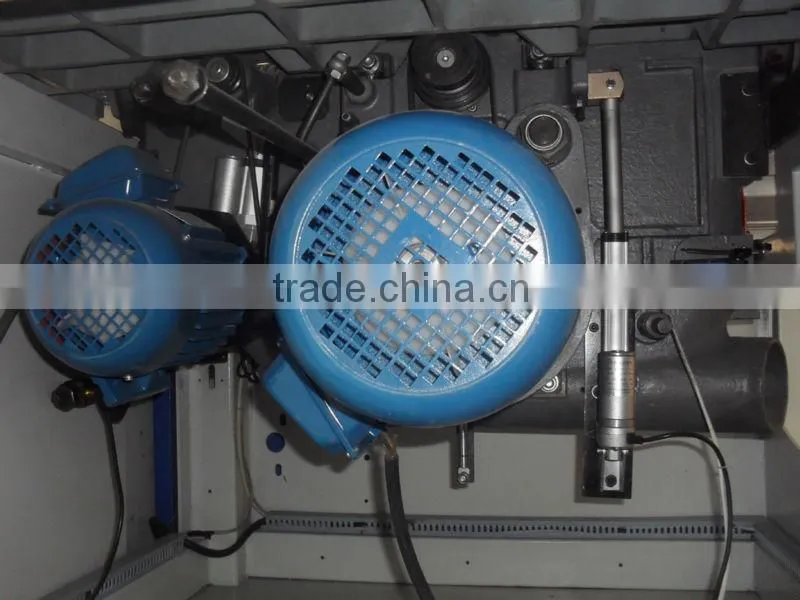

3) Inner Structure

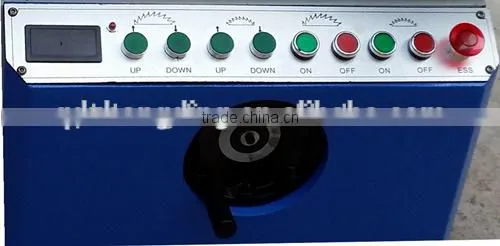

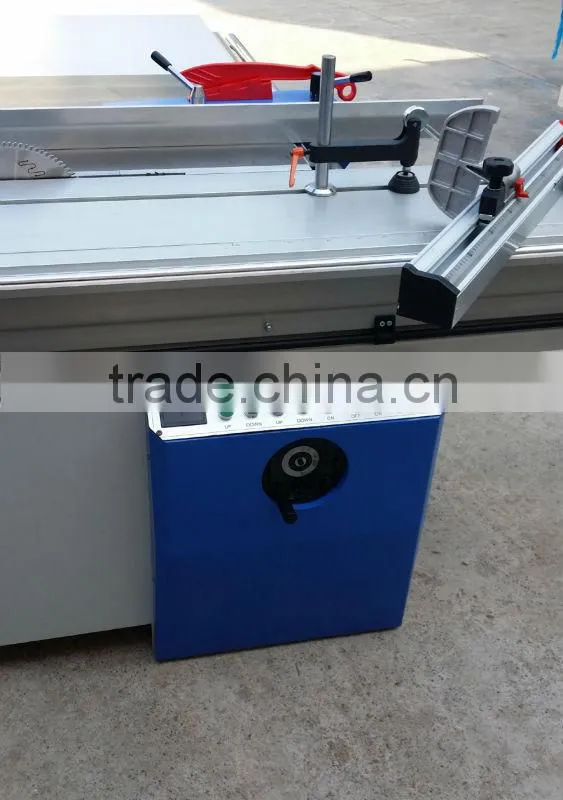

4) Control Panel

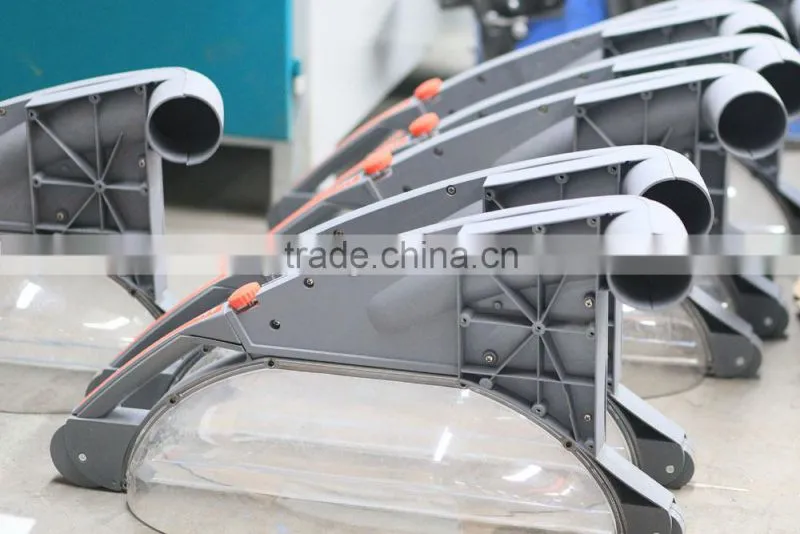

5) Big European Dust Hood

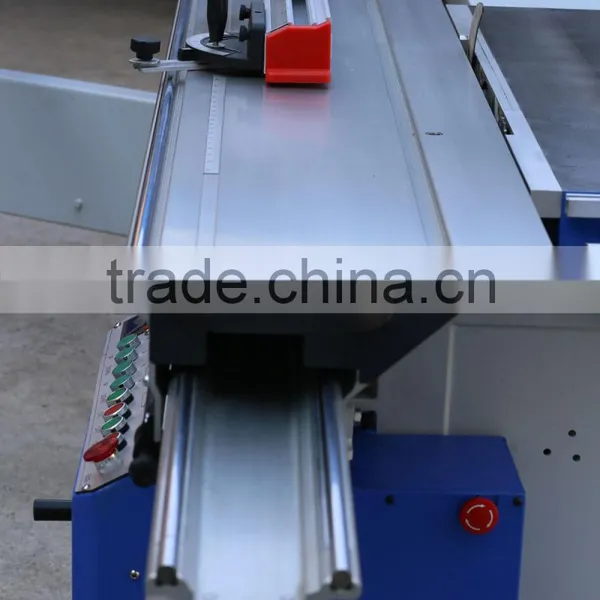

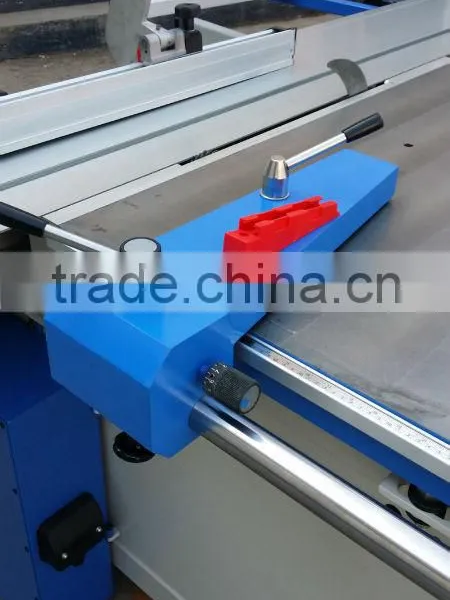

7) Big European sliding table
Other models of precise panel saw:
Package:plywood box
Company Introduction:
Our products are mainly included Precise panel saw, R series Edge Banding Machine, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. We have established complete sales system. Our company takes the principle of quality frist and customer foremost, and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Certificate: CE, ISO 9000
Delivery: 30 days
Warranty: 1 year
MOQ: 1 Set
Term of Payment: T/T, L/C,Western Union
