3200mm sliding table panel saw wood circular saw
SC3200 Sliding Table Saw
Features:
1) The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise
2) Spindle with special treatment of high-precision CNC center, with Japan imported NACHI high-speed bearings, make the spindle more table and improves the utilization ratio of saw blade
3) Made of high strength extruded aluminum alloy, movable table is high strength and won’t bend.
Specification:
Max cutting length |
3200mm |
Max cutting width |
1250mm |
Width of sliding table |
375mm(Option: 310-415mm) |
Cast Iron Table |
1000*570mm |
Auxiliary Table 1 |
745*545mm |
Auxiliary Table 2 |
745*755mm |
Tilting saw blade |
45-90degree |
Max. Cutting Height |
80mm |
Main Spindle Diameter |
30mm |
Main Saw Diameter |
300mm(Option:250-400mm) |
Main Saw Speed(r.p.m) |
4000/6000 |
Main Saw Motor Power |
5.5kw |
Scoring Spindle Diameter |
20mm |
Scoring Saw Diameter |
120mm |
Scoring Saw Speed(r.p.m) |
8000 |
Scoring Saw Motor Power |
1.1kw |
Weight |
750kgs |

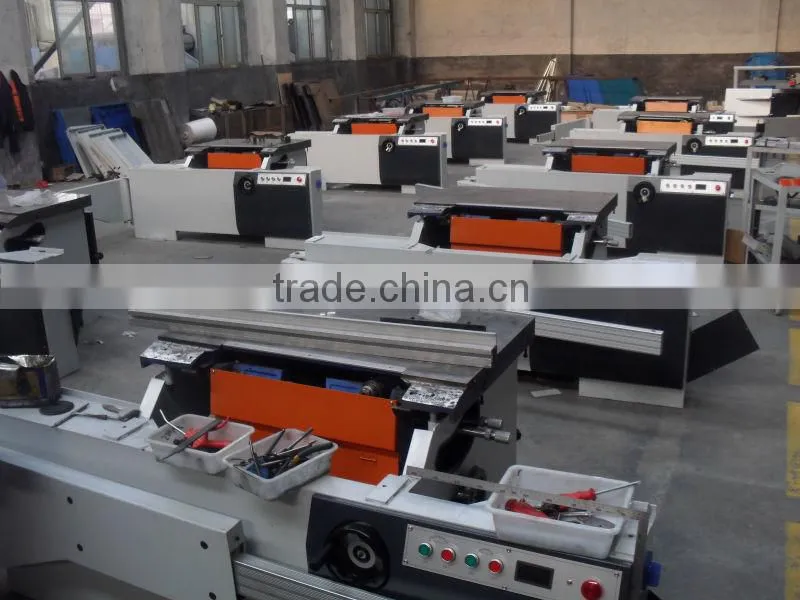

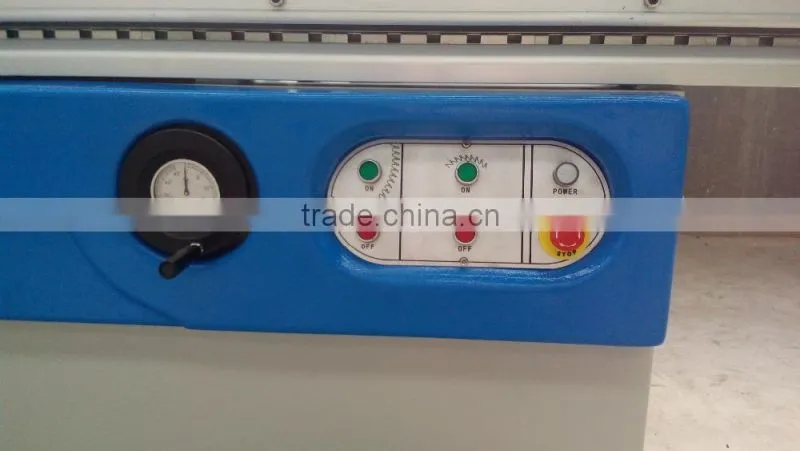

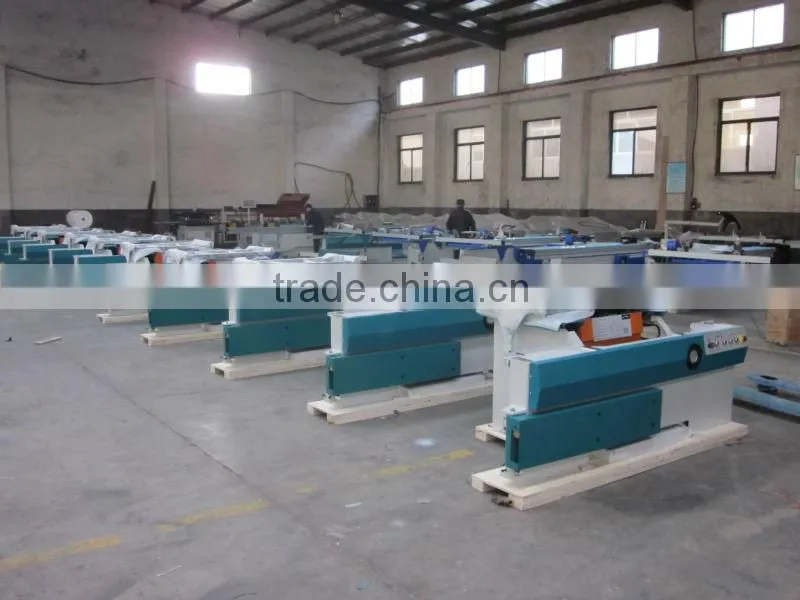

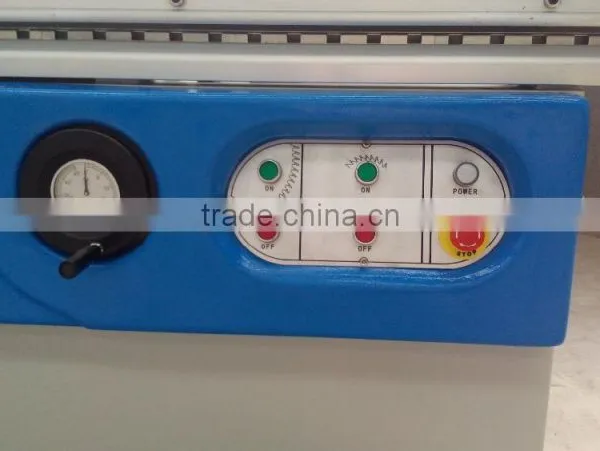

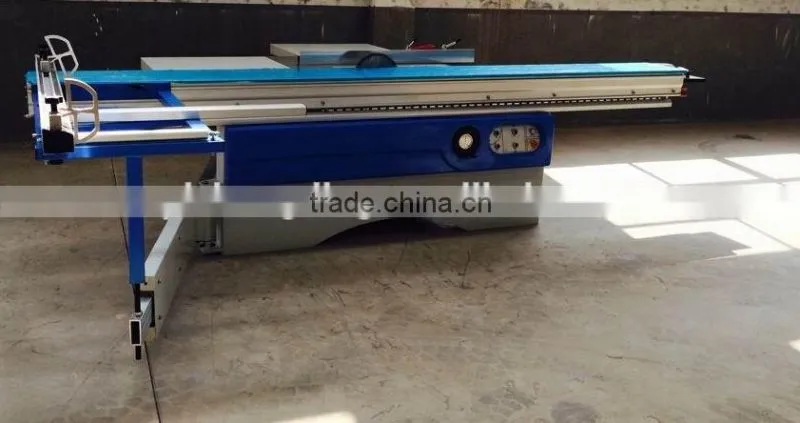

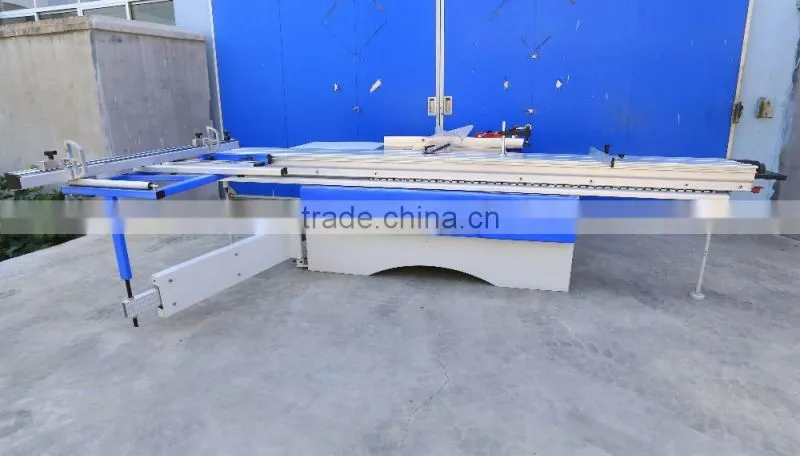

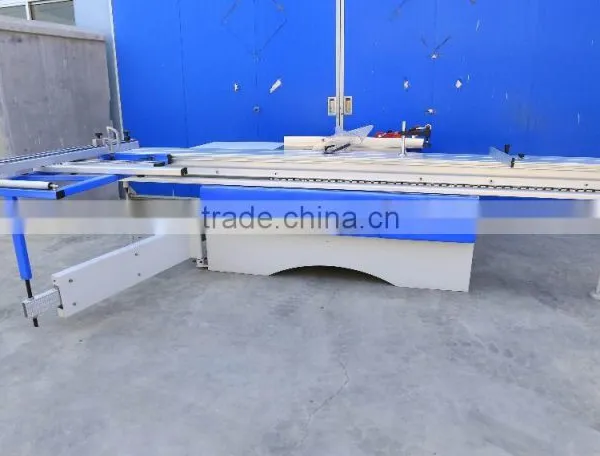

Machine Pictures:
CE Certificate:

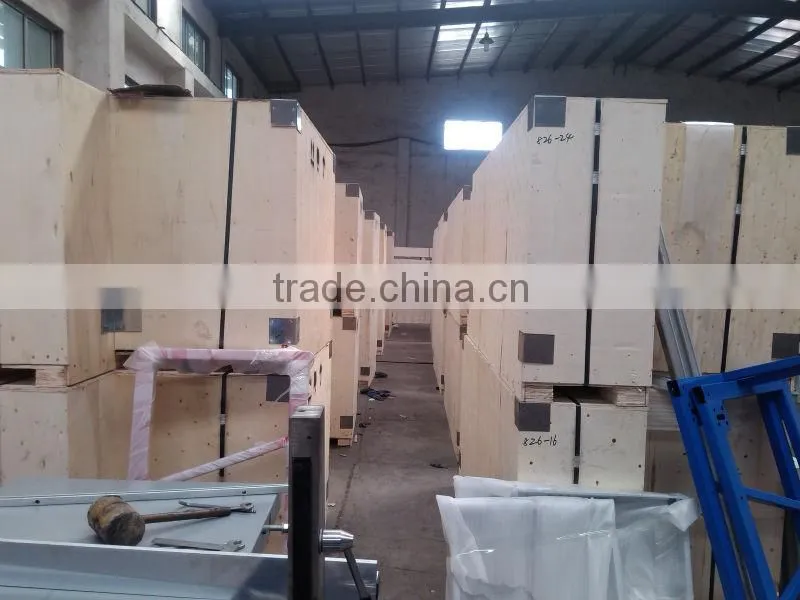

Package: plywood box
Qingdao Zhongding Machinery Co.,Ltd is a leading company of specializing in manufacturing and exporting woodworking machine.

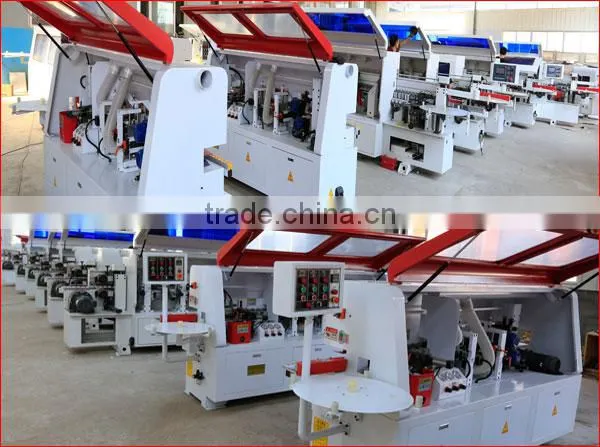

Our products are mainly included Precise panel saw, R series Edge Banding Machine, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia.
Delivery: 30 days
Warranty: 1 year
MOQ: 1 Set
Term of Payment: T/T, L/C,Western Union
For our automatic edge bander, if you have any question,please contact us, thanks.
Contact: Jane Cheng
skype: chengcheng198488
mobile:86-15966936501
